MODERNER QCJ 0.5m film impact test, to detect the impact resistance of coating film

The MODERNER QCJ 0.5m paint film impact test device is designed with reference to the GB/T1732-93 standard. Impact is formed on the sample paint film by using a heavy hammer falling from a specific height. The impact resistance of the paint film is determined by observing the damage of the paint film.
Model：
Certificate
Contact
Details SPEC OI
Similar products

Moderner QCJ Film impact testSPEC

Moderner QCJ Film impact testDetails

Moderner QCJ Film impact testPacking list

SKU
NB000636
Impact mode
Spherical Clash Top Shot
Impact height
0~100cm
Drop Weight Mass
1000g
Striker Diameter
Φ8mm
die base aperture
Φ15mm
Standards
GB/T 1732-1993
Dimensions
252*140*1340mm
Net Weight
14kg
QCJ
Film impact test

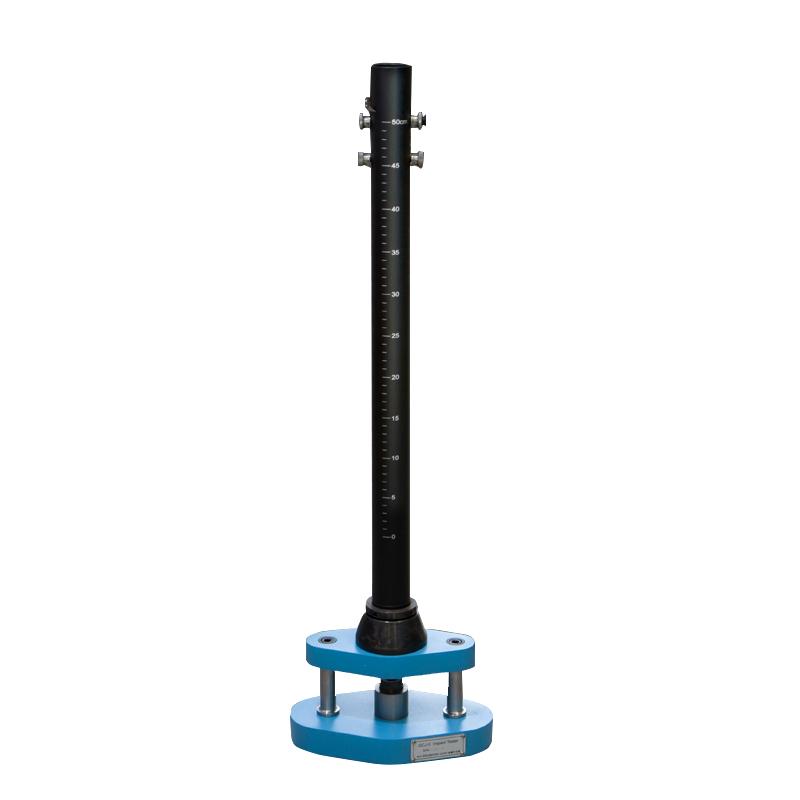

MODERNER QCJ 0.5m film impact test, to detect the impact resistance of coating film Picture

The QCJ-II paint film impact Tester is designed with reference to the GB/T1732-93 standard. It uses a heavy hammer to drop from a specific height to impact the sample paint film. The impact resistance of the paint film is measured by observing the damage of the paint film. The impact resistance of a paint film is expressed in terms of the maximum height (centimeter value) that does not cause damage to the paint film.

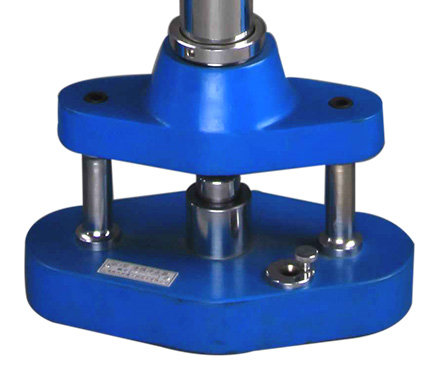

Detail image

Advantages of use

name Film impact Testerelastic impactorHeavy impact Tester
model QCJ-II(0.5m)QCJ-II-A(1m)TCJ-II (0.5m)ZJ
Impact method   Ball punchspherical drop impactBall punch
impact height  0～50cm0～100cm             0～100cm 0～40inch             0～100cm 0～40inch
Drop weight1kg1kg/2Lbs1kg/300g
additional quality-1kg/2Lbs1kg
Steel ball diameter    8mm20mm/15.9mm12.7mm/15.9mm
Mold base aperture     15mm27mm/16.3mm16.3mm/31.75mm
Dimensions  252×140×840mm252×140×1340mm300×300×1400mm300×240×1400mm
weight14kg19kg18kg
FAQ
QWe want a drop hammer instrument that meets the GB/T 20624.1-2006 standard. Is this one okay?
A Hello, it's OK.
QIs there any size regulation for the tinplate used in this impact meter?
A Can refer to GB/T 1732 provisions, size 50 * 120mm, Film thickness 0.3mm tinplate.
QDoes the QCJ film impact test machine meet the GB/T1732 standard?
A Hello, satisfied.
QImapct Tester test process to maintain what impact point position better?
A Hello, under normal circumstances, the impact part of the sample is not less than 15mm away from the edge. If a sample is used for several tests, it should be noted that the edge of each impact point is not less than 15mm apart.
QCan the MODERNER QCJ film impact test meet the ASTMD2794 standard?
A Applicable, you can consult the customer service of the mall for details about the ASTMD2794 standard.
