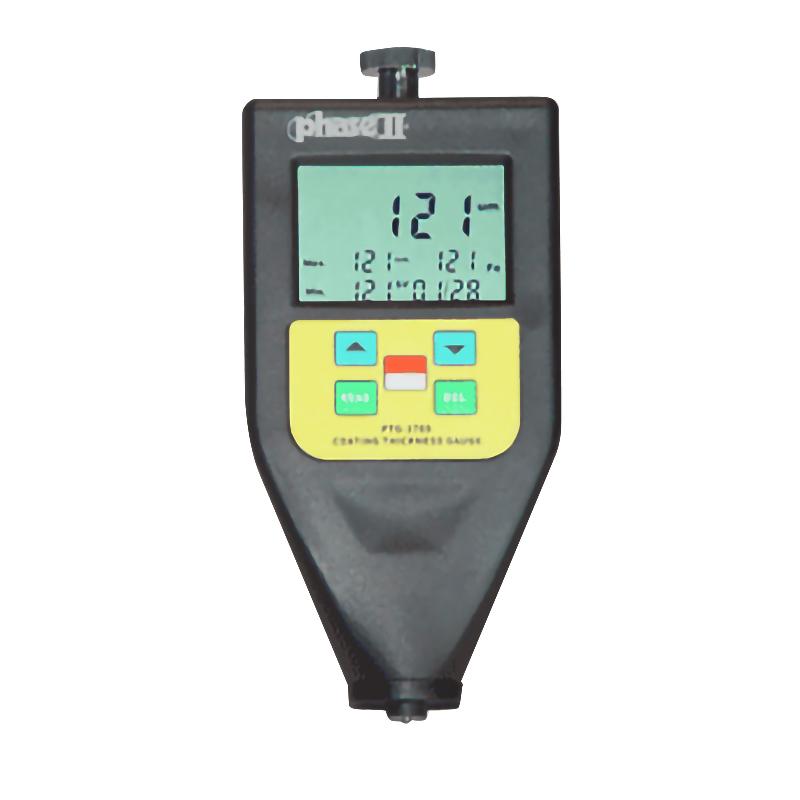

US Phase II PTG-3700 Coating Thickness Gauge/spray paint Thickness Gauge, integrated probe

PTG-3700

Coating Thickness Gauge

New! The Phase II PTG-3700 Coating Thickness Gauge/Paint Thickness Gauge is a professional Thickness Gauge that makes it easy to measure the thickness of non-magnetic coatings on magnetic substrates and the thickness of non-conductive layers on non-magnetic substrates. The PTG-3700 Coating Thickness Gauge uses an all-in-one auto-identified transducer, while the PTG-3750 uses an external probe.

This automatic identification probe makes use of the principle of eddy current and electromagnetic induction.

The PTG-3700 Series Coating Thickness Gauges feature the following features and functions: large screen, backlight, large measurement range, professional storage, browsing and data analysis capabilities, such as maximum and minimum average and counting functions

The PTG-3700 Coating Thickness Gauge is used in a wide range of applications including manufacturing, general engineering, commodity inspection and automotive.

Technical parameters

Measuring range: 0-1250 μ m

Resolution: 0.1 μm for measurements from 0-99 μm; When the measured value ≥ 100 μm is 1 μm

Indication accuracy: +/- 1-3%N or ±2μm after 1 point calibration

Minimum measuring area: 5mm x 5mm Minimum substrate thickness 0.5mm for ferrous substrates and 50mm for non-ferrous substrates

Minimum radius of curvature: 3 mm convex surface, 30 mm concave surface, maximum surface temperature: 150°C (maximum contact time is 2 seconds) Power supply: 2 AAA batteries

Dimensions and shapes 126 x 65 x 35mm .

The PTG-3700 uses an integrated probe to automatically detect both magnetic and non-magnetic substrates. Comes with 2 types of substrates (iron-based, aluminum-based), 4 calibration specimens, suitcase, battery, instruction manual

Packing list：Host X1, base X2, calibrated test piece X4, suitcase X1, battery X1, instruction manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
