JIAHANG JH60 automatic Melting point meter temperature measurement range Room temperature -400 ℃ No video function
SE
JH60
-
JH30 Video Melting point meter Semi-automatic economical, temperature range Room temperature~ 350 ℃ -
SUOGUANG X-4B Microscopic melting point Tester, Maximum Measuring temperature 400 ℃ Binocular Microscope$ 952.00SE -
SUOGUANG WRS-2U Automatic Melting point meter melting point Measurement range up to 400 ℃$ 1588.00SE -
SUOGUANG WRS-1U Automatic Melting point meter Measurement range Room temperature~ 400 ℃ with USB interface$ 1446.00SE -
JIAHANG JH90 automatic video Melting point meter temperature range Room temperature~ 420 ℃ with printer$ 10020.00SE
JIAHANG JH60 Melting point meterSPEC
JIAHANG JH60 Melting point meterDetails
JIAHANG JH60 Melting point meterPacking list
- SKU
- NB006529
- Temperature range
- RT+~400°C
- temperature resolution
- 0.1℃
- Heating rate
- 0.1~ 20 ℃ (200 gears, stepless adjustable)
- Error of indication
- ±0.3℃(<250℃)；±0.5℃(>250℃)
- Sexual repeability
- ±0.1℃(0.1℃/min)
- Capillary size
- Outer diameter Φ1.4mm; Inner diameter Φ1.0mm
- Display
- TFT high-definition true color screen
- Data Interface
- USB RS232 network port
- magnification
- without
- processing power
- 4 pcs/batch (four samples can be made at the same time)
- user management
- 8
- Video function
- without
- Video playback function
- without
- Graph storage
- 10 sets
- data storage
- 400
- Power
- 220V 50HZ 120W
Introduction

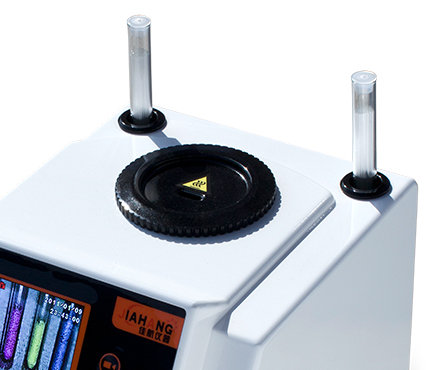

JIAHANG JH60 automatic melting point Tester is a full-automatic grease melting point Tester, well combined with high-precision temperature control technology, it not only provides users with accurate, stable and reliable test results, but also brings users effective and convenient test experience. Automatic detection and real-time spectrum display, which is convenient for users to accurately measure the melting point and melting distance of samples. JH60 automatic melting point apparatus does not have video function, 10 sets of map saving function, can store 400 data.
Functional advantage
1. Process 4 samples at a time;
2. High automation integration, realizing one-button measurement function;
3. Automatically record the melting process, initial melting and final melting.
field of use
JH60 Automatic Melting Point Apparatus plays an important role in the chemical industry and pharmaceutical research, and is a necessary instrument for the production of food, medicine, spices, dyes and other organic crystal substances.
Back interface details
Some app users
★Shanghai Institute of Organic Chemistry, Chinese Academy of Sciences; ★Institute of Plant Physiology and Ecology, Shanghai Academy of Biological Sciences, Chinese Academy of Sciences;
★School of Medicine, Xi'an Jiaotong University; ★Nanjing University; ★Jiangxi Normal University; ★Zhendong Guangming Drug Research Institute;
★Ximeng Food and Drug Inspection and Testing Center; ★Taizhou Entry-Exit Inspection and Quarantine Bureau Comprehensive Technical Service Center;
★Haining Maqiao Hengshun Rubber Factory; ★Jilin College of Pharmacy; ★Dayu Water Saving (Tianjin) Co., Ltd.;
★Jiangsu Jihua Chemical Co., Ltd.; ★Jinghai County Fuming Resin Co., Ltd.; ★Dafeng Xinyuanda;
★Shanghai Pauway Biomedicine Co., Ltd.; ★Jiangxi Ji'an Xiajiang County Hengtong Auxiliary Co., Ltd.; ★Dalian Fine Petrochemical Co., Ltd.
