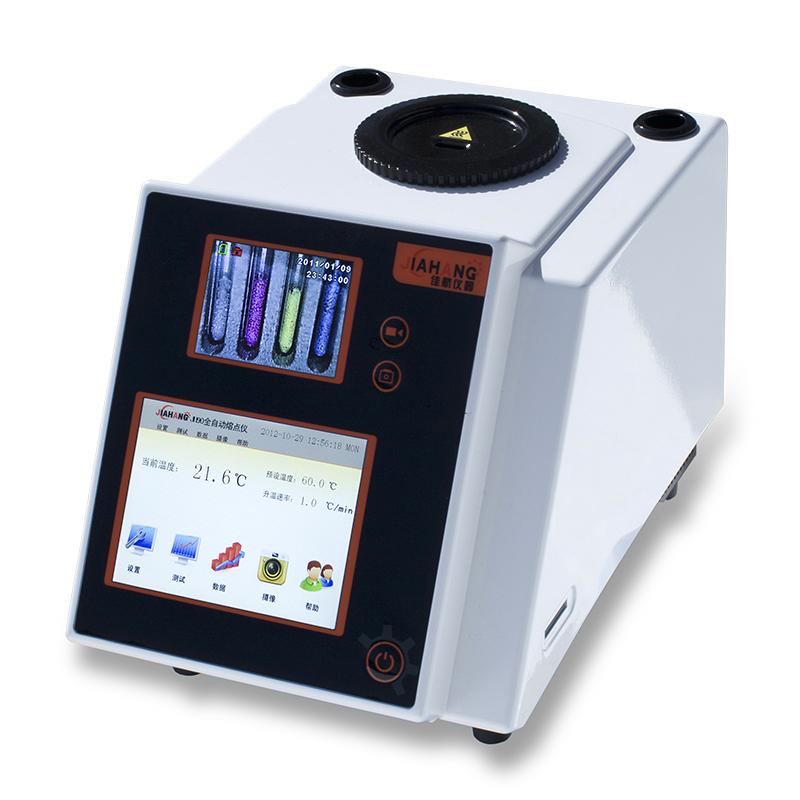

JIAHANG JH90 automatic video Melting point meter temperature range Room temperature~ 420 ℃ with printer
SE
JH90
-
JH30 Video Melting point meter Semi-automatic economical, temperature range Room temperature~ 350 ℃ -
JIAHANG JH80 automatic video Melting point meter camera/camera function, temperature range room temperature~ 400 ℃$ 5543.00SE -
JIAHANG JH70 automatic video Melting point meter compatible with measurement powder and block -
JIAHANG JH60 automatic Melting point meter temperature measurement range Room temperature -400 ℃ No video function -
JIAHANG JH50 video Melting point meter with high definition camera lens module, the range is room temperature~ 400 ℃
JIAHANG JH90 Melting point meterSPEC
JIAHANG JH90 Melting point meterDetails
JIAHANG JH90 Melting point meterPacking list
- SKU
- NB006532
- Temperature range
- RT+~420°C
- temperature resolution
- 0.1℃
- Heating rate
- 0.1~ 20 ℃ (200 gears, stepless adjustable)
- Error of indication
- ±0.3℃(<250℃)；±0.5℃(>250℃)
- Sexual repeability
- ±0.1℃(0.1℃/min)
- Capillary size
- Outer diameter Φ1.4mm; Inner diameter Φ1.0mm
- Display
- TFT high-definition true color screen
- Data Interface
- USB RS232 network port
- magnification
- 7X
- processing power
- 4 pcs/batch (four samples can be made at the same time)
- user management
- 20
- Video function
- Take pictures, take pictures
- Video playback function
- Yes.
- Graph storage
- 80 sets
- data storage
- 1000
- Video storage
- 32G
- Experimental method Storage Capacity
- 100 sets
- Power
- 220V 50HZ 120W
Introduction

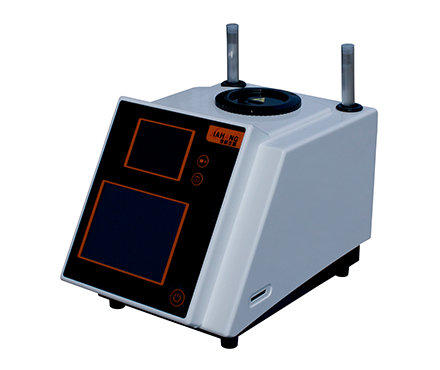

JIAHANG JH90 Automatic Video Melting Point Apparatus well combines high-precision temperature control technology and high-definition video camera technology, which not only provides users with accurate, stable and reliable test results, but also brings users effective and convenient test experience. The high-definition video can easily and clearly see the whole process of sample melting, and the automatic detection real-time map display is convenient for users to accurately measure the melting point and melting distance of the sample. JH90 Automatic Video Melting Point Apparatus is equipped with a high-definition camera module , which can store 1000 data, equipped with a printer and a set of standard samples.
Functional advantage
1. High-definition video replaces traditional microscope vision;
2. Process 4 samples at a time ;
3. High automation integration, realizing one-button measurement function ;
4. Automatically record the melting process, initial melting and final melting;
5. Compatible with measuring powder and block;
6. Equipped with high-definition camera lens module.
field of use
JH90 Automatic Video Melting Point Apparatus plays an important role in the chemical industry and pharmaceutical research, and is a necessary instrument for the production of food, medicine, spices, dyes and other organic crystal substances.

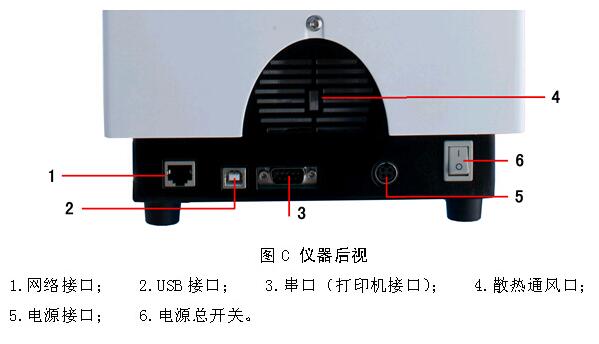

Back interface details

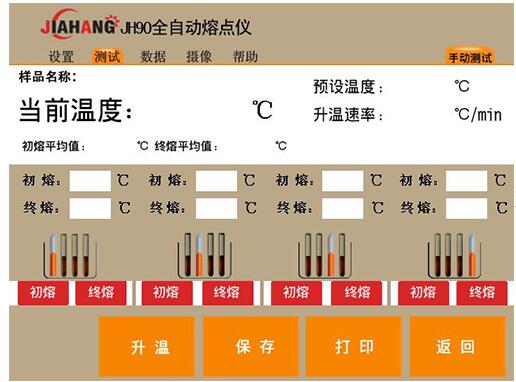

Display Details
Some app users
★Shanghai Institute of Organic Chemistry, Chinese Academy of Sciences; ★Institute of Plant Physiology and Ecology, Shanghai Academy of Biological Sciences, Chinese Academy of Sciences;
★School of Medicine, Xi'an Jiaotong University; ★Nanjing University; ★Jiangxi Normal University; ★Zhendong Guangming Drug Research Institute;
★Ximeng Food and Drug Inspection and Testing Center; ★Taizhou Entry-Exit Inspection and Quarantine Bureau Comprehensive Technical Service Center;
★Haining Maqiao Hengshun Rubber Factory; ★Jilin College of Pharmacy; ★Dayu Water Saving (Tianjin) Co., Ltd.;
★Jiangsu Jihua Chemical Co., Ltd.; ★Jinghai County Fuming Resin Co., Ltd.; ★Dafeng Xinyuanda; ★ Jiangsu Huai'an Drug Administration
★Shanghai Pauway Biomedicine Co., Ltd.; ★Jiangxi Ji'an Xiajiang County Hengtong Auxiliary Co., Ltd.; ★Dalian Fine Petrochemical Co., Ltd.
