JIAHANG JH-P100 Automatic Polarimeter measuring range -45 °~ + 45 °

SE
JIAHANG JH-P100 automatic Polarimeter is a professional instrument for measuring the optical rotation of substances. The measuring range is -45 °~ + 45 °. The JH-P100 adopts photoelectric detection and automatic servo mechanism control, and is backlit with liquid crystal display.
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

JIAHANG JH-P100 Fully Automatic PolarimeterSPEC

JIAHANG JH-P100 Fully Automatic PolarimeterDetails

JIAHANG JH-P100 Fully Automatic PolarimeterPacking list

SKU
NB006537
Measuring range
-45°～+45° -120°Z～＋120°Z
Measurement project
optical rotation
Minimum reading
0.01° 0.01°Z
Accuracy
± (0.01 ° + measurement × 0.05%) ± (0.03 ° Z + measurement × 0.05%)
Sexual repeability
≤0.002° ± 0.006°Z
Operating wavelength
589.3nm
Calibrated
without
Dimensions
600*320*220mm
JH-P100
Fully Automatic Polarimeter

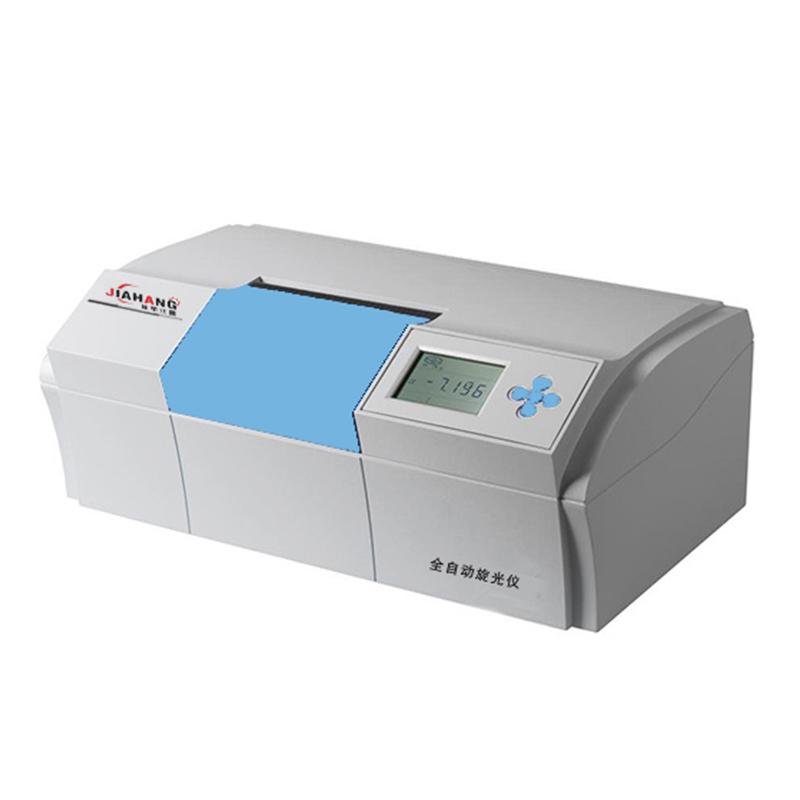

JIAHANG JH-P100 Automatic Polarimeter measuring range -45 °~ + 45 ° Picture

product description

JIAHANG JH-P100 automatic polarimeter is an instrument for measuring the optical rotation of substances. By measuring the optical rotation of the sample, the concentration, purity, sugar content or content of the sample can be determined. JH-P100 adopts photoelectric detection and automatic servo mechanism control, backlit liquid crystal display, test data is clear and intuitive, can save three retest results, and calculate the average value. Equipped with RS232 interface, can transmit data to PC.

Features and advantages

1. The accuracy of the instrument is repeatable;

2. The price is higher than that of similar products;

Application

JH-P100 full-automatic polarimeter is widely used in industrial production, scientific research and teaching departments such as sugar production, pharmaceuticals, drug inspection, food, spices, monosodium glutamate, chemical industry and petroleum, for laboratory analysis or process quality control.

Agriculture: Composition analysis of agricultural antibiotics, agricultural hormones, microbial pesticides and starch content of agricultural products.

Medicine: drug analysis of antibiotics, vitamins, glucose, etc., pharmacological research of Chinese herbal medicine.

Food: production process control and finished product inspection of sugar, monosodium glutamate, soy sauce, etc., determination of sugar content in food.

Petroleum: analysis of mineral oil, monitoring of petroleum fermentation process.

Fragrances: Analysis of essential oils.

Health services: analysis of hospital clinical diabetes .


FAQ
QHow to choose an instrument for measuring the composition of essential oils?
A Just choose JH-P100, which supports optical rotation measurement and is specially used for essential oil analysis. It has a minimum reading of 0.01 °, high Repeatability, simple operation, and intuitive backlight display. It is suitable for rapid detection in the fragrance industry.
QHow to zero-correct this Polarimeter?
A The Polarimeter is powered on, and after the sodium lamp emits stable light (about 5 minutes), the measuring tube filled with distillation water is placed into the Polarimeter to correct the focal length of the eyepiece and make the field of vision clear. swirl/spin handwheel, adjust the scale of the analyzer to make the brightness of the three-point field of view consistent, and read the scale value shown on the dial. Repeat the operation twice, and take the average value as the zero point (zero point deviation value).
QHow to calibrate the JH-P Polarimeter? Does the instrument come with it?
A JH-P series automatic Polarimeter built-in Peltier (Peltier) accurate temperature control system, can meet the needs of users in constant temperature testing; optional built-in auto calibration program, and standard configuration of auto calibration tools, auto calibration -45 degrees to + 45 degrees, fully meet the user's daily operation of the instrument measurement accuracy controllable needs.
