TIME TT130 Ultrasonic Thickness Gauge Suitable for Metals, Plastics, Ceramics, Glass, Sheets, Parts, etc

TIME TT130 Ultrasonic Thickness Gauge measurement material thickness 0.75~ 300mm, is a split probe Thickness Gauge, TT130 Sensors contact temperature -10~60 ℃, can store 10 thickness measurement values, 5 Speed of sound values.
$413.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI
Similar products

TIME TT130 Ultrasonic Thickness GaugeSPEC

TIME TT130 Ultrasonic Thickness GaugeDetails

TIME TT130 Ultrasonic Thickness GaugePacking list

SKU
NB000672
Measurement range
0.75~300mm
Probe Frequency
5MHz
Probe style
Split probe (5P < 10 probe)
Probe diameter
Φ10mm
Probe contact temperature
-10~60℃
Lower limit of pipe measurement
Φ20*3mm
Measurement error
±(1%H+0.1)mm
Display resolution
0.01mm
Storage Capacity
10 Measured values, 5 Speed of sound values
Speed of sound
1000~9999m/s
Display
Four-digit LCD display
Operating language
Chinese
Application Software
without
Power Supply
2 * 1.5V AA alkaline battery
Operating Time
250h
Application
Metals, Plastics, Ceramics, Glass, etc. can make accurate measurement of various plates and processed parts
TT130
Ultrasonic Thickness Gauge
TIME TT130 Ultrasonic Thickness Gauge Suitable for Metals, Plastics, Ceramics, Glass, Sheets, Parts, etc Picture

Overview

The TT130 ultrasonic Thickness Gauge has a display resolution of 0.01, which can measure more precise workpieces than the TT100 model, with accurate measurement and automatic zero point calibration. Beijing Times Ultrasonic Thickness Gauge Series is a collection of contemporary science and technology electronic technology and measurement technology in one, professional non-destructive testing instruments, the use of microcomputer analysis, processing, display, the use of highly optimized measurement circuit, with high measurement accuracy, wide range, easy operation, stable work and other specific. This principle can be used to measure all kinds of materials that can make ultrasonic waves propagate inside at a certain speed, such as metals, plastics, ceramics, glass, etc., and can accurately measure various plates and processed parts.

Live shot

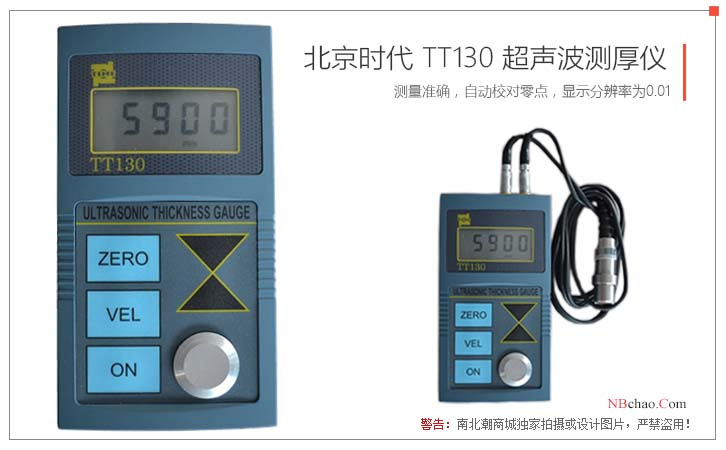

Beijing Times TT130 ultrasonic Thickness Gauge real picture

Operating Principle

When the ultrasonic pulse emitted by the probe reaches the material interface through the measured object, the pulse is reflected back to the probe, and the thickness of the measured material is determined by accurately measuring the time of ultrasonic wave propagation in the material.

Parameters

performanceTT130
Measuring range0.75~300mm
Display resolution0.01mm
Sound velocity range1000~9999m/s
Workpiece surface temperature-10~60 degrees
displayFour-digit LCD display
Indication error+_(1%H+0.1mm), H is the actual thickness value
Lower Pipe Measurement Limit¢20mmx3.0mm (5P¢10 probe, steel)
Operating time250 hours of continuous operation (2 AA alkaline batteries, 1.5V/pcs)

Features

1. High resolution: the display resolution is 0.01mm when measuring workpieces below 100mm;

2. Automatic calibration of zero point: the systematic error can be corrected;

3. Coupling prompt, low Voltage prompt;

4. Shutdown mode: It will automatically shut down after three minutes of no operation;

5. Sound velocity adjustment: the sound velocity can be measured by using a test block of known thickness;

6. Data storage: 10 thickness values and 5 sound velocity values can be stored;

Basic configuration

valise1 pc
host1 unit
Console case1 set
probe1 5P¢10/90 probe
battery2 AA alkaline batteries
Couplant1 bottle
Random files1 set
FAQ
QHow much can this TT130 Ultrasonic Thickness Gauge measure?
A TT130 Ultrasonic Thickness Gauge The thinnest can measure the measured thickness of 0.75mm
