MODERNER LG250-475 Sag Applicator for determination of relative sag of Paints

LG-I 250-475

SAG Tester

Main technical parameters of LG-I Sag Applicator

Model: LG-2

Specifications 250-475μm

Groove difference: 25μm

Application of LG-I Sag Applicator

The Sag Applicator is mainly used to measure the relative sag properties of colored paints and provide technical parameters for on-site construction of colored paints. This instrument complies with GB9264 "Determination of Sag Properties of Paints". This instrument is not suitable for testing the sag properties of varnishes and powder coatings.

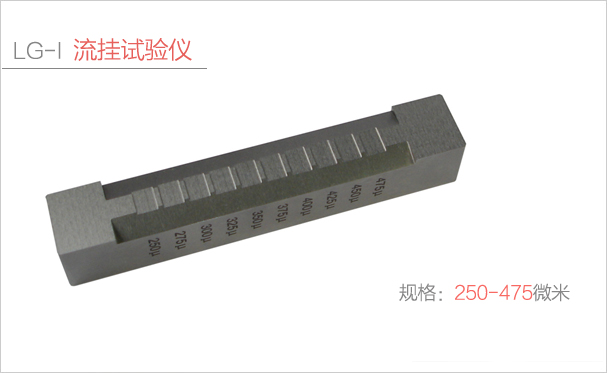

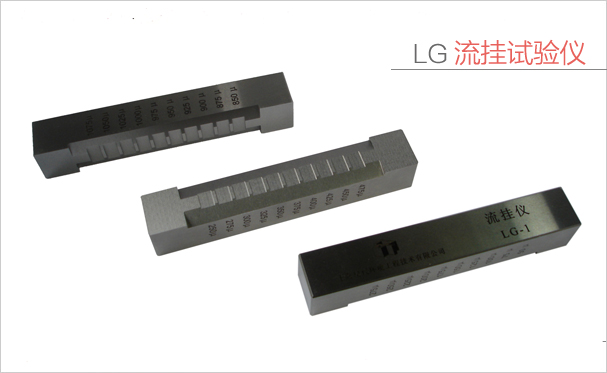

Product picture of LG-I Sag Applicator

How to use LG-I Sag Applicator

(1) Prepare the test plate: Use a glass plate with a flat and smooth surface of 200mm×120mm×2~3mm.

(2) Place the test plate flat on the platform, being careful not to slide. Place the instrument on the top of the test plate, stir the sample thoroughly, place a sufficient amount of sample in the opening in front of the instrument, and hold both ends of the instrument with both hands. , move from front to back smoothly and continuously, completing this operation within 2-3 seconds.

(3) Immediately place the coated test panel vertically. When placing it, the strip film should be horizontal and keep "thin at the top and thick at the bottom".

(4) After the surface of the coating film is dry, observe its sagging. If the coating film of this thickness does not flow into the next thickness of film, it means that the coating film of this thickness does not sag.

Packing list：SAG tester x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
