China TBJ-B2-DJ16 Floor drawdown Bar & blade Automatic Film Applicator Coating size 800 * 1000mm

Bar + Drawdown blade coating method, floor structure, custom effective coating area 800 * 1000mm.
$10642.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con

zy TBJ-B2-DJ16 Automatic Film ApplicatorSPEC

zy TBJ-B2-DJ16 Automatic Film ApplicatorDetails

zy TBJ-B2-DJ16 Automatic Film ApplicatorPacking list

SKU
NB000684
Drawdown blade Accuracy
±0.05mm
Drawdown blade Film thickness range
0~10Mm drawdown blade can be lifted
Coating Speed
5~ 200Mm/s (< 5mm/s can be customized)
Effective coating Area
1000*800mm
Appearance structure
Floor type
Meyer rod coating Accuracy
±0.05mm
Host Power Supply
220V 50Hz
speed control
Infinitely variable speed
Coating table material
aluminum alloy
Meyer rod coating thickness Range
1~ 571.5 μm (Spreader Film thickness according to bar type)
customizable function
Automatic feeding, air injection system device, UV solid inclusion device
Speed regulation Accuracy
1mm/s
Coating Method
Drawdown blade
TBJ-B2-DJ16
Automatic Film Applicator
Bar + Drawdown blade coating method, floor structure, custom effective coating area 800 * 1000mm.

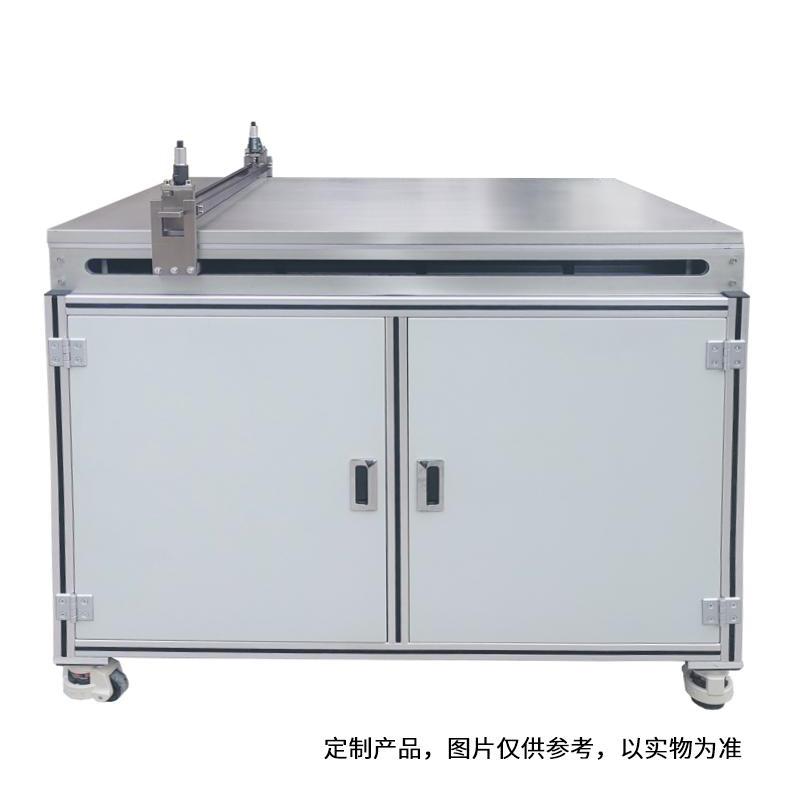

China TBJ-B2-DJ16 Floor drawdown Bar & blade Automatic Film Applicator Coating size 800 * 1000mm Picture

TBJ-B2-DJ16 Wire Rod Scraper Floor Type Automatic Film Coating Machine is a customized model, with a coating width of 800*1000mm, a floor-standing structure design, an integrated coating method of wire rod and adjustable scraper, and a glass material countertop. It is suitable for film making in coatings, inks, polymer materials, films, glues, pressure-sensitive adhesives and other industries.

Optional

Coating wire rod applicator

涂膜测试卡纸

压印床涂布台


FAQ

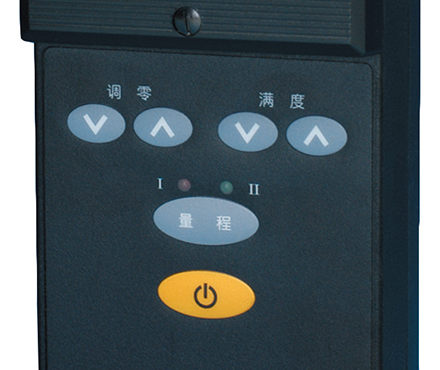

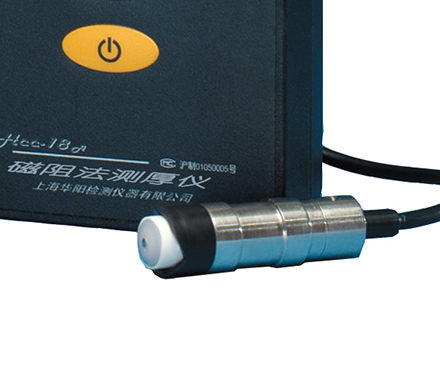

QWhat is the minimum measurement area of this HCC-18A Magnetic Thickness Gauge?
A Hello, the minimum measurement surface diameter is 10mm.
