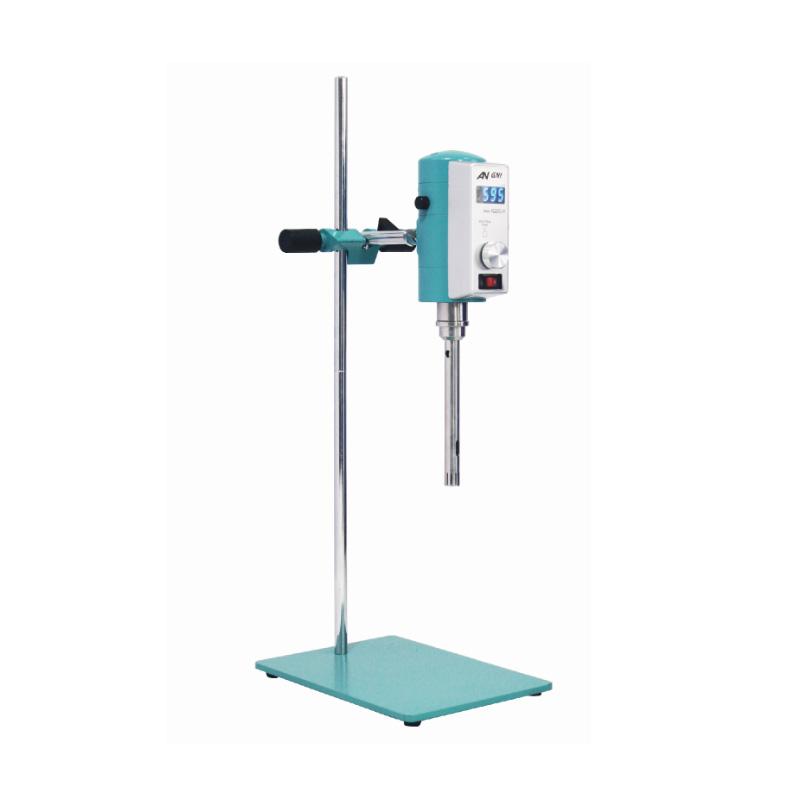

ANGNI AD200L-H (digital display) high-speed dispersion Mulser with 12G/18G dual working head

AD200L-H (Digital Display)

High Speed Dispersion Mulser

2000~23000rpm, 12G/18G, with overload protection function, knob regulation, stepless speed change, timing, timing, with Rotation speed memory function. Can complete general experimental requirements, such as emulsification, homogenization, mixing of materials, etc

Introduction

Anne AD200L-H (digital display) high-speed dispersion emulsifier is adoptedCompact series miniature high-speed motor drive for use in laboratories or pilot plantsThe stirring, mixing, crushing, and emulsification of low-to-medium-high viscosity liquids in liquid media are sheared and emulsified.The machine consists of a high-speed motor, shearing emulsion chemical industryIt is composed of head and speed controller.

Features

1. The main drive is made of die-cast aluminum alloy as the body, and the running state is stable;

2、Work headIt is refined with good stainless steel, and has a wide range of experimental applications;

3. The running speed is controlled by the microprocessor.It can effectively compensate for load changes and electricity in real timeThe speed change caused by the fluctuation of the source Voltage is reliable at constant speed;

4. Built-in soft start and automatic overload protection to ensure the safety of continuous operation of the experiment at full load for a long time;

5. The stepless adjustment of the speed can meet the adjustment of the stirring speed at any time in the experiment;

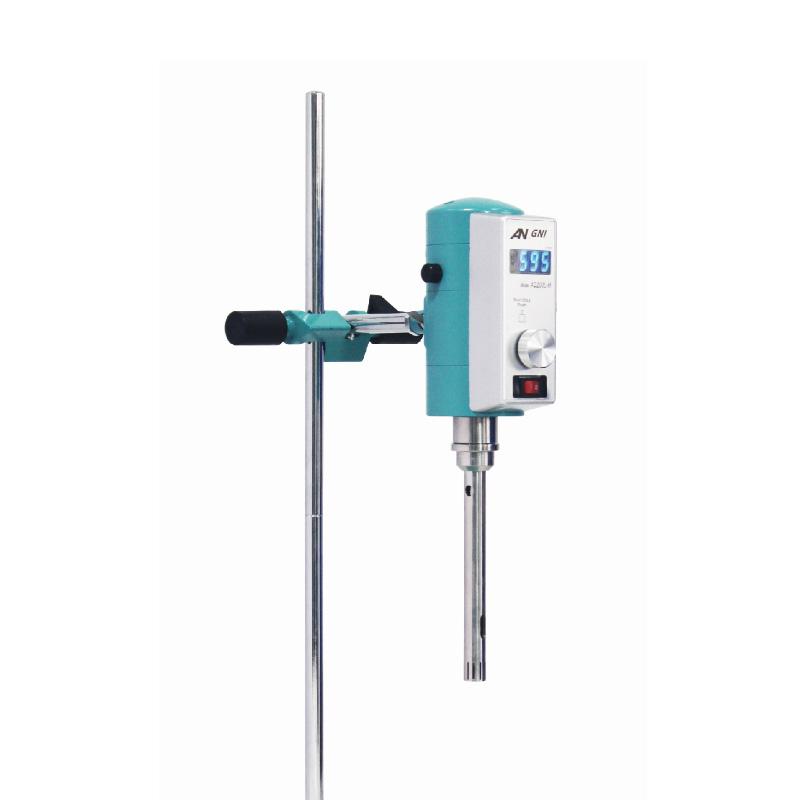

6. The "H-type" digital display speed is intuitive, which provides convenience for experimental data collection, and the Timer Control function is run to ensure that the temporal nature of the experiment is effective and controllable.

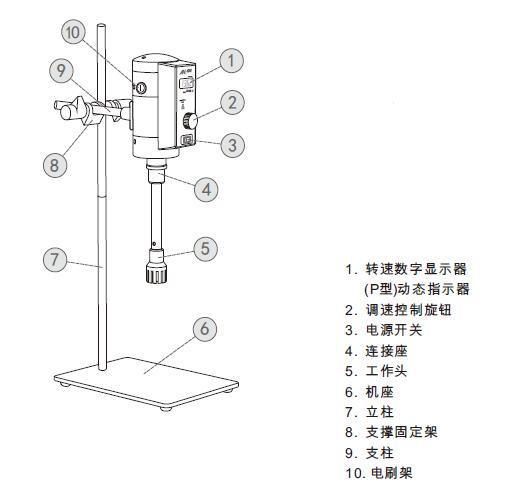

Functional structure diagram

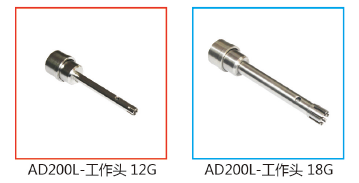

Diagram of the working head

Application

Ani AD200L-H (digital display) high-speed dispersion emulsifier is suitable for:Biotechnology in the field of tissue dispersion, in the field of sample preparation, enzymes in the food industryprocessing and experiments with liquids and liquids, liquids and solids in industry, cosmetics industry, paint industry and petrochemical industry. YesThe experimental medium is refined under the triple action of extrusion, strong impact and pressure loss expansion in the feed liquid, and mixes with each other more evenly to prevent or reduce stratification with the feed liquid. Such as: the homogenization and emulsification process in the production process of dairy, beverages, cosmetics, * products and other products.

Packing list：Mulser x1, work head x2, manual x1, warranty card x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
