Brand：AN
Model：AE500S-H (70G) digital display

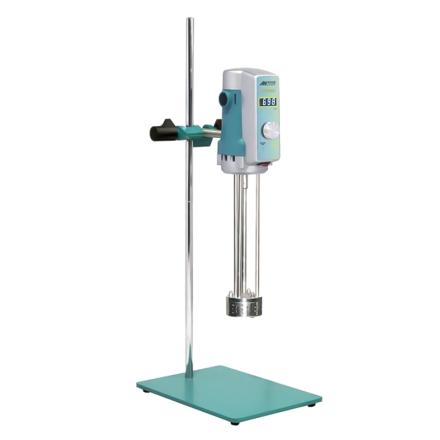

Name：High Speed Shear Dispersion Mulser
Specifications
| Rated Voltage | AC220V |
| Rated Frequency | 50/60 Hz |
| Input Power | 850W |
| output power | 500W |
| Rated torque | 34.1 N.cm |
| Operating Mode | S1 (continuous) |
| Operation control mode | Combined control knob |
| Speed range | 2000~14000rpm |
| Speed regulation mode | Promise |
| Timer | 1~1000min |
| Overload protection | Yes |
| Rotation speed dynamic detection function | Yes |
| Rotation speed memory function | Yes |
| Approved torque | 34.0 N.cm |
| Rotor maximum linear velocity | 20.5m/s |
| Work head material | SS 316L stainless steel |
| Work head specification | Φ70 mm |
| Minimum immersion liquid height | 50mm |
| Maximum immersion liquid height | 236mm |
| Stator standard configuration | 5mm² 20 mm² 50 mm² |
| Processing Capacity | 500 ~ 40000mL |
| Max. Processing Viscosity | 8000cp |
| Ambient Temperature | ≤40℃ |
| Allowable Relative Humidity | ≤80% |
| Dimensions | 215*310*720mm |
| Machine Weight | 9.2kg |
Packing list
Mulser x1, work head x1, manual x1, warranty card x1.
After-sales instructions
Warranty days: 365 days
【After-sales service】
1. The whole machine is guaranteed nationwide, and the warranty is one year (except for vulnerable parts and man-made damage);
2. After-sales service is provided by the original factory;
3. Free maintenance during the warranty period, and long-term technical support outside the warranty period.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/6886/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
