HUITAI LHS-100SC Constant Temperature and Humidity Chamber 0~ 60 ℃/100L

SE
Volume 100L, temperature control 0~ 60 ℃, humidity control 60~ 85% R.H, standard 2 shelves, PID temperature control, without fluorine refrigerant, international brand compressor.
$1291.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

HuiTai LHS-100SC Constant Temperature and Humidity Chamber SPEC

HuiTai LHS-100SC Constant Temperature and Humidity Chamber Details

HuiTai LHS-100SC Constant Temperature and Humidity Chamber Packing list

SKU
NB006898
Temperature range
0~65℃
temperature resolution
0.1℃
Temperature fluctuation
High temperature ± 0.5 ℃, low temperature ± 1.5 ℃
Humidity control range
60~85%R.H
Humidity Deviation
±5~8%R.H
Input power
1100W
Environment temperature
20℃
Power
AC220V 50HZ
Interior size
450*380*590mm
Dimensions
575*605*1160mm
Load carrier (std.)
2pcs
Interior Volume
100L
Timer
1~9999min
Environment humidity
50% RH
LHS-100SC
Constant Temperature and Humidity Chamber
Volume 100L, temperature control 0~ 60 ℃, humidity control 60~ 85% R.H, standard 2 shelves, PID temperature control, without fluorine refrigerant, international brand compressor.

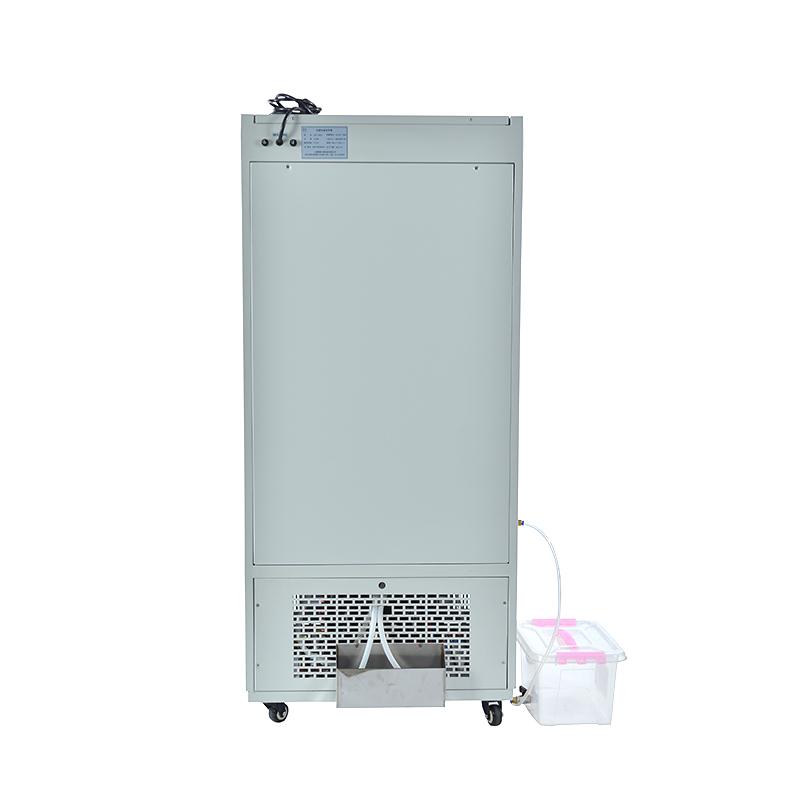

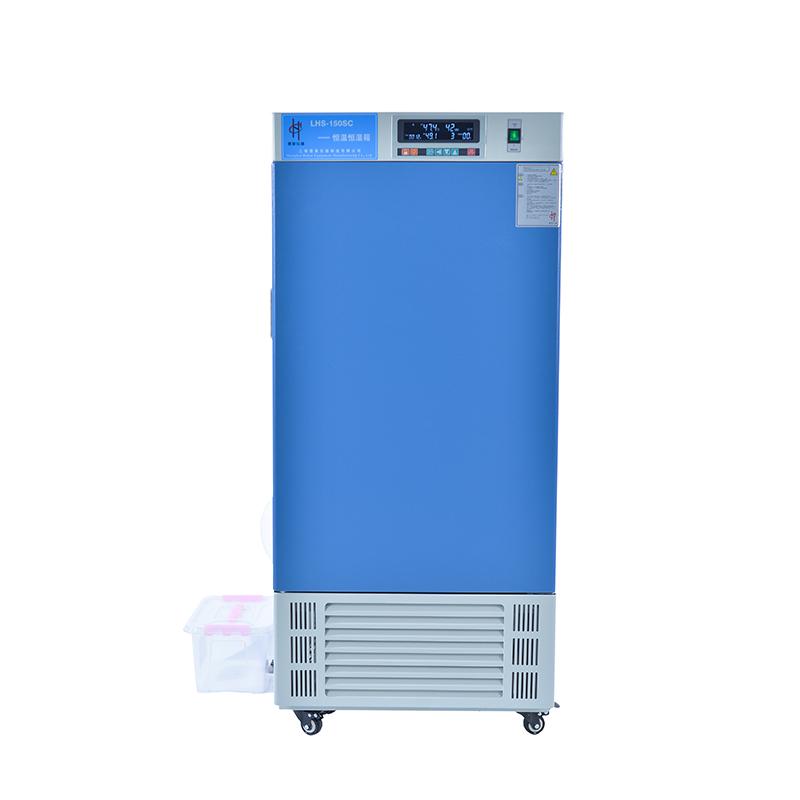

HUITAI LHS-100SC Constant Temperature and Humidity Chamber 0~ 60 ℃/100L Picture

use

Huitai LHS-HC constant temperature and Humidity Chamber has a precise temperature and humidity control system. It provides various environmental simulation conditions for industrial research and biotechnology testing. Therefore, it can be widely used in aseptic conditions such as pharmaceuticals, textiles, and food processing. Tests, stability checks, and testing of raw material properties, product packaging, and product life of industrial products.

features

1. Humanized design

    ●Large-screen LCD display, multi-group data display on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

    ●Use 134 a, 406 a fluorine-free refrigerant, effective, energy-saving, and make the environment healthier!

    ●Mirror-finished stainless steel liner, semi-arc design at four corners for easy cleaning, and adjustable shelf spacing.

    ●Double-layer door structure is adopted, which has good heat insulation performance, and the temperature inside the box will not be affected when observing the situation inside the box.

    ●There is a test hole with a diameter of 25mm/50mm on the left side of the box, which is convenient for experimental operation and temperature measurement. (optional)

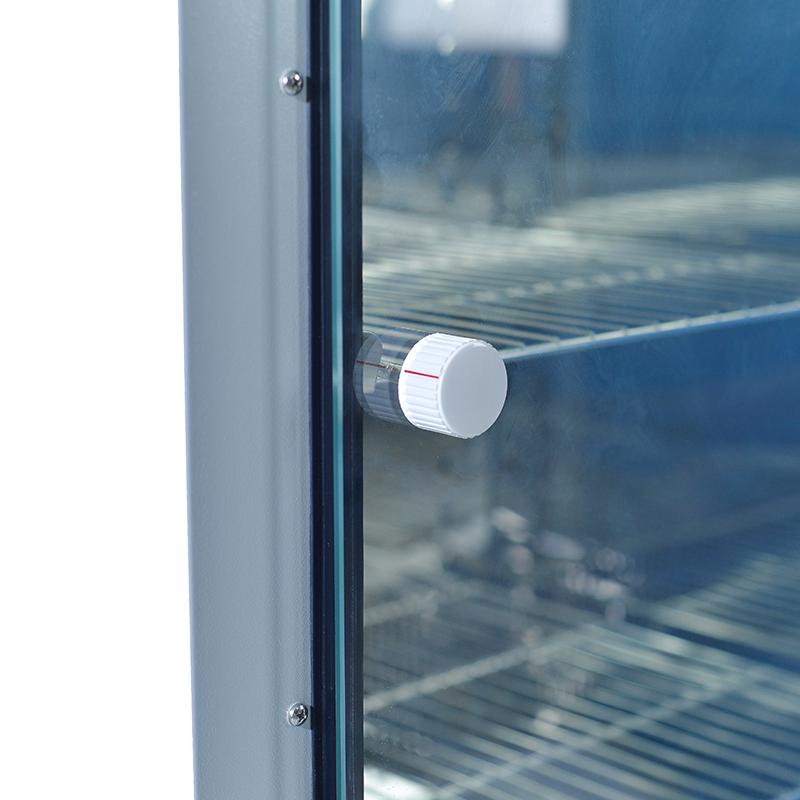

    ●Optional door observation window (except for optional, SC)

2. Quality Assurance

    ●International brand compressors are used, and the self-developed compressor cooling system can effectively prolong the service life of the compressor.

    ●Using JAKEL tube flow circulation fan, coupled with a uniquely designed air duct structure, creates a good air circulation system and effectively ensures the temperature uniformity in the box.

    ●Adopt the humidity sensor of the international famous brand, and the self-designed built-in Water Tank electric heating tube humidification system can effectively guarantee the humidity deviation.

    ●PID control method, accurate temperature control and humidity control with little fluctuation, menu-style operation page, easy to understand and easy to operate.

    ●The program has 99 cycles, each cycle is divided into 30 segments, and each cycle is 99 hours and 99 minutes, which can meet almost all complicated experimental procedures.

3. Independent temperature limit alarm system (optional)

    ●If the temperature exceeds the limit, the operation will be automatically interrupted, and the audible and visual alarm will prompt the operator. Ensure the safe operation of the experiment without accidents.

4. Convenient data processing (optional)

    ●With USB or RS485 interface, it can be connected to a printer or computer, and can record the changes of temperature parameters. (optional)

Optional

Intelligent program controller

Independent temperature limit controller

BOD special socket

Embedded printer

RS485 interface and special software

Door observation window (except SC)

Test hole 25mm/50mm

LHS series

modelTemperature control rangeNominal volumeStandard bracket
LHS-100SC0~60℃100L2pcs
LHS-150SC0~61℃150L3pcs
LHS-250SC0~62℃250L3pcs
LHS-500SC0~63℃500L3pcs
LHS-100HC-5~80℃100L2pcs
LHS-150HC-5~81℃150L3pcs
LHS-250HC-5~82℃250L3pcs
LHS-500HC-5~83℃500L3pcs
Other parameters
Constant temperature fluctuationHigh temperature ±0.5°C Low temperature ±1.5°C
temperature resolution0.1°C
Timer Range1~9999min
VoltageAC 220V 50Hz
Note: The performance parameters are tested under no-load conditions, without strong magnetism and vibration: ambient temperature 20°C, ambient humidity 50%RH
FAQ
QHere, the temperature is about 30 degrees, the Humidity is adjustable, and the Constant Temperature and Humidity Chamber within 50L is recommended?
A There is no such small one, and the smallest one should be 100L. Humidity at about 30 degrees can be adjusted at 45-90%. You can refer to the LHS-100SC model.
QThe temperature control is 37 ° C. Is there a smaller one?
A There is no smaller one in the same series.
QHow does this series of Constant Temperature and Humidity Chambers work?
A When the signal obtained by the temperature and humidity Sensors measurement is transmitted to the main controller through the cable, the CPU in the main controller makes the correct judgment, outputs the heating signal or humidification signal, and controls the corresponding device to reach the set value. This series of products adopts professional Fuzzy PID control method, high temperature control accuracy, small temperature and humidity fluctuations, and uniform temperature.
QHelp me find a Constant Temperature and Humidity Chamber that meets the GB/T10586 standard
A This LHS-100SC Constant Temperature and Humidity Chamber is fine!
