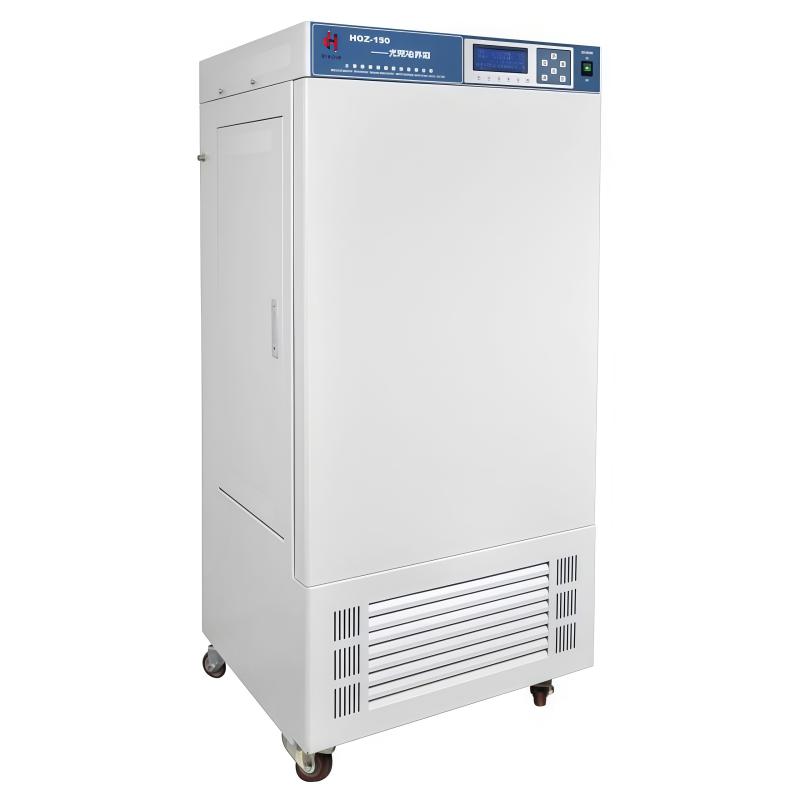

HUITAI HGZ-400 light chamber light intensity 0~ 25000Lx six-level adjustable
SE
HGZ-400
HuiTai HGZ-400 light chamberSPEC
HuiTai HGZ-400 light chamberDetails
HuiTai HGZ-400 light chamberPacking list
- SKU
- NB006908
- Temperature range
- 4~ 50 ℃ (no light); 10~50 ℃ (light)
- temperature resolution
- 0.1℃
- Temperature fluctuation
- ±1.0℃
- Input power
- 2500W
- Environment temperature
- 5~30℃
- Power
- AC220V 50HZ
- Liner size
- 680*550*1050mm
- Dimensions
- 880*780*1810mm
- Load bracket (standard)
- 3pcs
- Illuminance
- 0~25000Lx
- Volume
- 400L
- Illumination level
- Six-level adjustable
Overview
HGZ light Incubator is widely used in microbial tissue cell culture, seed germination, seedling test, plant cultivation, insect and small animal breeding, etc. It can accurately simulate different environmental and climatic conditions.
Features
1. Humanized design
● Large-screen LCD display, multi-group data display on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)
● Use 134s, 406a fluorine-free refrigerants, effective, energy-saving, and make the environment healthier!
● It adopts mirror stainless steel liner, the four corners are designed with semi-circular arcs, which is easy to clean, and the distance between the shelves in the box is adjustable.
● It adopts double-layer door structure, which has good heat insulation performance, and does not affect the temperature inside the box when observing the situation inside the box.
2. Quality Assurance
● International brand compressors are used, and the self-developed compressor cooling system can effectively prolong the service life of the compressor.
● Adopt JAKEL tube flow circulation fan, coupled with uniquely designed air duct structure, to create a good air circulation system and effectively ensure the uniformity of temperature in the box.

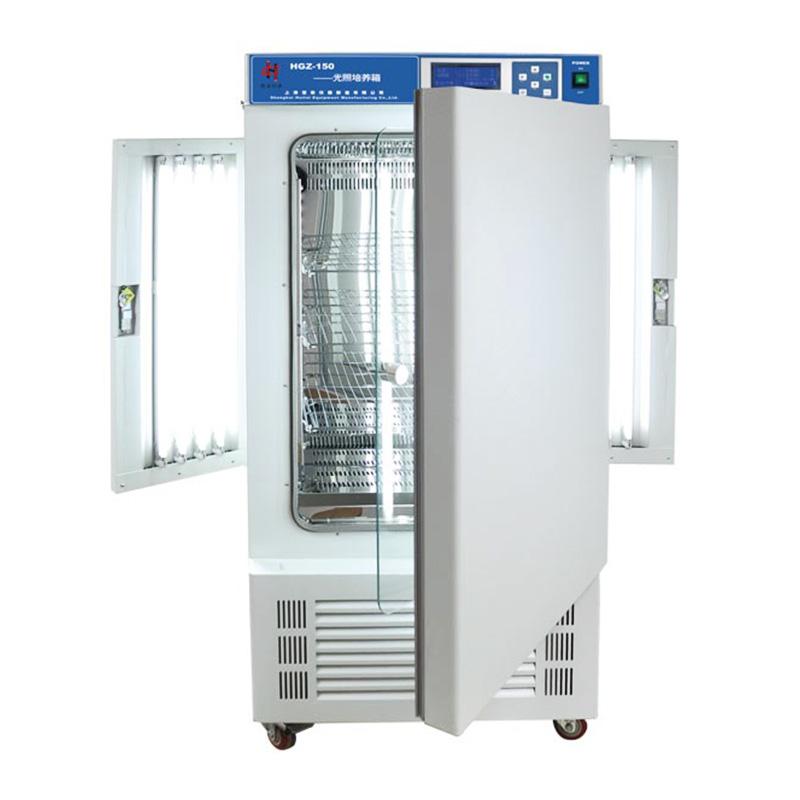

● Lighting design on three sides, special lamp tube for T4 Incubator, effectively guarantee the intensity of light in the box, no dead angle, no omission.
● Microcomputer controls temperature and illuminance. Temperature can be set according to the presence or absence of light, and it can be set differently day and night.
● PID control method, accurate control with little fluctuation, menu-style operation page, easy to understand and easy to operate.
● There are 99 cycle programs, each cycle is divided into 30 segments, and each cycle is 99 hours and 99 minutes, which can meet almost all complicated experimental procedures.
3. Continuous operation technology
● Continuous operation for a long time, the continuous working time is not less than 360 hours
4. Independent temperature limit alarm system (optional)
● If the temperature exceeds the limit, the operation will be automatically interrupted, and the audible and visual alarm will prompt the operator. Ensure the safe operation of the experiment without accidents.
5. Convenient data processing (optional)
● With USB or RS485 interface, it can be connected to a printer or computer, and can record the changes of temperature parameters. (optional)
Optional
Intelligent program controller
Independent temperature limit controller
Embedded printer
RS485 interface and special software
Test hole 25mm/50mm
HGZ series
| model | light intensity |
| HGZ-150 | 0~12000Lx six-level adjustable |
| HGZ-250 | 0~15000Lx six-level adjustable |
| HGZ-400 | 0~25000Lx six-level adjustable |
| HGZ-800 | 0~25000Lx six-level adjustable (optional LED tube) |
| Other parameters | |
| Voltage | AC220V 50HZ |
| Temperature control range | With light: 10~50°C Without light: 4~50°C |
| Constant temperature fluctuation | ±1℃ |
| temperature resolution | 0.1°C |
| Carrier | 3pcs (standard configuration) |
| Operating Environment | 5~30℃ |
| Note: The performance parameters are tested under no-load conditions, without strong magnetism and vibration: the ambient temperature is 20°C, and the ambient humidity is 50%RH. | |
| Non-standard Incubators can be customized according to user needs (customized product cycle is 30 to 40 working days after order confirmation). | |
