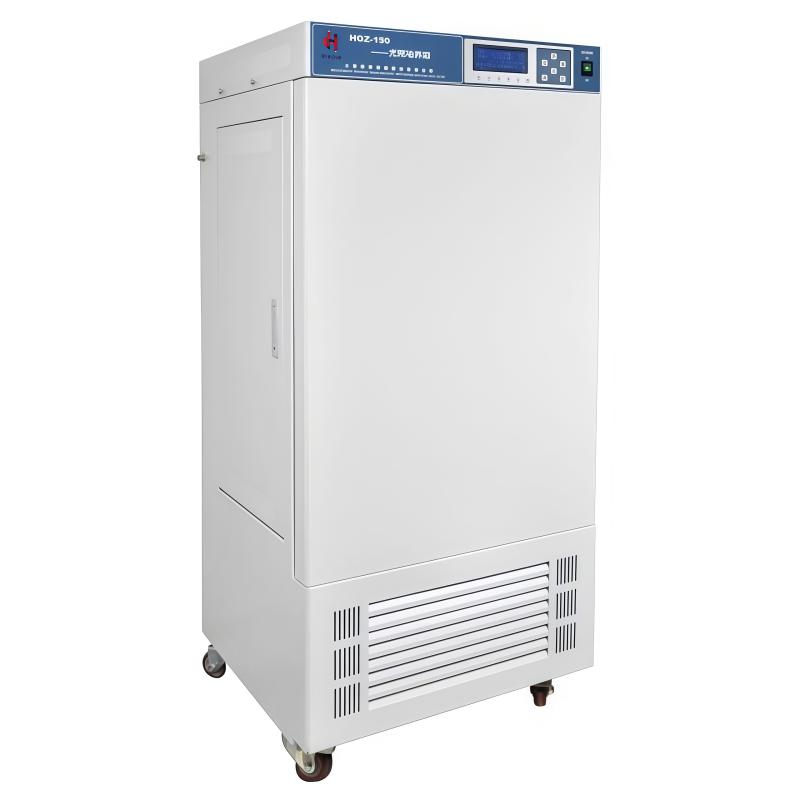

HUITAI HGZ-800 light chamber light intensity 0~ 25000Lx optional LED tube
SE
HGZ-800
HuiTai HGZ-800 light chamberSPEC
HuiTai HGZ-800 light chamberDetails
HuiTai HGZ-800 light chamberPacking list
- SKU
- NB006909
- Temperature range
- 4~ 50 ℃ (no light); 10~50 ℃ (light)
- Temperature Resolution
- 0.1℃
- Temperature Fluctuation
- ±1.0℃
- Input Power
- 3500W
- Environmental temperature
- 5~30℃
- Power supply Voltage
- AC 220V 50Hz
- Liner size
- 965*580*1430mm
- Dimensions
- 1475*890*1780mm
- Shelf (standard)
- 3pcs
- Illumrination degree
- 0~25000Lx
- Volume
- 800L
- light level
- Six-level adjustable
Overview
HGZ light Incubator is widely used in microbial tissue cell culture, seed germination, seedling test, plant cultivation, insect and small animal feeding. It can accurately simulate different environmental and climatic conditions.
Features
1. Humanized design
● Large-screen LCD display, multi-group data display on one screen, menu-based operation interface, simple and easy to understand, easy to operate. (Standard)
● Use 134s, 406A fluorine-free refrigerant, effective, energy-saving, and make the environment healthier!
● Mirror stainless steel liner is adopted, the four-corner semi-circular arc design is easy to clean, and the shelf spacing in the box is adjustable.
● Double-layer door structure, good thermal insulation performance, no impact on the temperature in the box when observing the situation in the box.
2. Quality assurance
● The use of international brand compressors, self-developed compressor cooling system, can effectively extend the service life of the compressor.
● JAKEL pipe flow circulation fan is used with a unique design of air duct structure to create a good air circulation system to effectively ensure the temperature uniformity in the box.

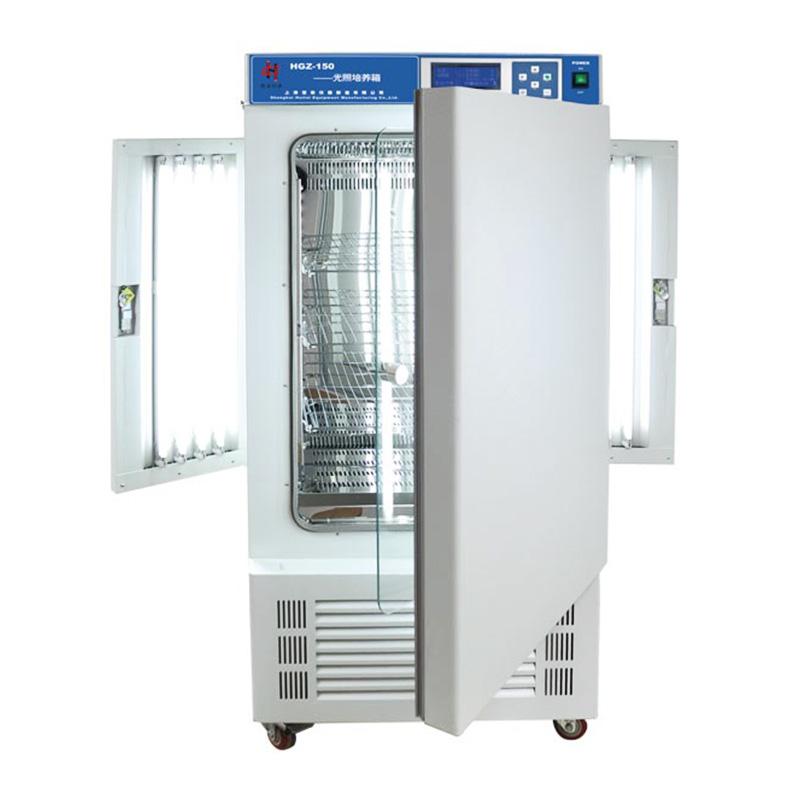

● Three-sided light design, T4 Incubator special lamp, effectively ensure the light intensity in the box, no dead ends, no omissions.
● The microcomputer controls the temperature and illumination, and the temperature can be set differently with the presence or absence of light.
● PID control mode, control accuracy and small fluctuation, menu-style operation page, simple and easy to understand, easy to operate.
● With 99 cycles of program, each cycle is divided into 30 segments, each section is 99 hours and 99 minutes of cycle steps, which can meet almost all complex experimental processes.
3. Continuous operation technology
● Long-term continuous operation, continuous working time is not less than 360 hours
4. Independent temperature limit alarm system (optional)
● If the temperature limit is exceeded, the operation will be automatically interrupted, and the operator will be prompted by sound and light alarm. Ensure the safe operation of the experiment without accidents.
5. Convenient data processing (optional)
● With USB or RS485 interface, it can be connected to a printer or computer, and can record the change of temperature parameters. (Optional)
Optional
Intelligent program controller
Independent temperature limiting controller
Embedded printers
RS485 interface and dedicated software
Test hole 25mm/50mm
HGZ series
| Model | Light intensity |
| HGZ-150 | 0~12000Lx six levels adjustable |
| HGZ-250 | 0~15000Lx six levels adjustable |
| HGZ-400 | 0~25000Lx six levels adjustable |
| HGZ-800 | 0~25000Lx 6 levels adjustable (optional LED tube) |
| Other parameters | |
| Supply Voltage | AC220V 50HZ |
| Temperature control range | With light: 10~50°C without light: 4~50°C |
| Constant temperature fluctuation | ±1℃ |
| Temperature resolution | 0.1℃ |
| Cargo carriers | 3pcs (standard) |
| Operating Environment | 5~30℃ |
| Note: The performance parameters are tested under no-load conditions, without strong magnetism and vibration, and the ambient temperature is 20°C, and the ambient humidity is 50%RH. | |
| Non-standard Incubators can be customized according to user needs (the customized product cycle is 30 to 40 working days after the order is confirmed). | |
