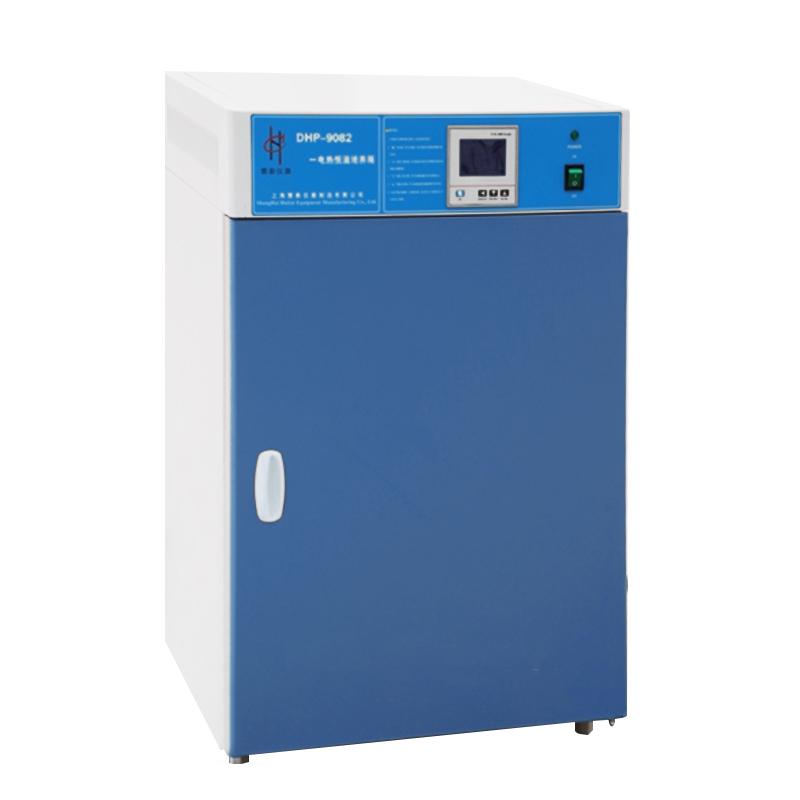

HUITAI DHP-9162 Electric Thermostatic Incubator Nominal volume 160L
DHP-9162
HuiTai DHP-9162 Electrothermal Thermostatic IncubatorSPEC
HuiTai DHP-9162 Electrothermal Thermostatic IncubatorDetails
HuiTai DHP-9162 Electrothermal Thermostatic IncubatorPacking list
- SKU
- NB006916
- Temperature range
- 5~65℃
- Temperature Resolution
- 0.1℃
- Temperature Fluctuation
- ±0.5℃
- Input Power
- 550W
- Environmental temperature
- 20℃
- Power supply Voltage
- AC 220V 50Hz
- Liner size
- 500*500*650mm
- Dimension
- 630*605*935mm
- Shelf (standard)
- 2pcs
- Volume
- 160L
- Timer Range
- 1~9999min
- Environmental humidity
- 50%RH
Introduction
Huitai DHP-9162 electric heating constant temperature Incubator is used by colleges and universities, biology, agriculture, scientific research and other departments for storing strains, biological culture, and scientific research equipment.
Features
1. Large-screen LCD display, multi-group data display on one screen, menu-based operation interface, simple and easy to understand, easy to operate. (Standard)
2. Double-layer door structure, good thermal insulation performance, does not affect the temperature in the box when observing the situation in the box.
3. The mirror stainless steel liner is adopted, the four-corner semi-circular arc design is easy to clean, and the shelf spacing in the box is adjustable.
4. The shell of the box is made of good cold-rolled steel plate, and the surface is electrostatically sprayed
5. The heating method of electric heating film is fast.
6. Independent temperature limit alarm system, which will be automatically interrupted when the limit temperature is exceeded, to ensure the safe operation of the experiment without accidents. (Optional)
7. It has RS485 interface, which can be connected to the Recorder and computer, and can record the change of temperature parameters. (Optional)
Optional
Intelligent program controller
Independent temperature limit alarm system
Embedded printers
RS485 interface and dedicated software
DHP series electric heating constant temperature Incubator parameter comparison table
Model | DHP-9052 | DHP-9082 | DHP-9162 | DHP-9272 |
Supply Voltage | AC220V 50HZ | |||
Temperature control range | RT+5~65℃ | |||
Constant temperature fluctuation | ±0.5℃ | |||
Temperature resolution | 0.1℃ | |||
Input power | 250W | 350W | 550W | 700W |
Studio size W×D×H(mm) | 345×355×410 | 400×400×500 | 500×500×650 | 600×600×750 |
Dimensions W×D×H(mm) | 475×460×695 | 530×505×785 | 630×605×935 | 730×705×1035 |
Nominal volume | 50L | 80L | 160L | 270L |
Cargo carrier (standard) | 2pcs | |||
Timing range | 1~9999min | |||
*The performance parameters are tested under no-load conditions, without strong magnetism and vibration, and the ambient temperature is 20°C, and the ambient humidity is 50%RH. | ||||
