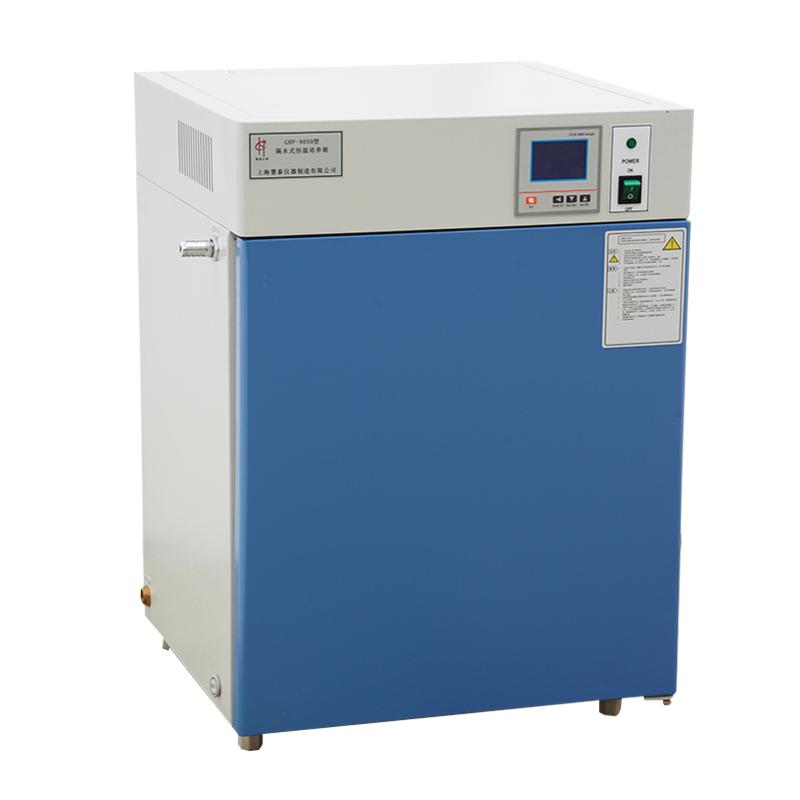

HUITAI GHP-9160 Water-Jacketed Incubator water jacket heating, volume 160L

GHP-9160

Waterproof Thermostatic Incubator

Overview of uses

Huitai GHP-9160 waterproof constant temperature Incubator is suitable for scientific research or production departments such as industry, biochemistry and agricultural science, and is used for constant temperature experiments such as cell culture and fermentation.

Features

1. Large-screen LCD display, multi-group data display on one screen, menu-based operation interface, simple and easy to understand, easy to operate. (Standard)

2. The self-designed pressure balance air inlet is adopted to avoid the back-pumping phenomenon caused by adding water too quickly

3. Double-layer door structure, good heat insulation performance, does not affect the temperature in the box when observing the situation in the box.

4. Water-proof heating method, the temperature is uniform, and it can still maintain a constant temperature for a long time after power failure.

5. It adopts mirror stainless steel liner, the four-corner semi-circular arc design is easy to clean, and the shelf spacing in the box is adjustable.

6. The shell of the box is made of good cold-rolled steel plate, and the surface is electrostatically sprayed

7. PID control mode, the temperature in the box exceeds the set value or the water level of the water jacket is too high or too low, that is, it will automatically send out sound and light alarm. The low water level stops the heating

8. Independent temperature limit alarm system, which will be automatically interrupted when the limit temperature is exceeded, so as to ensure the safe operation of the experiment without accidents. (Optional)

9. It has RS485 interface or USB interface, which can be connected to a computer or printer, and can record the change of temperature parameters. (Optional)

Product Structure

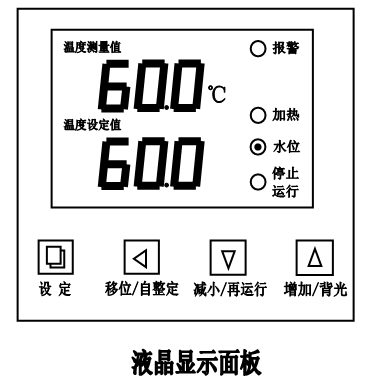

Indicator definition

1. "OUT" indicator light: this light is lit with heating output, and it is extinguished otherwise.

2. "ALM" indicator light: This light is lit when the overtemperature alarm is over-temperature, and it will be extinguished otherwise.

3. "WL" indicator light: when the water level is too low, this light will turn on the buzzer and chirp.

4. "WH" indicator light: this light will be on when the water is full.

Optionalfittings

Intelligent program LCD controller

Independent temperature limit alarm system

Embedded printers

RS485 interface and dedicated software

GHP seriesComparison of parameters of water-isolated constant temperature Incubator

Packing list：Host x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
