HUITAI DHG-9030A Blast drying oven temperature control RT + 10~ 250 ℃ Volume 30L

SE
Temperature range RT + 10~ 250 ℃, Temperature Fluctuation +/- 1 ℃, Temperature resolution 0.1 ℃, Input Power 850W, Volume 30L, shelf (std.) 2pcs
$363.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HuiTai DHG-9030A Blast Drying OvenSPEC

HuiTai DHG-9030A Blast Drying OvenDetails

HuiTai DHG-9030A Blast Drying OvenPacking list

SKU
NB006922
Power supply voltage
AC 220V 50Hz
Temperature range
RT+10~250℃
Temperature Fluctuation
±1℃
Temperature Resolution
0.1℃
Input Power
850W
Volume
30L
shelf (std.)
2pcs
Timer Range
1~9999min
Working size (mm)
340*275*323
Liner size (mm)
340*325*323
Dimensions (mm)
628*556*500
DHG-9030A
Blast Drying Oven
Temperature range RT + 10~ 250 ℃, Temperature Fluctuation +/- 1 ℃, Temperature resolution 0.1 ℃, Input Power 850W, Volume 30L, shelf (std.) 2pcs

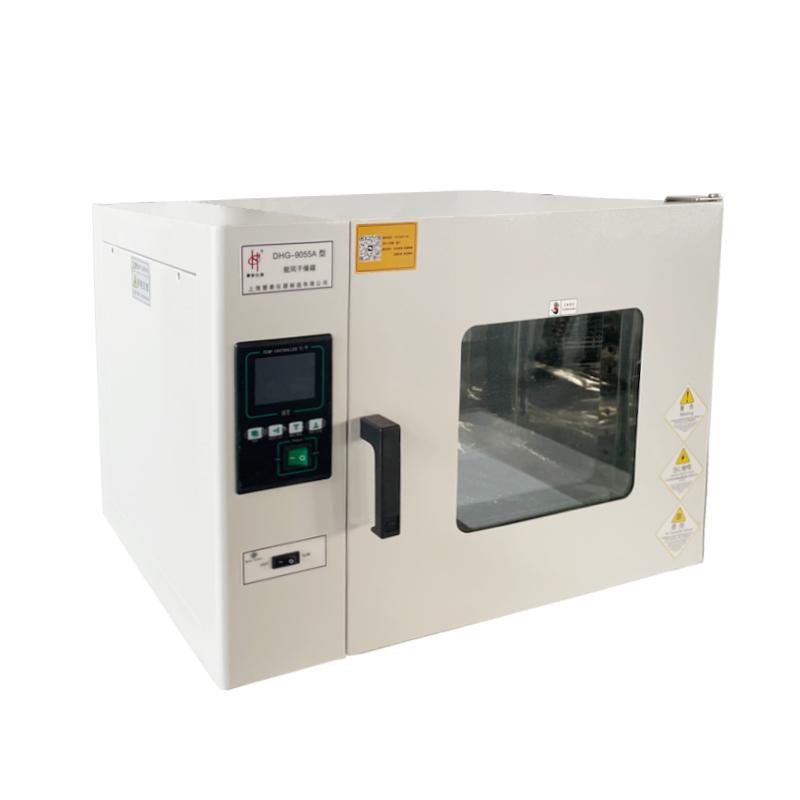

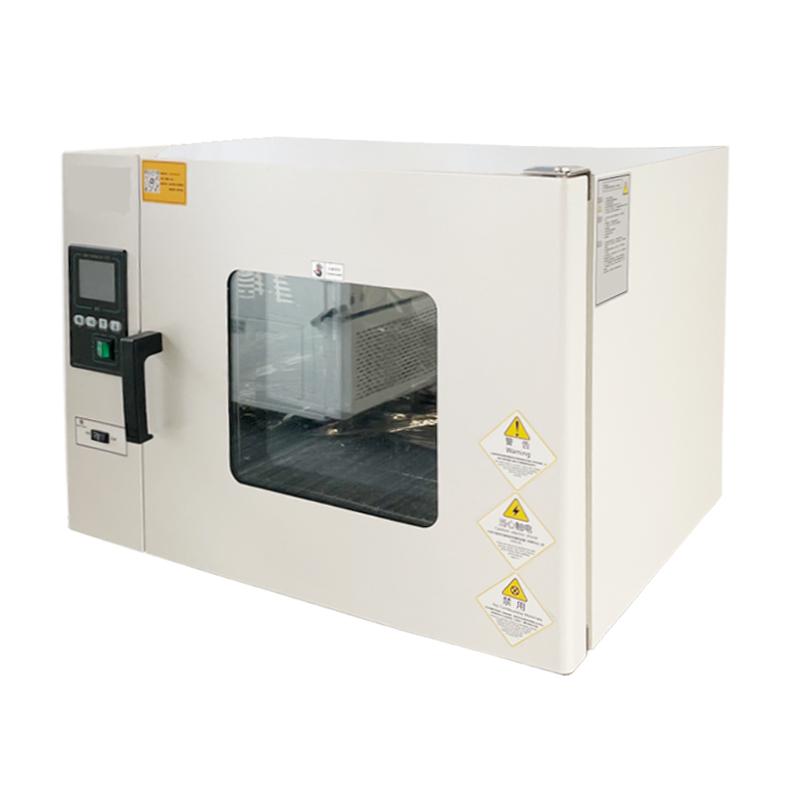

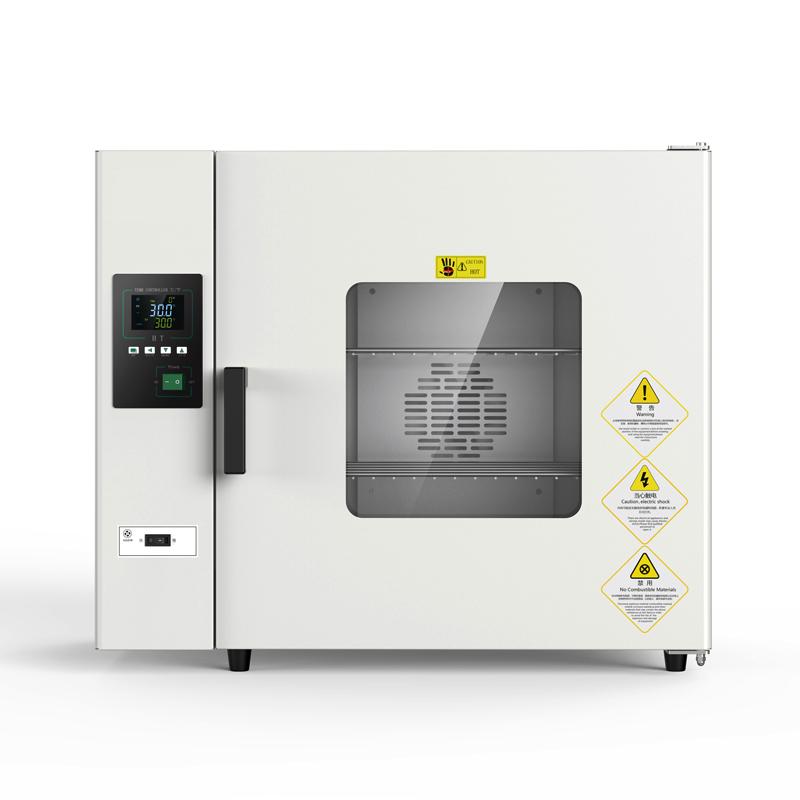

HUITAI DHG-9030A Blast drying oven temperature control RT + 10~ 250 ℃ Volume 30L Picture

Overview

Huitai DHG-9030A Forced Air Drying Oven is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.

Features

1) Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

2) The fan speed control method is adopted to improve the temperature uniformity of the studio.

3) The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, without the trouble of manual adjustment.

4) It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.

5) The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.

6) The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

7) Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)

8) With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)

Optional

Intelligent program controller

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Test hole 25mm/50mm

DHG series

modelTemperature control rangeinput powervolume
DHG-9030ART+10~25085030
DHG-9050A110050
DHG-9070A155080
DHG-9140A2050136
DHG-9240A2500220
DHG-9240A Heightening2500260
DHG-9035ART+10~30085030
DHG-9055A110050
DHG-9075A155080
DHG-9145A2050136
DHG-9245A2500220
Unit: °C, W, L
other parameters
Constant temperature fluctuation±1℃
temperature resolution0.1°C
Carrier2pcs (standard configuration)
Timer Range1~9999min


FAQ
QOur laboratory needs to dry some samples, which are not large in volume, about 30 liters, and the temperature is required to be up to 250 degrees. Do you recommend a suitable drying oven?
A HUITAI DHG-9030A blower drying oven is recommended, its volume is exactly 30 liters, Temperature range from room temperature + 10 degrees to 250 degrees, fully meet your needs. This one adopts fan speed control, good temperature uniformity, and automatic steam discharge function, easy to operate.
QWe need equipment with good temperature uniformity for material baking. What do you recommend?
A DHG-9030A, it adopts a special air duct circulation system, and the fan speed control can ensure the uniform and stable temperature of the studio. Mirror stainless steel liner and removable shelf are also convenient for you to place samples of different shapes.
QTemperature control at 185 ℃, size 30L up and down drying oven is recommended
A DHG-9030A Blast drying oven Temperature range 10~ 250 ℃, effective volume 30L meet.
QDo you have a drying oven, the inner tank size is about 300 * 400mm, and the blast heating is more than 1,000?
A Hello, yes, you can take a look at the Huitai DHG-9030A model.
QThis one has several layers of shelves, can you extract it yourself?
A Hello, Huitai DHG-9030A blast drying oven has load shelves and can be taken out freely.
QHuitai, does this DHG9030A blast drying oven have over-temperature protection?
A Hello, this is a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function.
QDo you have the blast drying oven required by GB/T1714 standard?
A This DHG-9030A blast drying oven will do.
