HUITAI DHG-9070A Blast drying oven temperature control RT + 10~ 250 ℃ Volume 80L

SE
Controllable fan speed, automatic discharge of water vapor inside the box, with over-temperature deviation protection and microcomputer temperature control; Mirror stainless steel liner, volume 80L, Temperature range RT + 10~ 250 ℃, standard 2 shelves.
$433.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HuiTai DHG-9070A Blast Drying OvenSPEC

HuiTai DHG-9070A Blast Drying OvenDetails

HuiTai DHG-9070A Blast Drying OvenPacking list

SKU
NB006924
Power supply voltage
AC 220V 50Hz
Temperature range
RT+10~250℃
Temperature Fluctuation
±1℃
Temperature Resolution
0.1℃
Input Power
1550W
Volume
80L
shelf (std.)
2pcs
Timer Range
1~9999min
Working size (mm)
447*335*448
Dimensions (mm)
740*620*630
Liner size (mm)
447*388*448
DHG-9070A
Blast Drying Oven
Controllable fan speed, automatic discharge of water vapor inside the box, with over-temperature deviation protection and microcomputer temperature control; Mirror stainless steel liner, volume 80L, Temperature range RT + 10~ 250 ℃, standard 2 shelves.

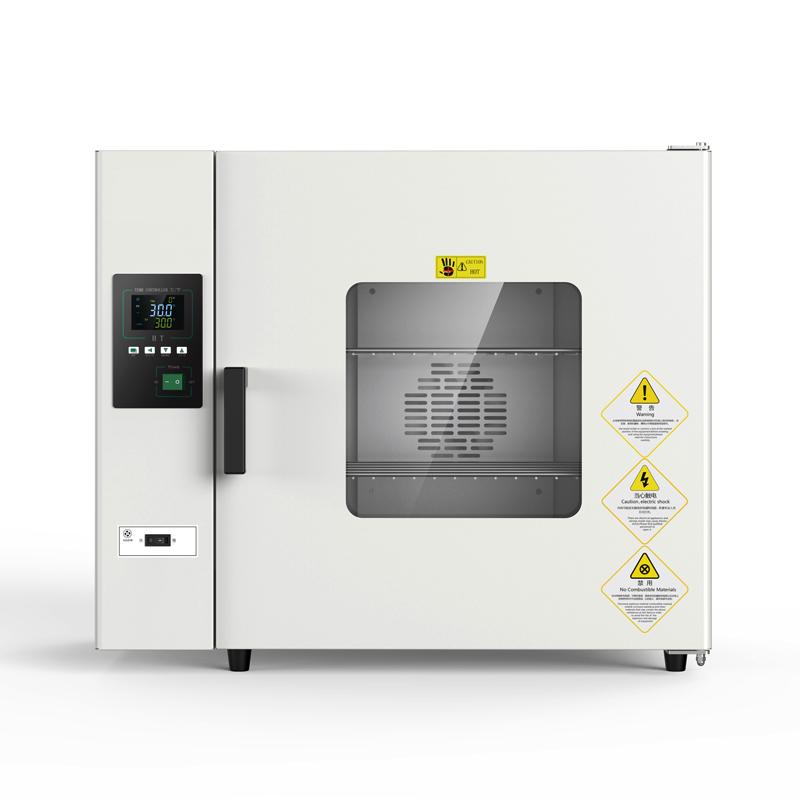

HUITAI DHG-9070A Blast drying oven temperature control RT + 10~ 250 ℃ Volume 80L Picture

Overview

Huitai DHG-9070A Forced Air Drying Oven is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.

Features

1) Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

2) The fan speed control method is adopted to improve the temperature uniformity of the studio.

3) The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, without the trouble of manual adjustment.

4) It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.

5) The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.

6) The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

7) Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)

8) With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)

plan

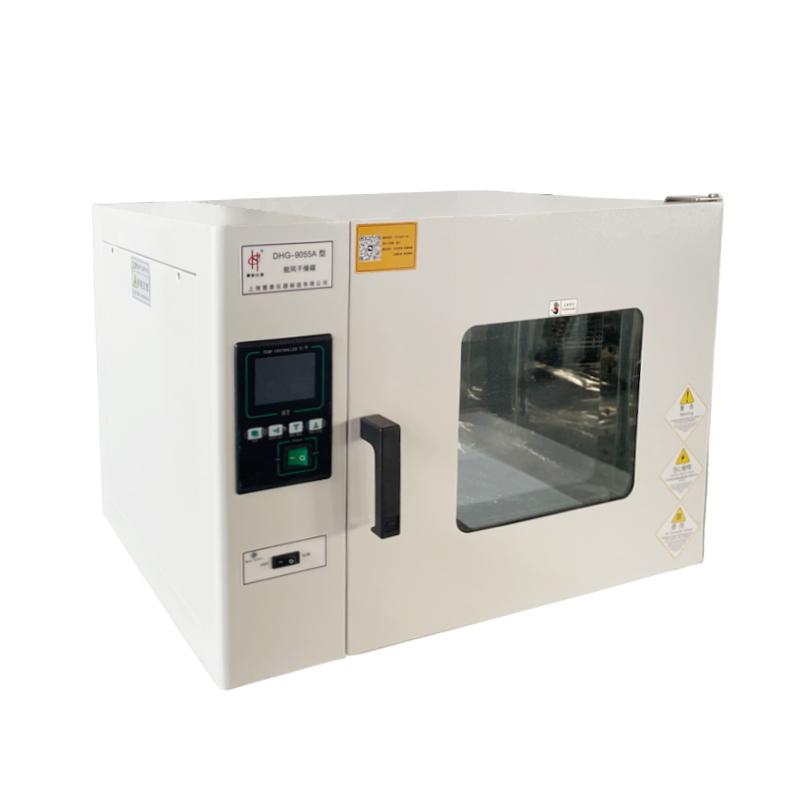

Display of Huitai DHG-9070A Forced Air Drying Oven

Optional accessories

Intelligent program controller

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Test hole 25mm/50mm

DHG series

modelTemperature control rangeinput powervolume
DHG-9030ART+10~25085030
DHG-9050A110050
DHG-9070A155080
DHG-9140A2050136
DHG-9240A2500220
DHG-9240A Heightening2500260
DHG-9035ART+10~30085030
DHG-9055A110050
DHG-9075A155080
DHG-9145A2050136
DHG-9245A2500220
Unit: °C, W, L
other parameters
Constant temperature fluctuation±1℃
temperature resolution0.1°C
Carrier2pcs (standard configuration)
Timer Range1~9999min


FAQ
QOur lab needs drying some samples. Is 80 liters capacity enough?
A HUITAI DHG-9070A blast drying oven 80 liters volume is suitable for small and medium-sized laboratory use, it uses air duct circulation system to ensure temperature uniformity, suitable for drying, baking and other conventional experimental needs.
QIs the temperature control of this drying oven accurate?
A DHG-9070A adopts microcomputer temperature controller, temperature control accuracy +/- 1 ℃, resolution 0.1 ℃, but also with timing function, accurate and reliable temperature control, fully meet the laboratory's precise drying requirements.
Q 150 degrees Celsius. Can I lower it to 30 degrees Celsius for 9,000 minutes?
A The drying oven can only cool down naturally. Cooling is also related to Environmental temperature. If you want to set how long it takes to drop to the specified temperature point, this drying oven series will not work. The drying oven does not have a refrigeration system. In addition, if it drops to 30 degrees in 9,000 minutes, this time point can be cooled to 30 degrees naturally
QWhat is the height of the tray inside this one?
A Shelf layer distance 30MM, can hold up to 8 pieces, standard two pieces.
QYou need a farm oven for fostering cells, lobsters and crabs
A You should use an incubator
QThis box can control the temperature of 160 ° C and the sample capacity is about 80L?
A This DHG-9070A blast drying oven Temperature range 10~ 250 ℃, volume 80L, suitable for your requirements.
QDo you have the blast drying oven involved in JB/T5520?
A The DHG-9070A blast drying oven can
QHello, the DHG-9070A drying oven I purchased has been running very noisy recently. What is the reason?
A Hello, if there is a lot of noise, you can check if the fan blade is not installed properly or the motor is broken.
QDoes the DHG-9070A have an RS485 interface?
A Hello, the data interface of DHG-9070A is an optional accessory and needs to be purchased separately, and the adapted software also needs to be equipped separately.
QHow many shelves does the DHG9070A drying oven have, Huitai's?
A Hello, two pieces are standard.
