HUITAI DHG-9075A blast drying oven high temperature oven volume 80L temperature control RT + 10~ 300 ℃

SE
Temperature range RT + 10~ 300 ℃, Temperature Fluctuation +/- 1 ℃, Temperature resolution 0.1 ℃, Input Power 1550W, Inner chamber dimensions 450 * 400 * 450mm, Volume 80L
$459.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HuiTai DHG-9075A Blast Drying OvenSPEC

HuiTai DHG-9075A Blast Drying OvenDetails

HuiTai DHG-9075A Blast Drying OvenPacking list

SKU
NB006930
Power
AC 220V 50Hz
Temperature range
RT+10~300°C
Temperature fluctuation
±1℃
temperature resolution
0.1℃
Input power
1550W
Interior size
450*400*450mm
Dimensions
735*615*630mm
Volume
80L
Number of shelves (std.)
2pcs
Timer
1~9999min
DHG-9075A
Blast Drying Oven
Temperature range RT + 10~ 300 ℃, Temperature Fluctuation +/- 1 ℃, Temperature resolution 0.1 ℃, Input Power 1550W, Inner chamber dimensions 450 * 400 * 450mm, Volume 80L

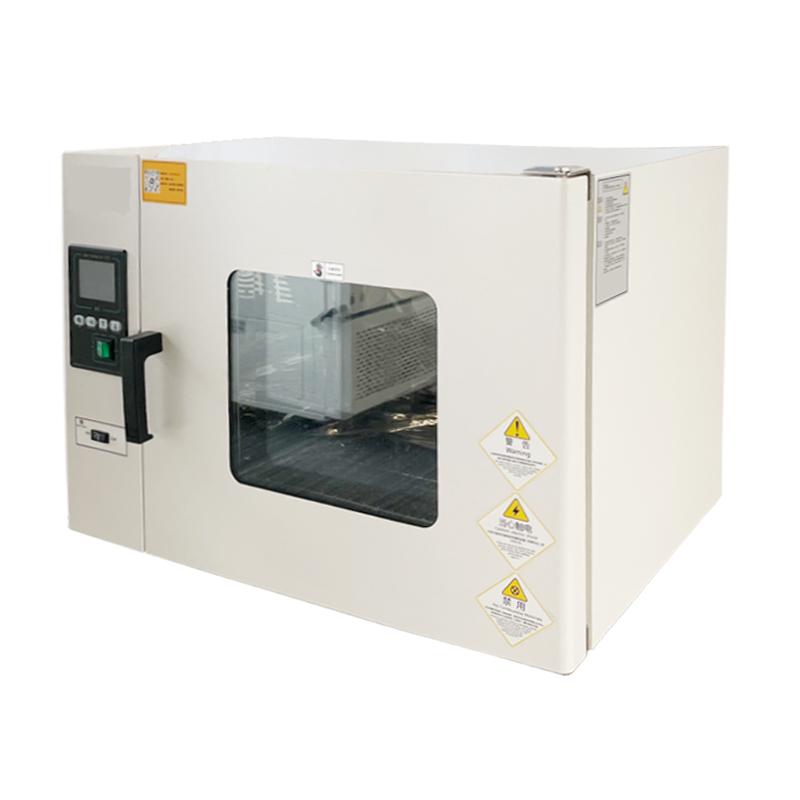

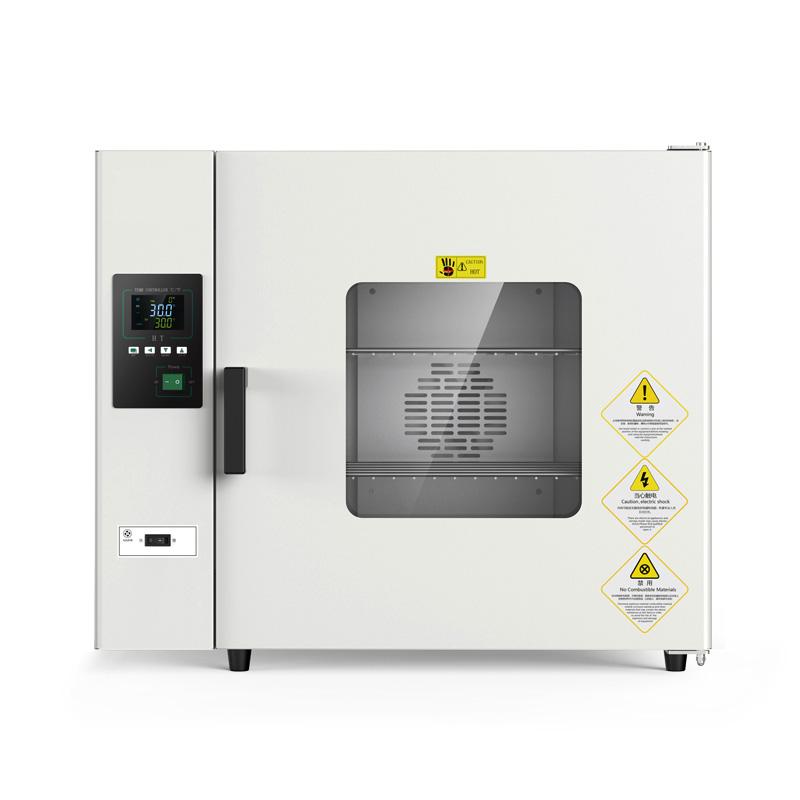

HUITAI DHG-9075A blast drying oven high temperature oven volume 80L temperature control RT + 10~ 300 ℃ Picture

Overview

Huitai DHG-9075A Forced Air Drying Oven is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.

Features

1) Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

2) The fan speed control method is adopted to improve the temperature uniformity of the studio.

3) The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, without the trouble of manual adjustment.

4) It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.

5) The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.

6) The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

7) Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)

8) With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)

Optional accessories

Intelligent program controller

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Test hole 25mm/50mm

DHG series

modelTemperature control rangeinput powervolume
DHG-9030ART+10~25085030
DHG-9050A110050
DHG-9070A155080
DHG-9140A2050136
DHG-9240A2500220
DHG-9240A Heightening2500260
DHG-9035ART+10~30085030
DHG-9055A110050
DHG-9075A155080
DHG-9145A2050136
DHG-9245A2500220
Unit: °C, W, L
other parameters
Constant temperature fluctuation±1℃
temperature resolution0.1°C
Carrier2pcs (standard configuration)
Timer Range1~9999min


FAQ
QOur laboratory needs drying some chemical samples, which type of blast drying oven should we choose?
A DHG-9075A is recommended, its 80L capacity is suitable for routine laboratory use, Temperature range RT + 10~ 300 ℃ can cover most chemical sample drying needs, and mirror stainless steel liner is easy to clean to avoid cross contamination.
QWe need to record the temperature data of the drying process. Does this equipment support it?
A Yes, the DHG-9075A can be equipped with an optional RS485 interface and dedicated software, allowing it to connect to a computer to record temperature changes in real time. It can also be equipped with an embedded printer to print data directly, making it suitable for scientific research experiments that require data recording.
QCan I connect the recorder and computer?
A Yes, it has an RS485 interface, which is optional and can be connected to a recorder and computer to record and monitor changes in temperature parameters in real time.
QWhat is the case material and liner material of DHG-9075A?
A Cold rolled steel plate with electrostatic spray treatment, liner made of mirror stainless steel.
QCan the DHG 9075A be programmed to heat up?
A HUITAI's DHG 9075A cannot be programmed to heat up, and an intelligent program controller needs to be added.
QTemperature control at 200 ℃, size 80L up and down drying oven is recommended
A The machine DHG-9075A blast drying oven Temperature range 10~ 300 ℃, the maximum can put 80L, properly.
QI want to buy an oven, for laboratory samples, in the range of 5~ 300 ° C. Is this suitable?
A Hello, Huitai DHG-9075A oven Temperature range is 10~ 300 ℃, can be used in the laboratory.
QDoes this DHG-9075A have a timing function? The technician in my lab needs this function.
A Hello, this one has a timing function. Timer is 1~ 9999min.
QDoes this drying oven comply with GB/T16777 standard?
A The blast drying oven is suitable for GB/T16777, please consult customer service for detailed application definition
QIf this one needs to use the RS485 interface, do you need to buy it separately?
A Hello, yes, if you need RS485 interface, you need to buy it separately.
