HUITAI DK-8AD electrothermal Thermostatic Water Bath temperature control RT + 5~ 100 ℃ volume 30L

HUITAI DK-8AD electrothermal Thermostatic Water Bath is used for laboratory thermostatic and auxiliary heating thermostatic equipment, DK-8AD electrothermal Thermostatic Water Bath volume of 30L, using stainless steel liner.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

HuiTai DK-8AD Electrothermal Thermostatic Water BathSPEC

HuiTai DK-8AD Electrothermal Thermostatic Water BathDetails

HuiTai DK-8AD Electrothermal Thermostatic Water BathPacking list

SKU
NB006952
Temperature range
5~100℃
Temperature Fluctuation
±0.5℃
Temperature Resolution
0.1℃
Tank Volume
30L
Circular mode
Domestic circulation
Total Power
1000W
Timer
1~9999min
Power supply Voltage
AC220V 50Hz
Dimensions
805*420*295mm
Tank Size
600*300*160mm
DK-8AD
Electrothermal Thermostatic Water Bath

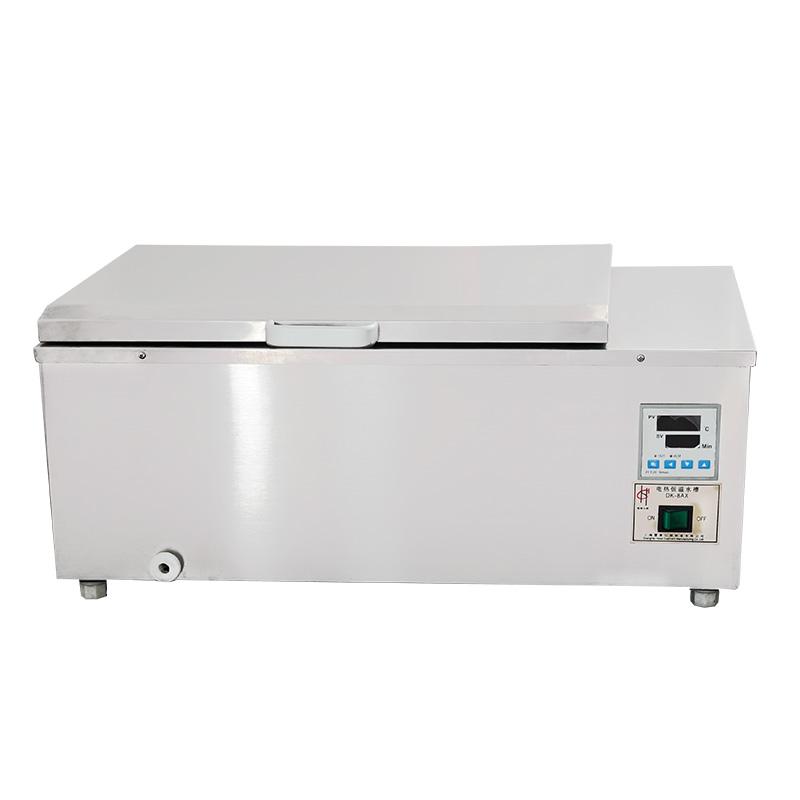

HUITAI DK-8AD electrothermal Thermostatic Water Bath temperature control RT + 5~ 100 ℃ volume 30L Picture

Overview

Huitai DK-8AD electric heating constant temperature sink is suitable for colleges and universities, industrial and mining enterprises and scientific research units for precision constant temperature and auxiliary heating.

give birthProduct characteristics

1. The stainless steel liner is used to make it novel and beautiful.

2. Digital display, microcomputer control, with timing function.

3. Over-temperature acousto-optic tracking alarm, so that the sample can be reliably protected.

Product display

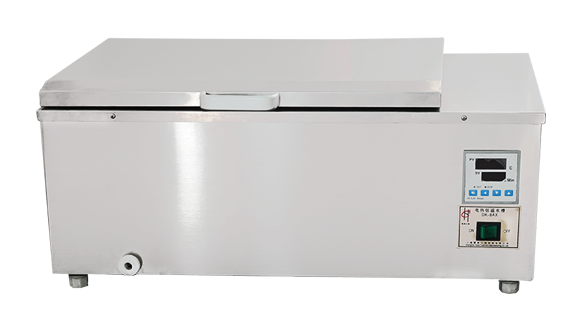

Huitai DK-8AD electric heating constant temperature sink display diagram

Optional

Intelligent programmed LCD temperature controller

printer

RS485 interface and communication software

Comparison of parameters of DK series electric heating constant temperature sink

project

DK-8AS

DK-8AXDK-8ADDK-600B (with Circulating Chiller)DK-8AB (with Circulating Chiller)DK-8D (Three-hole Electric Heating Constant Temperature Water Tank)

Supply Voltage

AC220V    50HZ

Temperature control range

RT+5~100℃

RT+5~70℃RT+5~100℃

Constant temperature fluctuation

±0.5℃

±0.3℃±0.3℃

Temperature resolution

0.1℃

Input power

450W

800W1000W1000W1000W750W

Studio size W×D×H(mm)

300×250×160

450×300×160600×300×160500×300×150600×300×170150×125×110

Dimensions W×D×H(mm)

505×365×295

655×430×295805×420×295785×430×285885×430×305490×250×310

volume

12L

22L30L22L30L2.1L x 3

Timing range

1~9999min

*The performance parameters are tested under no-load conditions, without strong magnetism and vibration, and the ambient temperature is 20°C, and the ambient humidity is 50%RH.

FAQ
QWhat is the limit low temperature of DK-8AD electrothermal thermostatic water tank?
A HUITAI DK-8AD meets the Temperature range of 5 to 100 ° C, with a minimum temperature of 5 ° C.
QDoes this electric thermostatic sink comply with GB9278 standard?
A The electric thermostatic sink is suitable for GB9278, please consult customer service for detailed application definition
