CQX CQ-60S Small hole Glossmeter 60 °

CQ-60S

Small hole Glossmeter

Introduction

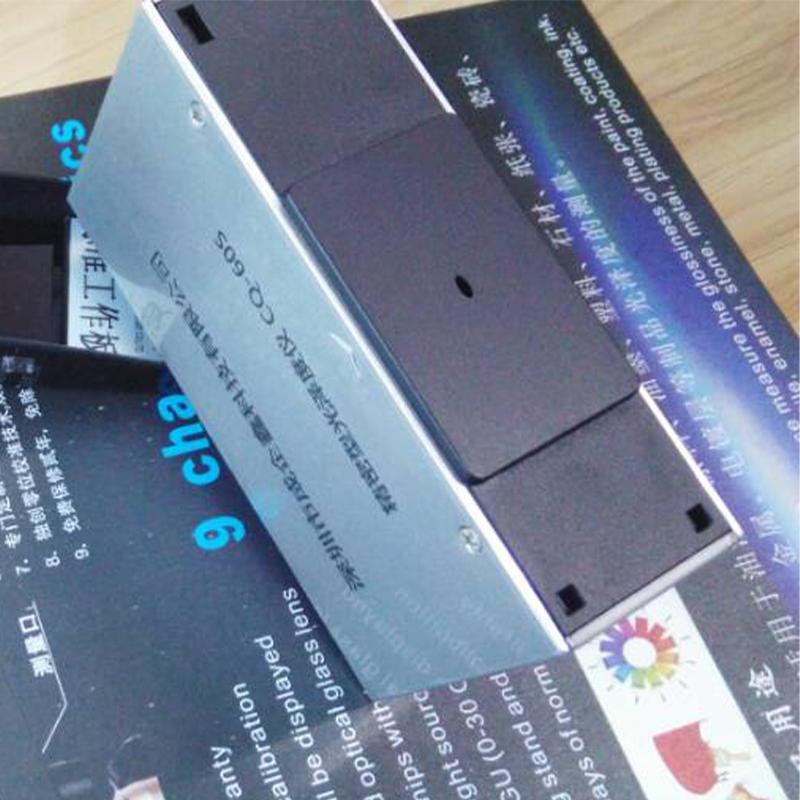

The CQ-60S small hole type gloss meter has an oval measuring window of 1.5x3mm and a small measuring aperture. It is a high-precision, compact and portable gloss meter. The small hole gloss meter is not only suitable for flat surface gloss measurement, but also widely used for gloss value measurement on coating surfaces with curved surfaces or special irregular shapes. The gloss meter is manufactured in compliance with ISO-2813 standards. It is suitable for measuring the surface glossiness of complex-shaped surfaces such as mechanical parts, jewelry, handicrafts, plastic pipes, hardware decoration, test samples, etc.

Instructions

Press the switch, place the small hole gloss meter on the black glass standard plate, and rotate the adjustment button to make the displayed value the same as the nominal value of the standard plate.

Measurement skills

1. When moving from a place with a lower temperature to a place with a higher temperature (such as outdoor to indoor in winter), please wait for a while before taking the measurement. (Because the optical lens changes from a place with low temperature to a place with high temperature

The surface of the lens will become foggy)

2. Please do not measure in an environment where the object under test is exposed to direct sunlight to avoid affecting the measurement value.

3. When using a small hole gloss meter to measure a curved surface object, in order to ensure that the small hole is completely covered, the measuring hole of the gloss meter can be slowly covered with the measured object along the tangent line of the measured curved surface.

Until the light spot on the measured object is no longer visible (the white light spot illuminated by the measuring hole on the measured object).

Precautions

1. Body:

1) The gloss meter is an optical precision instrument and should avoid severe impact.

2) Try to place it in a dry and clean environment.

3) When the gloss meter is not suitable, please place the detection window downward to avoid contamination in the measurement chamber.

4) After the measurement, be sure to turn off the power, put the small hole gloss meter into the instrument box and put it in a clean place for the next measurement.

2. Accessories:

1) Keep the standard plate of the small hole gloss meter clean to avoid measurement errors caused by inaccurate readings during instrument calibration.

2) When the standard plate is stained, please wipe it with lens tissue or lens cleaning cloth. The black standard plate can be wiped with lens paper dipped in absolute ethanol.

3. Calibration:

1) When calibrating the small hole gloss meter, the single angle is placed in the inner frame of the standard plate box.

Packing list：host x1, standard blackboard x1, wiping cloth x1, manual x1, certificate x1, instrument case x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
