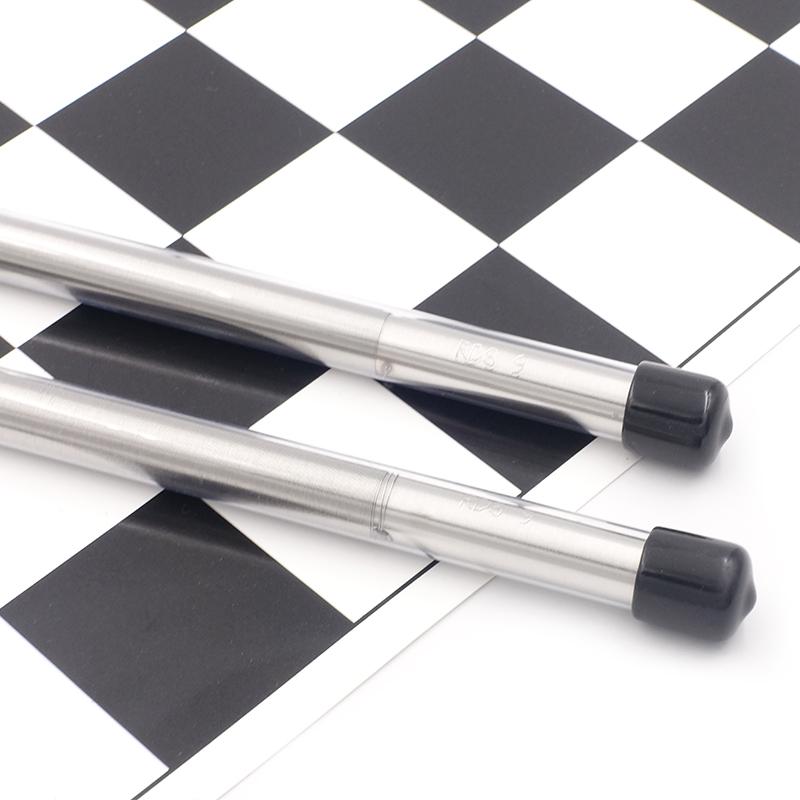

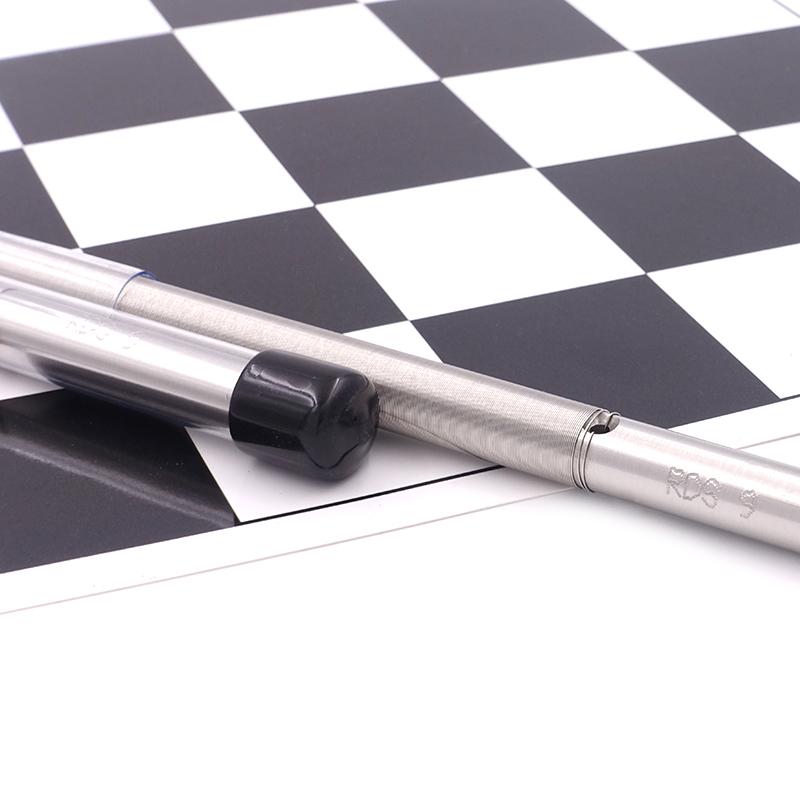

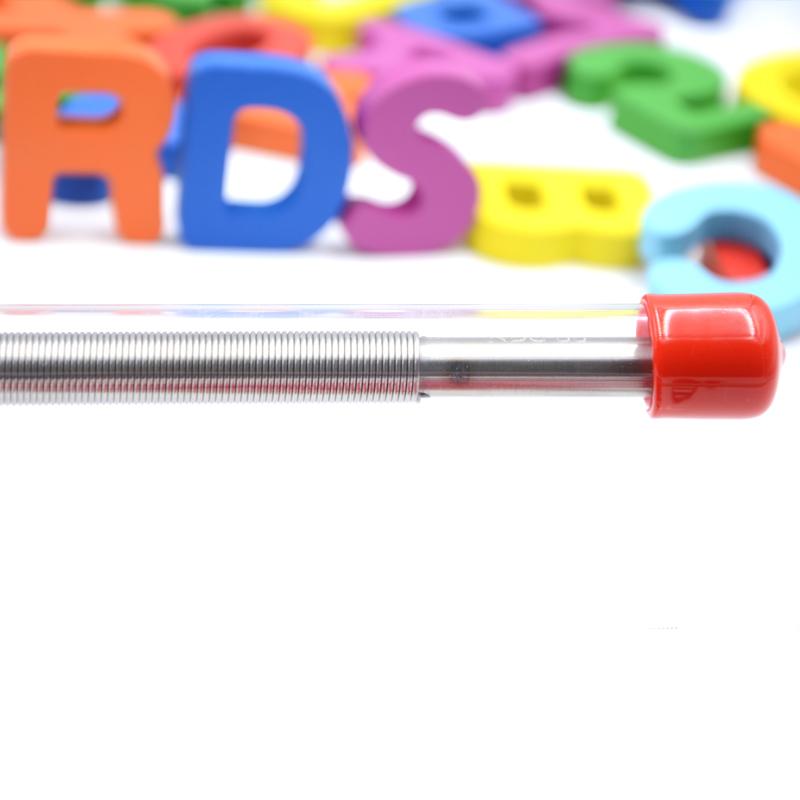

RDS #9 Mayer Rods WFT 20.6 μm length 400mm

A Hello, the RDS9 rod is 20.6 μm and can be used.

A Hello, it's the same.

A Hello, the film Film thickness of RDS9 #stick is 20.6 microns, which can be replaced.

A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.

A Model 9 #3/8 "Applicator rod

A Yes, the specific selection can be selected by the appropriate rod number corresponding to the rod model and film thickness, by optimizing a series of factors such as wet film thickness, Spreader speed, surfactant concentration, ethylene glycol concentration, film heat treatment temperature, etc., so that It is worth the conductive film compound requirements.

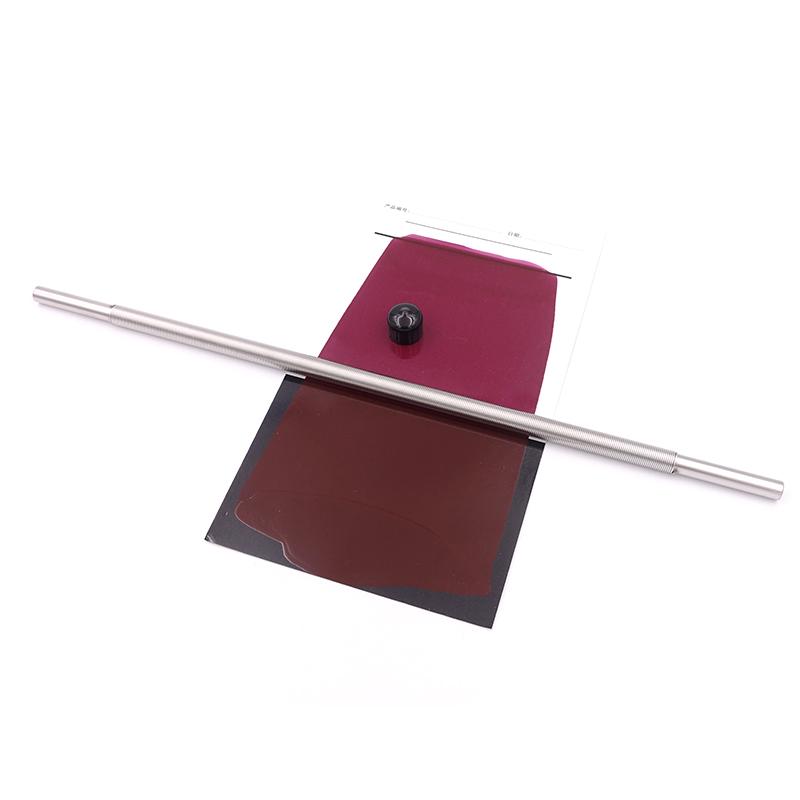

A Yes, choose quartz Glass as the substrate, with Mayer Rods Coating prepared above coated on the surface of the treated quartz Glass substrate, at room temperature to evaporate the solvent into the oven, at a certain temperature curing film formation.

A It can be roughly calculated according to dry film = wet film × solid parts. The wet film of RDS No. 6 rod is 13.7 μm, and the solid content is about 29% by calculation. If you want to make 6 μm and 8 μm dry films, you need to scrape the wet film 20.5 microns and 27.4 microns, which corresponds to RDS rod, which can be close to RDS 9 #and RDS 12. Thank you for your consultation.

A Hello, this wire rod product is currently on cash sale. The indent before 4:00 pm on the same day will be shipped on the same day, and the indent after 4:00 pm will be shipped the next day.
