yushindt UM-1 Ultrasonic Thickness Gauge Manual,OI

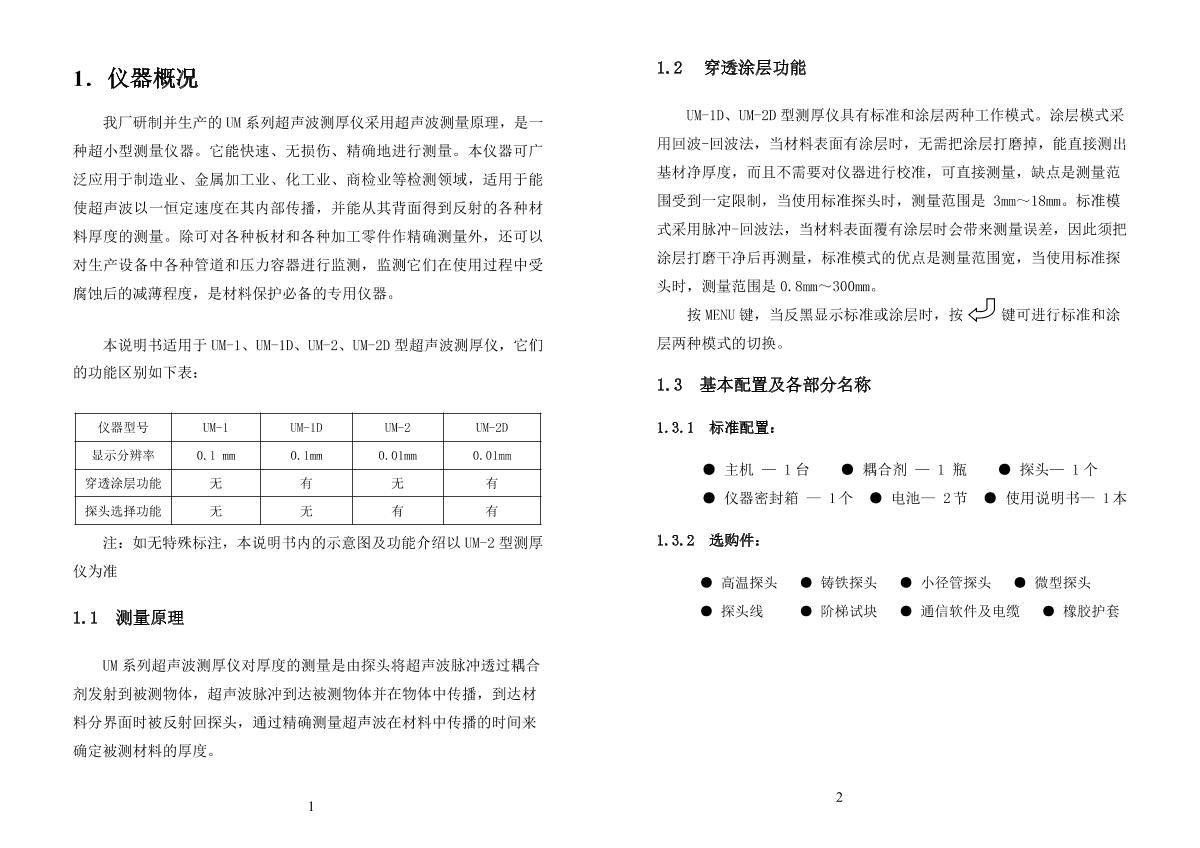

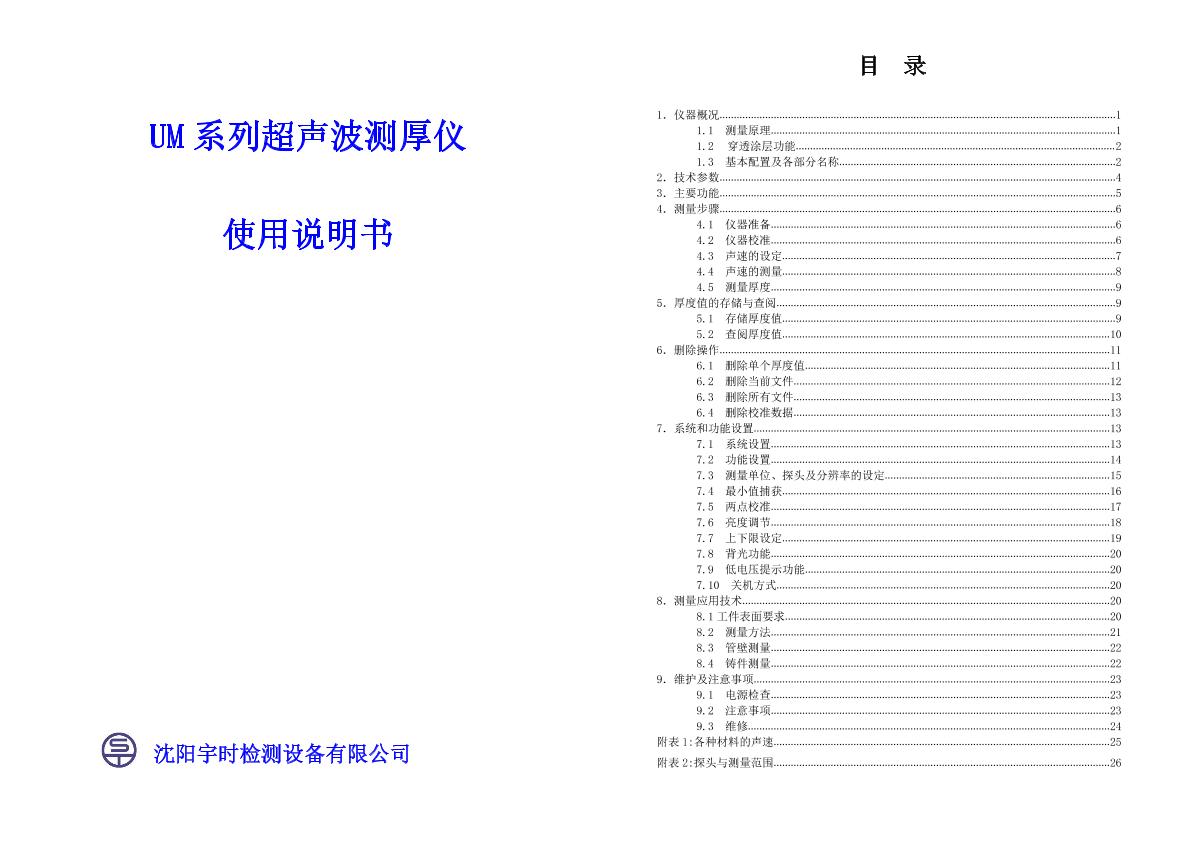

宇时先锋 UM-1超声波测厚仪操作说明书第1页

宇时先锋 UM-1超声波测厚仪操作说明书第2页

宇时先锋 UM-1超声波测厚仪操作说明书第3页

宇时先锋 UM-1超声波测厚仪操作说明书第4页

宇时先锋 UM-1超声波测厚仪操作说明书第5页

Continue to read
