Specifications
| Measurement range | Coating mode: 3~ 20mm (using standard probe); < br > Standard mode: 0.8~ 300mm (depending on the probe and the material being tested) |
| Probe style | Split probe |
| Speed of sound | 1000~9999m/s |
| Display resolution | 0.1mm |
| Probe contact temperature | -10~50℃ |
| Data storage | Divide 5 arrays to store 500 thickness values |
| Repeatability | 0.1mm |
| Operating language | You can choose Chinese or English. |
| Display | 128 × 64 dot matrix LCD display (EL backlight) |
| Application Software | UmView software for transferring, storing, analyzing and editing documents of measurement data (optional) |
| Host size | 14*7*3mm |
| Weight | 210G (including battery) |
| Power Supply | Link 1.5V AA battery, when the power is insufficient, there is a low Voltage prompt. |
| Calibration method | Zero point calibrated, two point calibrated |
| Measurement update rate: | 4Hz |
| V-path correction | Automatic V path correction to compensate for non-linearity of dual crystal probe |
| V-path correction | Automatic V path correction to compensate for non-linearity of dual crystal probe |
| Interface | USB interface or RS232 serial port (optional) |
Packing list

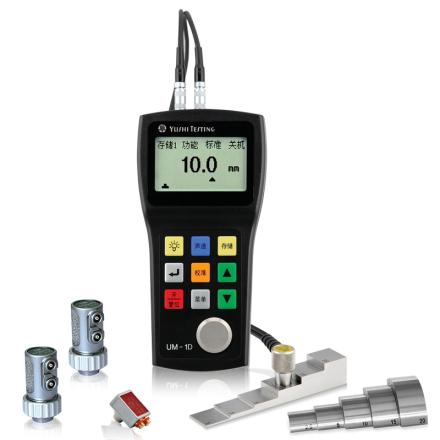

UM-1D thickness gauge, standard probe, instrument box, two alkaline batteries, coupling agent, operation manual, certificate of conformity, packing list
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/7184/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
