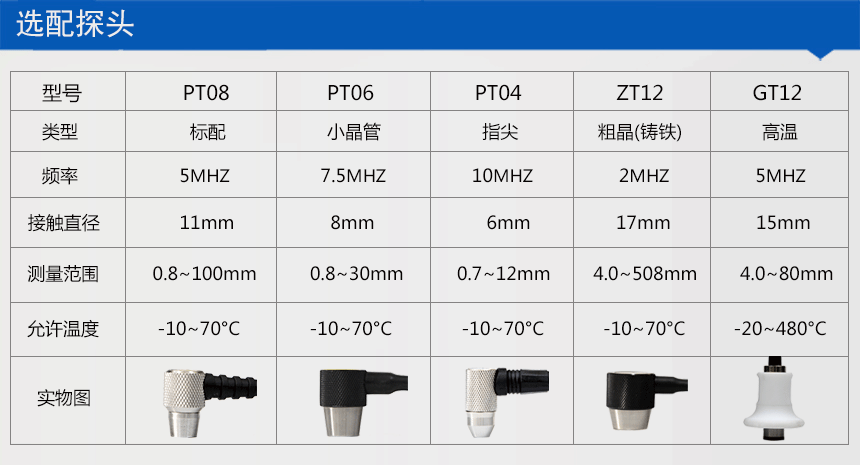

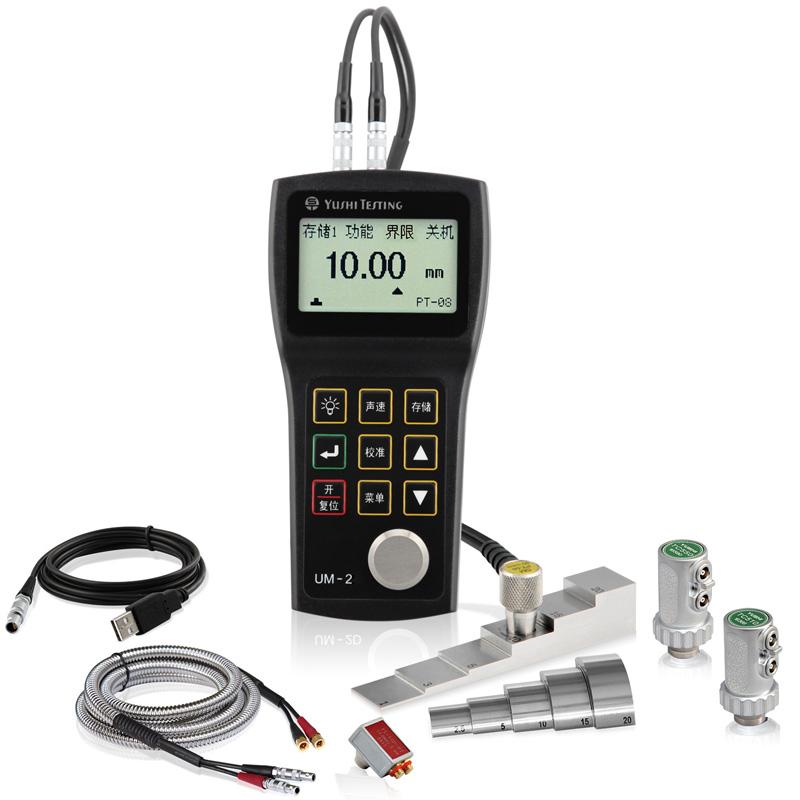

YUSHINDT UM-2 Ultrasonic Thickness Gauge Built-in 7 kinds of probe compensation lines, two-point calibrated
UM-2
yushindt UM-2 Ultrasonic Thickness GaugeSPEC
yushindt UM-2 Ultrasonic Thickness GaugeDetails

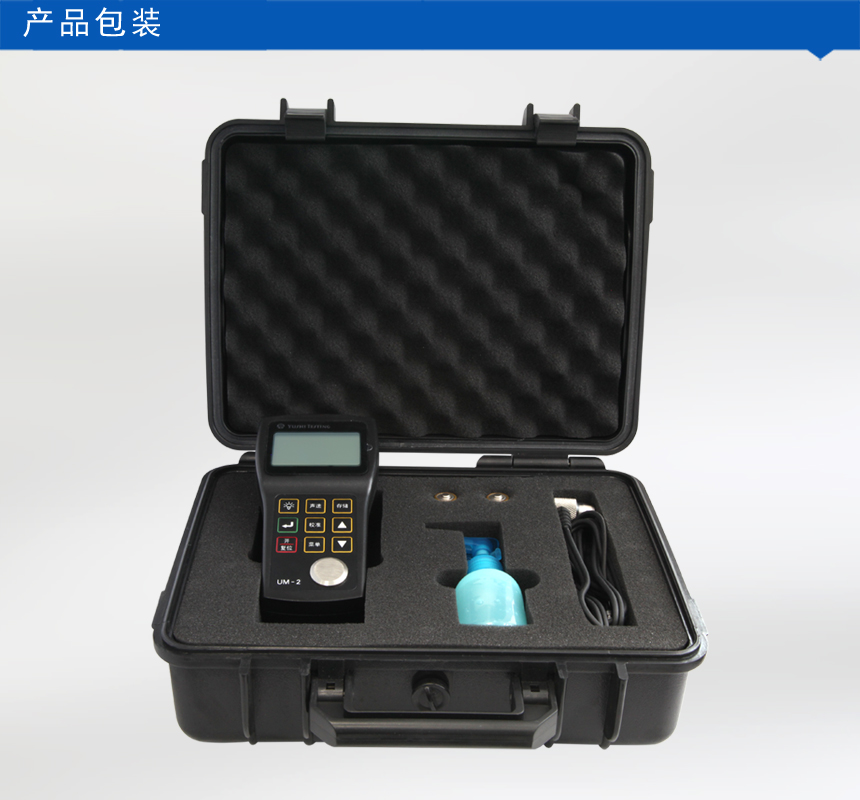

yushindt UM-2 Ultrasonic Thickness GaugePacking list
- SKU
- NB007185
- Measurement range
- 0.8~300mm
- Probe Frequency
- 4MHz
- Probe style
- Split probe
- measurement error
- ±0.05mm(<10mm)；±0.5%H(>10mm)
- Display resolution
- Millimeter-0.01, 0.1 inch-0.001, 0.01
- unit system
- mm/inch
- Calibration method

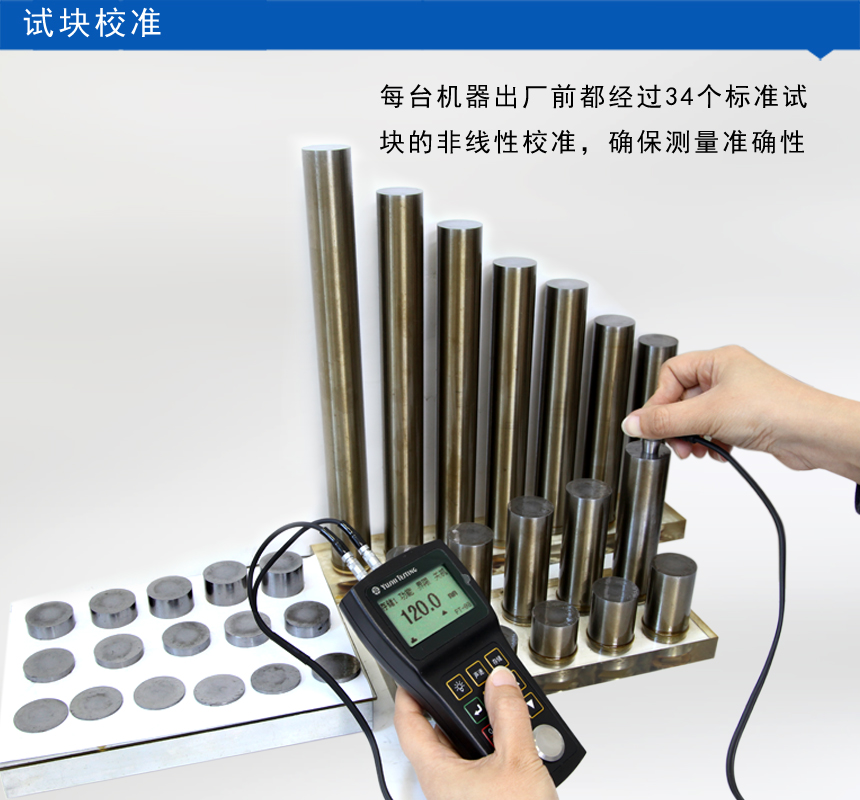

- One point calibrated, zero point calibrated, two point calibrated
- Repeatability
- ±0.05mm
- Storage Capacity
- 500 Measured values, 5 groups
- Speed of sound
- 1000~9999m/s
- Speed of sound storage
- Can store 5 different materials Speed of sound
- Display
- 128 × 64 dot matrix LCD with EL backlight, adjustable contrast ratio
- Operating language
- Chinese or English
- Interface
- USB interface or RS232 serial port (optional)
- Application Software

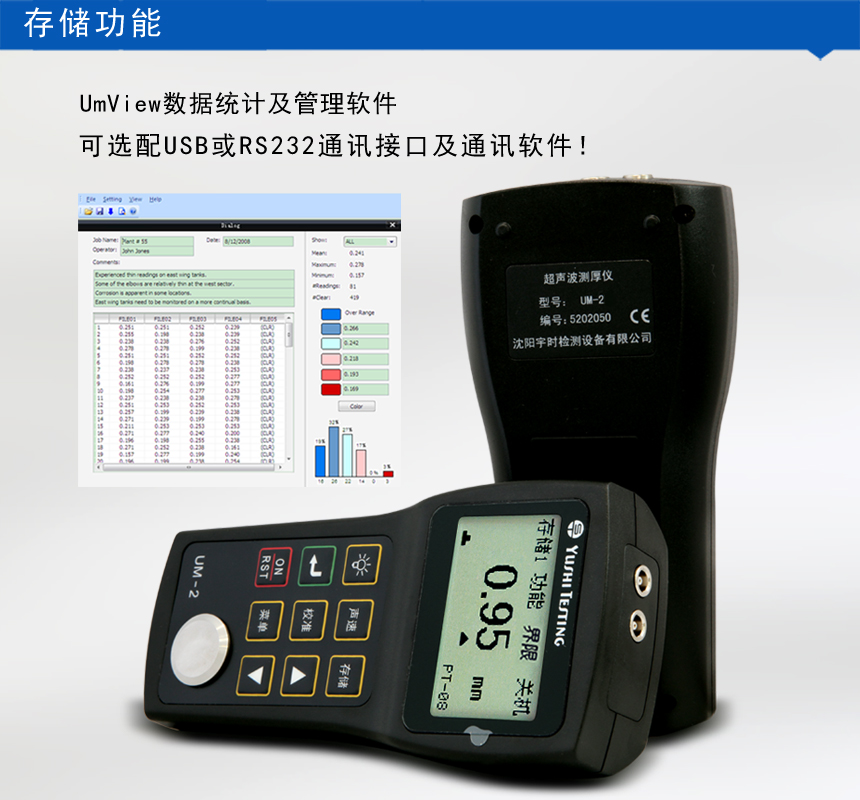

- UmView software for transferring, storing, analyzing and editing documents of measurement data (optional)
- Environmental temperature
- -10~50℃
- Power Supply
- 2 * 1.5V AA battery, when the power is insufficient, there is a low Voltage prompt
- Operating Time
- 200h
- Host size
- 149*73*32mm
- Weight
- 200G (including battery)

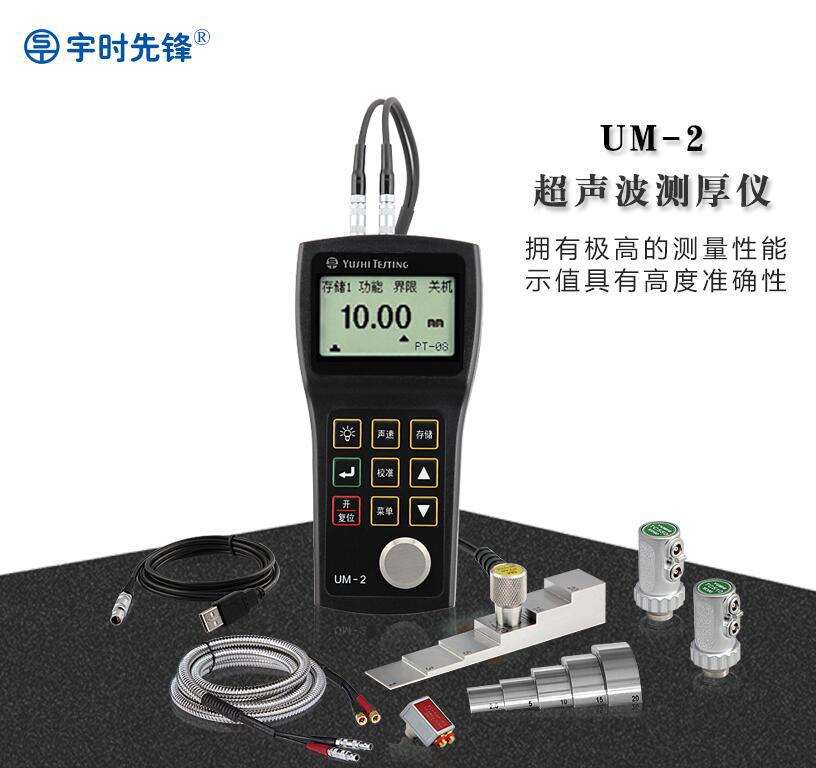

UM-2 Ultrasonic Thickness Gauge 0.01mm Resolution, 128×64 Dot Matrix Graphic LCD Screen, 500 Thickness Values Storage, High/Low Limit Alarm, Minimum Value Capture, Two Point Calibration, V Path Correction, mm/inch, EL Backlight, Chinese/English Interface. Built-in 7 probe options, one machine for multiple purposes
Applications:

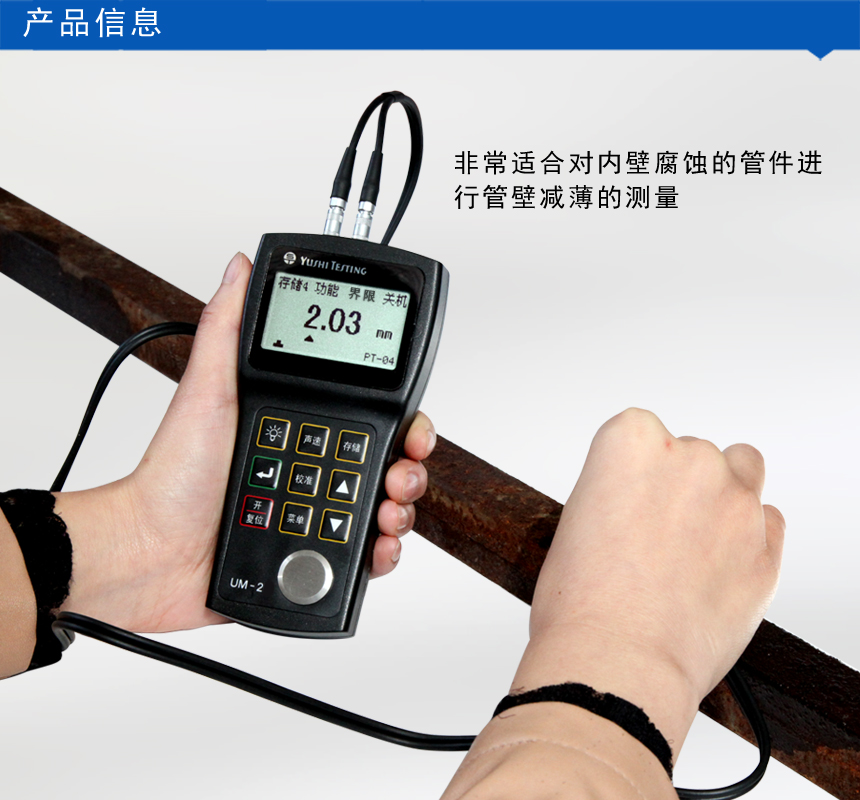

It can measure the thickness of metal, high-temperature pipes, pipes, plates (steel plates, aluminum plates), plastics, iron pipes, PVC pipes, glass and other materials. It can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection industry and other testing fields, and can also monitor various pipelines and pressure vessels in production equipment to monitor the degree of thinning after corrosion during use, and is a special instrument required for material protection.
