Specifications
| Measurement range | 0.8~ 300mm (depending on the probe and the material being tested), coating mode: 3~ 20mm (using standard probe) |
| Probe Frequency | 4MHz |
| Probe style | Split probe |
| measurement error | ±0.05mm(≤10mm)；(±0.5%H+0.01)mm(>10mm) |
| Display resolution | Millimeter-0.01, 0.1 inch-0.001, 0.01 |
| unit system | mm/inch |
| Calibration method | One point calibrated, two point calibrated |
| Repeatability | ±0.05mm |
| Storage Capacity | 500 Measured values, 5 groups |
| Speed of sound | 1000~9999m/s |
| Speed of sound storage | Can store 5 different materials Speed of sound |
| Display | 128 × 64 dot matrix LCD with EL backlight, adjustable contrast ratio |
| Operating language | Chinese or English |
| Interface | USB interface or RS232 serial port (optional) |
| Application Software | UmView software for transferring, storing, analyzing and editing documents of measurement data (optional) |
| Environmental temperature | -10~50℃ |
| Power Supply | 2 * 5 battery |
| Operating Time | 200h |
| Host size | 149*73*32mm |
| Weight | 200G (including battery) |
Packing list

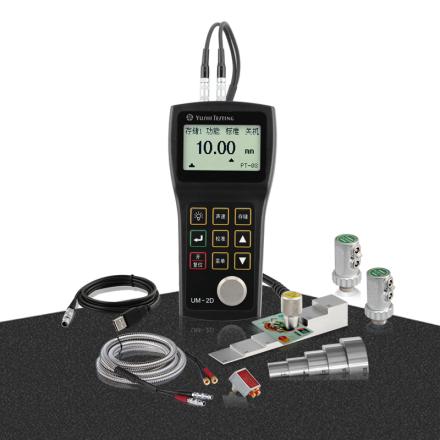

UM-2D thickness gauge, standard probe, instrument box, two alkaline batteries, coupling agent, operation manual, certificate of conformity, packing list
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/7186/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
