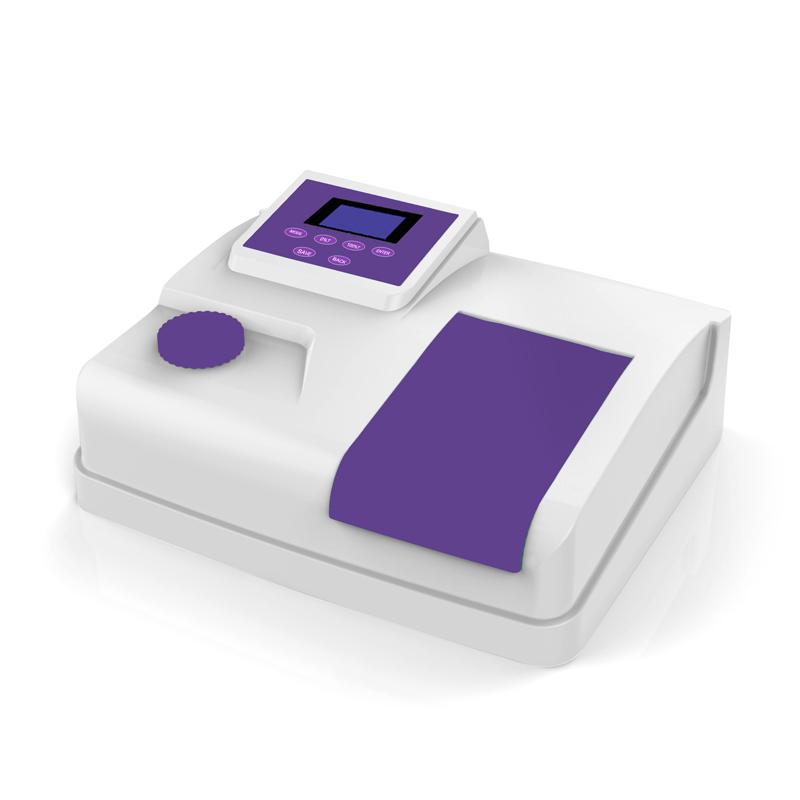

YouKe V1000 visible Spectrophotometer Wavelength range 320nm~ 1020nm
V1000
Yoke V1000 SpectrophotometerSPEC
Yoke V1000 SpectrophotometerDetails
Yoke V1000 SpectrophotometerPacking list
- SKU
- NB007236
- Light spectrum Bandwidth
- 4Nm (2nm optional)
- Wavelength range
- 320~1020nm
- Wavelength Precision
- ±2nm
- Wavelength Repeatability
- 1nm
- stray light
- 0.15%T@360nm
- Measurement range of transmittance
- 0~200%T
- Absorption range
- -0.3A~3A
- Transmittance Precision
- ±0.5%T
- Transmittance Repeatability
- 0.2%T
- bright current
- ≤0.3%T/3min
- dark current
- ≤0.1%T/3min
- receiving element
- Photocells, photovoltaic cells
Features
1. LCD liquid crystal display
2. The optimized CT optical path ensures ultra-low stray light
3. The host can store data
4. Simple lamp source replacement operation
Product features
A: Measure the absorbance of the sample;
T: Measure the transmittance of the sample;
C: Enter the F-number to measure the concentration, or calculate the F-value with the standard solution;
F: Enter the F-value to measure the concentration
Diagram of the display
T - Light transmittance (Trans)
A - Absorbance
C – Concentration (Conc)
F – Slope (FacTor)
-88.88% T Abs – the area where the measurement data is displayed
888M+RM - Storage status display area

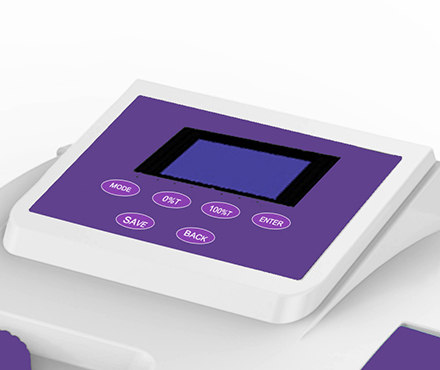

Detail of the operation panel
Applications
Yoke V1000 visible Spectrophotometer can do qualitative and quantitative analysis of sample substances in the ultraviolet and visible spectrum regions, and can be widely used in clinical testing, biochemistry, petrochemical, environmental testing, food and quality control departments, and can be used as a university of higher learning3. The concentration of known standard samples is measured by the concentration of unknown samples.
