YOKE DSH-10A Halogen moisture meter weighing value up to 10g accuracy 10mg

SE
The new product of SH-10A adopts high-precision thermal insulation Sensors, halogen lamp heating drying, LCD screen, built-in RS232C input interface.
Model：
Certificate
Contact
Details SPEC CAT OI

Yoke DSH-10A Halogen moisture meterSPEC

Yoke DSH-10A Halogen moisture meterDetails

Yoke DSH-10A Halogen moisture meterPacking list

SKU
NB007252
Maximum weighing value
10g
Weighing readability
10mg
Sexual repeability
0.5%
Minimum sample size
0.5g
Recommended sample size
3-10g
Timer
1~99min
Heating method
standard
Communication interface
RS232
How to end the measurement
Timing, automatic
Heating temperature range
50~180℃
Display content
Moisture%, solids%, Weight, time, date, etc
Pan size
F100mm
Dimensions
265*160*150mm
Net Weight
5kg
Total Weight
6kg
heating source
Halogen lamp
DSH-10A
Halogen moisture meter
The new product of SH-10A adopts high-precision thermal insulation Sensors, halogen lamp heating drying, LCD screen, built-in RS232C input interface.

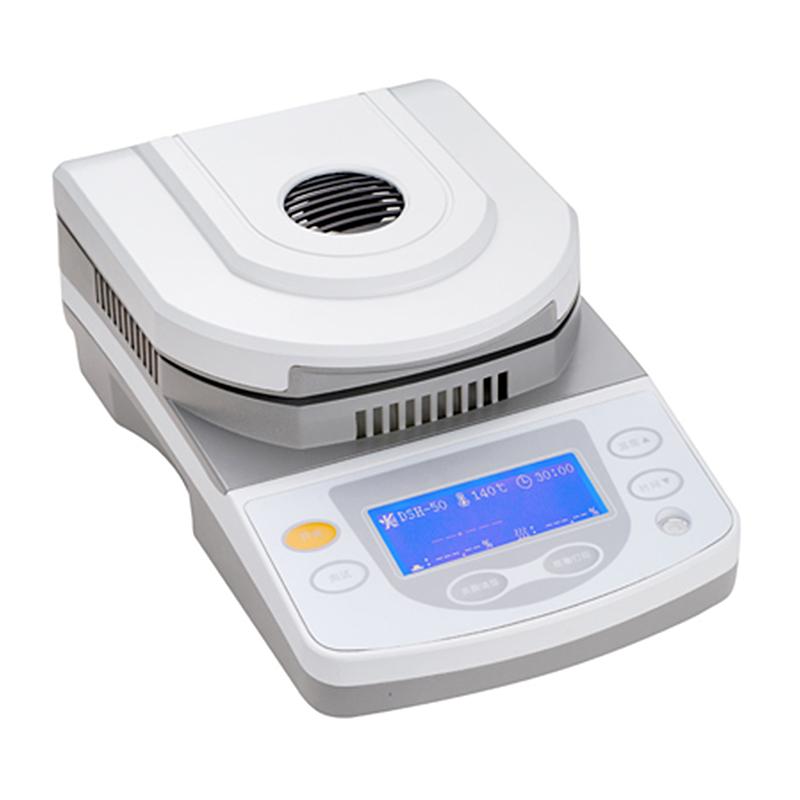

YOKE DSH-10A Halogen moisture meter weighing value up to 10g accuracy 10mg Picture

Features

1. The large high-resolution backlit dot-matrix LCD is easy to operate in the dark, and the vision is more comfortable.

2. The key-type chain plate makes the operation more convenient.

3. High-precision heat-insulated sensor, the collected data temperature is reliable.

4. It adopts halogen lamp to heat and dry, so the temperature rises rapidly and the test time is short.

Features

1. During the test, the drying state can be directly confirmed and the end time can be estimated.

2. Due to the automatic tare function, it can be measured continuously in real time, and can also be accurately measured through zero drift correction

3. Built-in R232C output interface, which can be connected to peripheral devices such as computers and printers.

Applications

The Halogen Moisture Analyzer is used to quickly determine the free moisture of various samples such as chemical raw materials, grains, minerals, biological products, food, pharmaceutical raw materials, paper, and textile raw materials.

plan

Yoke DSH-10A Halogen Moisture Meter Display

Models

modelMaximum weighing valuereadabilityrepeatability
DSH-10A10g10mg0.50%
DSH-50A-150g1mg0.20%
DSH-50A-550g5mg0.30%
DSH-50A-1050g10mg0.50%
Other parameters
Minimum sample size0.5g
Recommended sample size3 – 10g
heating time1- 99 minutes in intervals of 10 seconds
heating programstandard
Operating temperature range10-30℃
communicationSerial RS232
End point controltiming, automatic
Heating temperature range50°C to 160°C (1°C interval)
Display contentSolid %, Moisture %, Weight, Time, Temperature
Pan size100mm
Dimensions285mm*160mm*150mm
net weight3.0kg
gross weight4.2kg
heating sourceHalogen lamp


FAQ
QHow many degrees Celsius is suitable for heating this kind of Halogen moisture meter?
A Selecting a suitable heating temperature requires neither analysis nor change the chemical structure of the sample, generally set to 105 ° C, unless the sample and industry have special requirements.
QDoes the DSH moisture meter need to be weight calibrated?
A Moisture meters use relative weight to measure results, so small deviations from absolute weight have little effect on measurement accuracy. Moisture meters have stable weighing performance and are less affected by temperature, and can maintain calibrated results for a long time, so weight calibrating is not required.
QWhat is the heating range of the DSH-10A halogen moisture tester?
A Hello, the heating range of this DSH-10A halogen moisture tester is 50~ 180 ° C.
QDoes this moisture tester come with peeling function?
A Hello, DSH-10A halogen moisture tester, this one has a peeling function.
QDoes this Halogen moisture meter comply with GB/T13025.3 standard?
A The Halogen moisture meter is suitable for GB/T13025.3, please consult customer service for detailed application definition
