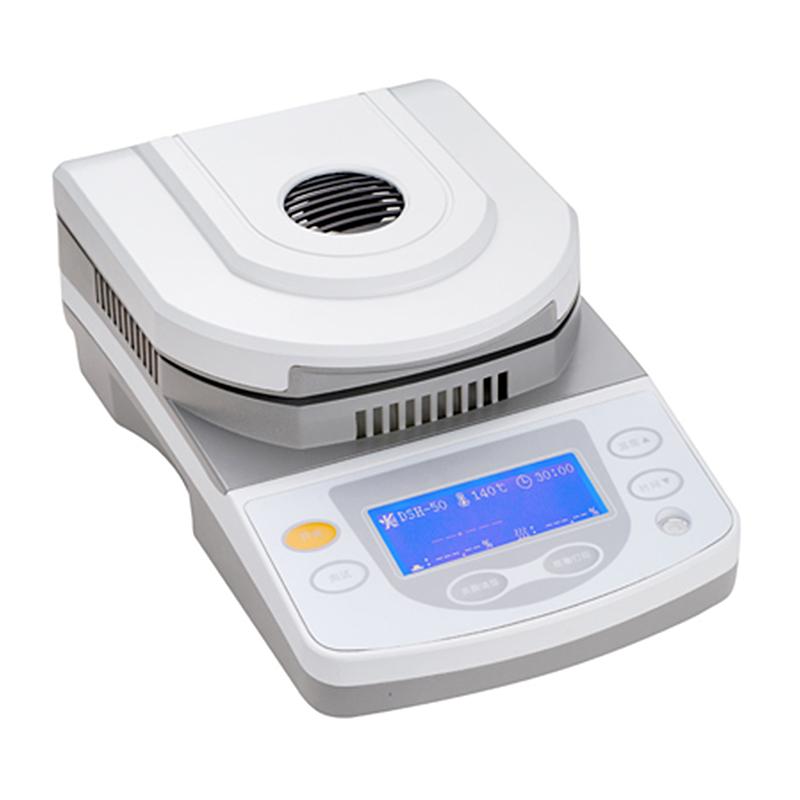

YOKE DSH-50A-1 halogen fast moisture meter weighing value up to 50g accuracy 1mg

SE
Halogen lamp heating source, reading accuracy of 1mg, push-button chain plate, weighing up to 50g, recommended sample volume of 3-50g, high-precision insulated Sensors.
Model:
Certificate

Yoke DSH-50A-1 Halogen moisture meterSPEC

Yoke DSH-50A-1 Halogen moisture meterDetails

Yoke DSH-50A-1 Halogen moisture meterPacking list

SKU
NB007254
Maximum weighing value
50g
Weighing readability
1mg
Sexual repeability
0.2%
Minimum sample size
0.5
Recommended sample size
3-50g
Timer
1~99min
Heating method
standard
Communication interface
RS232
How to end the measurement
Timing, automatic
Heating temperature range
50~180℃
Display content
Moisture%, solids%, Weight, time, date, etc
Pan size
F100mm
Dimensions
265*160*150mm
Net Weight
5kg
Total Weight
6kg
heating source
Halogen lamp
DSH-50A-1
Halogen moisture meter
Halogen lamp heating source, reading accuracy of 1mg, push-button chain plate, weighing up to 50g, recommended sample volume of 3-50g, high-precision insulated Sensors.
YOKE DSH-50A-1 halogen fast moisture meter weighing value up to 50g accuracy 1mg Picture

Features

1. The large high-resolution backlit dot-matrix LCD is easy to operate in the dark, and the vision is more comfortable.

2. The key-type chain plate makes the operation more convenient.

3. High-precision heat-insulated sensor, the collected data temperature is reliable.

4. Using halogen lamps to heat and dry, the temperature rises rapidly and the test time is short.

Features

1. During the test, the drying state can be directly confirmed and the end time can be estimated.

2. Due to the automatic tare function, it can be measured continuously in real time, and can also be accurately measured through zero drift correction

3. Built-in R232C output interface, which can be connected to peripheral devices such as computers and printers.

Applications

The Halogen Moisture Analyzer is used to quickly determine the free moisture of various samples such as chemical raw materials, grains, minerals, biological products, food, pharmaceutical raw materials, paper, and textile raw materials.

plan

Yoke DSH-10A Halogen Moisture Meter Display

Models

modelMaximum weighing valuereadabilityrepeatability
DSH-10A10g10mg0.50%
DSH-50A-150g1mg0.20%
DSH-50A-550g5mg0.30%
DSH-50A-1050g10mg0.50%
Other parameters
Minimum sample size0.5g
Recommended sample size3 – 10g
heating time1- 99 minutes in intervals of 10 seconds
heating programstandard
Operating temperature range10-30℃
communicationSerial RS232
End point controltiming, automatic
Heating temperature range50°C to 160°C (1°C interval)
Display contentSolid %, Moisture %, Weight, Time, Temperature
Pan size100mm
Dimensions285mm*160mm*150mm
net weight3.0kg
gross weight4.2kg
heating sourceHalogen lamp


FAQ
QIn addition to testing the moisture percentage, I wonder if it is possible to measure the Solid content in the sample liquid?
A You dry out the moisture, which is the solids content.
QWould you like to inquire whether this one is only suitable for testing paper moisture or can also test Miscellaneous? What about Resin? Such as PET or granular Resin
A DSH-50A-1 (needs to be crushed, otherwise it is uncertain), this one can
QHow many degrees Celsius is suitable for heating this kind of Halogen moisture meter?
A Selecting a suitable heating temperature requires neither analysis nor change the chemical structure of the sample, generally set to 105 ° C, unless the sample and industry have special requirements.
QDoes the DSH moisture meter need to be weight calibrated?
A Moisture meters use relative weight to measure results, so small deviations from absolute weight have little effect on measurement accuracy. Moisture meters have stable weighing performance and are less affected by temperature, and can maintain calibrated results for a long time, so weight calibrating is not required.
QIs this Halogen moisture meter ASTMD4017-02 compliant?
A The Halogen moisture meter is suitable for ASTMD4017-02, please consult customer service for detailed application definition
