YOKE DSH-100A-5 Halogen moisture meter halogen lamp heating rapid determination of moisture

Using halogen lamp heating technology, heating up quickly shortens the test time; Equipped with high-precision insulated Sensors to ensure reliable temperature acquisition; Capacity 100g, readability up to 5mg; Support automatic peeling and zero drift correction function.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

Yoke DSH-100A-5 Halogen moisture meterSPEC

Yoke DSH-100A-5 Halogen moisture meterDetails

Yoke DSH-100A-5 Halogen moisture meterPacking list

SKU
NB007259
Maximum weighing value
100g
Weighing readability
5mg
Repeatability
0.3%
Minimum sample size
0.5g
Recommended sample size
3-100g
Timer
1~99min
Heating source
standard
Communication interface
RS232
How to end the measurement
Timed, automatic
Heating Temperature range
RT+50~180℃
Display parameters
Moisture%, solids%, Weight, time, date, etc
Pan Size
Φ100mm
Dimensions
265*160*150mm
Net Weight
5kg
Total Weight
6kg
Heating source
Halogen lamp
DSH-100A-5
Halogen moisture meter
Using halogen lamp heating technology, heating up quickly shortens the test time; Equipped with high-precision insulated Sensors to ensure reliable temperature acquisition; Capacity 100g, readability up to 5mg; Support automatic peeling and zero drift correction function.
YOKE DSH-100A-5 Halogen moisture meter halogen lamp heating rapid determination of moisture Picture

Features

1. Large high-resolution back-mounted light array LCD screen, easy to operate in dark places, more comfortable vision.

2. Push-button chain disc makes the operation more convenient.

3. High-precision heat-insulated sensor, reliable data temperature.

4. Halogen lamp is used for heating and drying, the temperature rises rapidly, and the test time is short.

Product features

1. During the test, the drying state can be directly confirmed and the end time can be estimated.

2. Because of the automatic tare function, the measurement can be carried out continuously in real time, and the accurate measurement can also be carried out by zero drift correction

3. Built-in R232C output interface, which can be connected to computers, printers and other peripheral devices.

Applications

Yoco DSH-100A-5 halogen Moisture Meter is used to quickly determine the free moisture of various samples such as chemical raw materials, grains, minerals, biological products, food, raw materials, paper, textile raw materials, etc.

Pictures

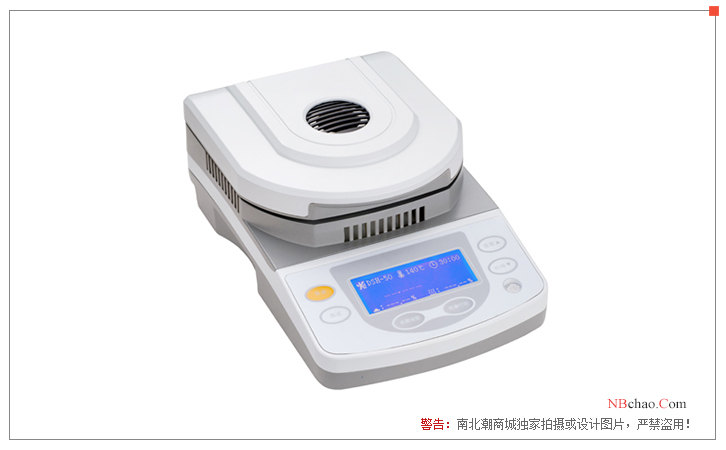

Yoke DSH-100A-5 halogen Moisture Meter display diagram

FAQ
QHow many degrees Celsius is suitable for heating this kind of Halogen moisture meter?
A Selecting a suitable heating temperature requires neither analysis nor change the chemical structure of the sample, generally set to 105 ° C, unless the sample and industry have special requirements.
QDoes the DSH moisture meter need to be weight calibrated?
A Moisture meters use relative weight to measure results, so small deviations from absolute weight have little effect on measurement accuracy. Moisture meters have stable weighing performance and are less affected by temperature, and can maintain calibrated results for a long time, so weight calibrating is not required.
QDSH-100A-5 halogen Moisture Analyzer Do you have requirements for samples?
A Hello, it is recommended to use a paste-like, fat-containing substance that can be melted.
QDSH-100A-5 Halogen moisture meter flashes on the right side of the display screen showing "< 0.5g" What's going on?
A Hello, it may be that the sample weighing value is less than 0.5g. It is recommended to increase the sample volume and press the test button. Start measuring the moisture content. Or directly press the test button to cancel the blinking and return to the weighing mode.
