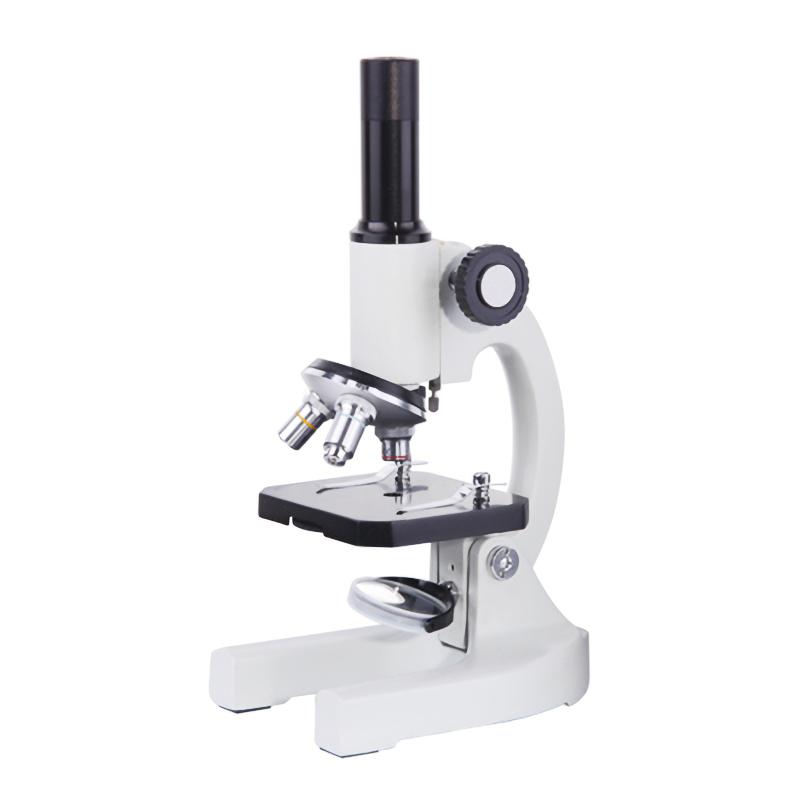

YOKE XSP-1CA Bio Microscope Single Eye Bar Turntable 40-640X

Three hole converter with monocular observation head, equipped with 4X, 10X, 40X color difference objective lens and 16X eyepiece, support 40-640X magnification range, light bar turntable 6 hole design for easy adjustment of lighting.

Model：

XSP-1CA

Certificate

Yoke

Manufacturer authorization

Contact

Details SPEC OI

Yoke XSP-1CA MicroscopeSPEC

Yoke XSP-1CA MicroscopeDetails

Yoke XSP-1CA MicroscopePacking list

SKU: NB007260

barrel: monocular

Monocular observation head: Monocular 45 ° tilt, 360 ° swirl/spin

Total magnification: 40X~640X

Objective lens converter: Three hole converter

Mechanical barrel length: 160mm

eyepiece: 16X

objective lens: 4X、10X、40X

stage: Tablet Cube Platform

Movement range: 70×30mm

condenser: Light bar turntable 6 holes

Reflector: Flat and concave reflectors

condenser: Light bar turntable 6 holes

eyepiece: 16X

Objective for eliminating color difference: 4X，10X，40X

lighting: Halogen lamp 6V/20W

Power: Natural light source

XSP-1CA

Microscope

Introduction

Yoke XSP-1CA monocular biological microscope has the advantages of complete functions, clear imaging, and high cost performance. It is suitable for small hospitals to do the three routine tests of the human body and small units such as agriculture, forestry, fishery and aquaculture to do analysis tests. Total magnification: 40-640X.

Features

1. Traditional model, stable quality and high cost performance.

2. Light bar turntable.

plan

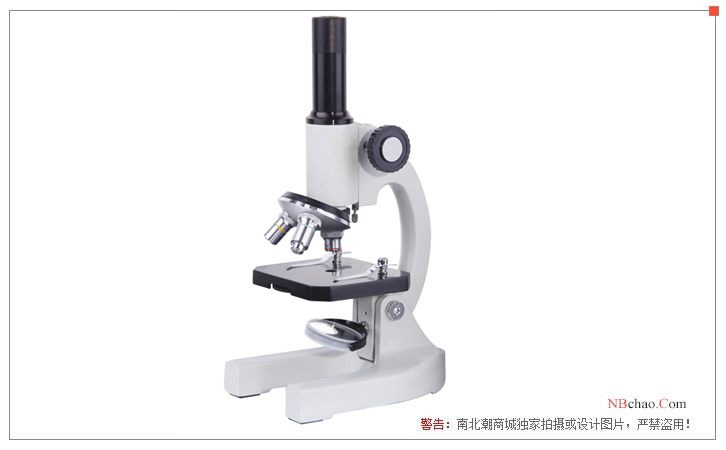

Yuke XSP-1CA monocular biological microscope display

Comparison of parameters of Yoke biological microscope

model	XSP-1CA	XSP-2CA	XSP-3CA	XSP-8CA	XSP-10CA
lens barrel	Monocular	binocular	Monocular	binocular	Three eyes
Condenser and aperture	Diaphragm turntable 6 holes	Abbe Condenser Iris Diaphragm and Filters	Abbe Condenser Iris Diaphragm and Filters	Abbe Condenser Iris Diaphragm and Filters	Abbe Condenser Iris Diaphragm and Filters
eyepiece	16X	Wide-angle eyepiece WF10X, Huygens eyepiece H16X	Wide-angle eyepiece WF10X, Huygens eyepiece H16X	Wide-angle eyepiece WF10X, Huygens eyepiece H16X	Wide-angle eyepiece WF10X, Huygens eyepiece H16X
Achromatic Objectives	4X, 10X, 40X	4X,10X,40X(S), 100X(S)	4X,10X,40X(S), 100X(S)	4X,10X,40X(S), 100X(S)	4X,10X,40X(S), 100X(S)
illumination	Halogen lamp 6V/20W	Halogen lamp 6V/20W	Halogen lamp 6V/20W	Halogen lamp 6V/20W	LED light source or halogen lamp
power supply	natural light source	light source	light source	light source	light source
