YOKE XSP-10CA Bio Microscope Trinocular Abbe Condenser LED Light source 1600X amplification

SE
The three-eyepiece tube supports 360-degree swirl/spin observation, is equipped with Abbe condensers and variable light bars, with a total magnification of 40X-1600X and a fretting focusing grid value of 0.002mm. It provides accurate sample observation capabilities.
Model：
Certificate
Contact
Details SPEC OI
Similar products

Yoke XSP-10CA MicroscopeSPEC

Yoke XSP-10CA MicroscopeDetails

Yoke XSP-10CA MicroscopePacking list

SKU
NB007264
barrel
trinocular
Objective for eliminating color difference
4X/0.10NA, 10X/0.25NA, 40X/0.65NA, 100X/1.25NA (spring, oil) (magnification/numerical aperture)
Flat field eyepiece
10X/18 (mm), 16X/11 (mm) (magnification/field aperture)
observation head
360 ° swirl/spin, single cylinder 30 ° tilt
Binocular auxiliary lens
1X
condenser
Abbe condenser with variable light bar and color filter, numerical aperture 1.25NA
Total magnification
40X~1600X
Focusing range
15mm (fretting grid value 0.002mm)
pupil distance
55-75mm
Mechanical barrel length
160mm
Tungsten Halogen Bulb
6V/20VA
light source
220V electric light source
stage
125 * 120mm (moving range 70 * 30mm, vernier grid value 0.1mm)
condenser
Abbe Condenser Variable Bar and Color Filter
eyepiece
Wide-angle eyepiece WF10X, Huygens eyepiece H16X
Objective for eliminating color difference
4X,10X,40X(S), 100X(S)
lighting
LED light source or halogen lamp
Power
Electric light source
XSP-10CA
Microscope
The three-eyepiece tube supports 360-degree swirl/spin observation, is equipped with Abbe condensers and variable light bars, with a total magnification of 40X-1600X and a fretting focusing grid value of 0.002mm. It provides accurate sample observation capabilities.

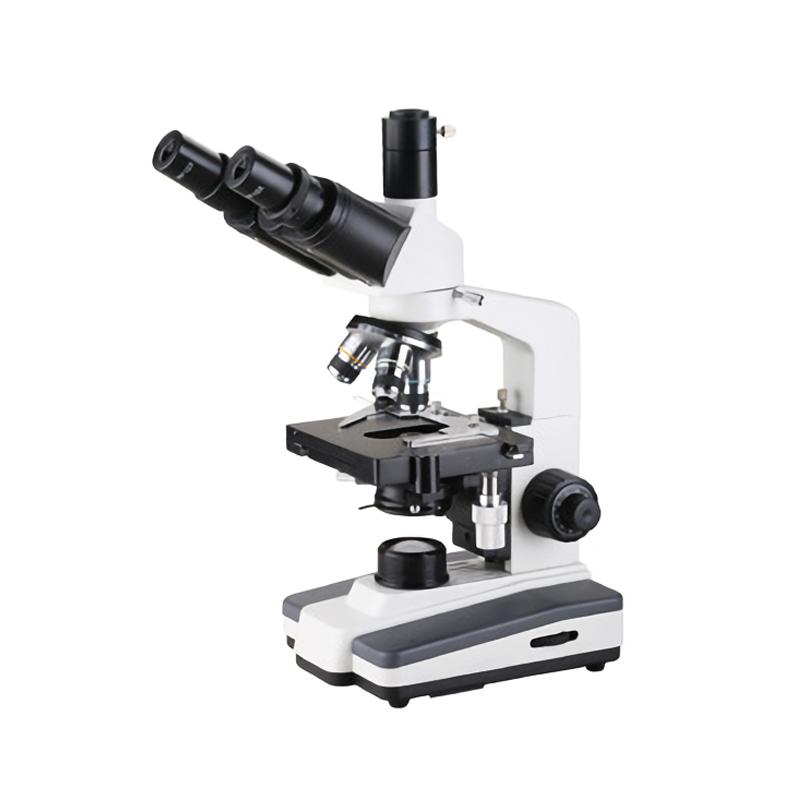

YOKE XSP-10CA Bio Microscope Trinocular Abbe Condenser LED Light source 1600X amplification Picture

Introduction

Yoke XSP-10CA biological microscope is a biological microscope with reasonable design, compact structure and light use. It is suitable for research experiments in biology, bacteriology, medicinal chemistry and other disciplines.

Pictures

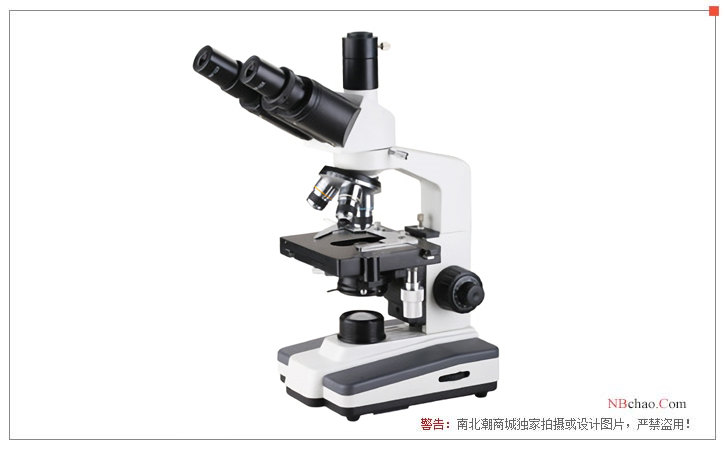

Showcase of Yoke XSP-10CA Trinocular Biological Microscope

Comparison of parameters of Yoke biological microscope

modelXSP-1CAXSP-2CAXSP-3CAXSP-8CAXSP-10CA
lens barrelMonocularbinocularMonocularbinocularThree eyes
Condenser and apertureDiaphragm turntable 6 holesAbbe Condenser Iris Diaphragm and FiltersAbbe Condenser Iris Diaphragm and FiltersAbbe Condenser Iris Diaphragm and FiltersAbbe Condenser Iris Diaphragm and Filters
eyepiece

16X

Wide-angle eyepiece WF10X, Huygens eyepiece H16XWide-angle eyepiece WF10X, Huygens eyepiece H16XWide-angle eyepiece WF10X, Huygens eyepiece H16XWide-angle eyepiece WF10X, Huygens eyepiece H16X
Achromatic Objectives4X, 10X, 40X4X,10X,40X(S), 100X(S)4X,10X,40X(S), 100X(S)4X,10X,40X(S), 100X(S)4X,10X,40X(S), 100X(S)
illuminationHalogen lamp 6V/20WHalogen lamp 6V/20WHalogen lamp 6V/20WHalogen lamp 6V/20WLED light source or halogen lamp
power supplynatural light sourcelight sourcelight sourcelight sourcelight source


FAQ
QXSP-10CA, the standard cable and software directly connected to the computer display?
A Need to add software
QCan This Biological Microscope Apply to SY/T0442?
A OK
