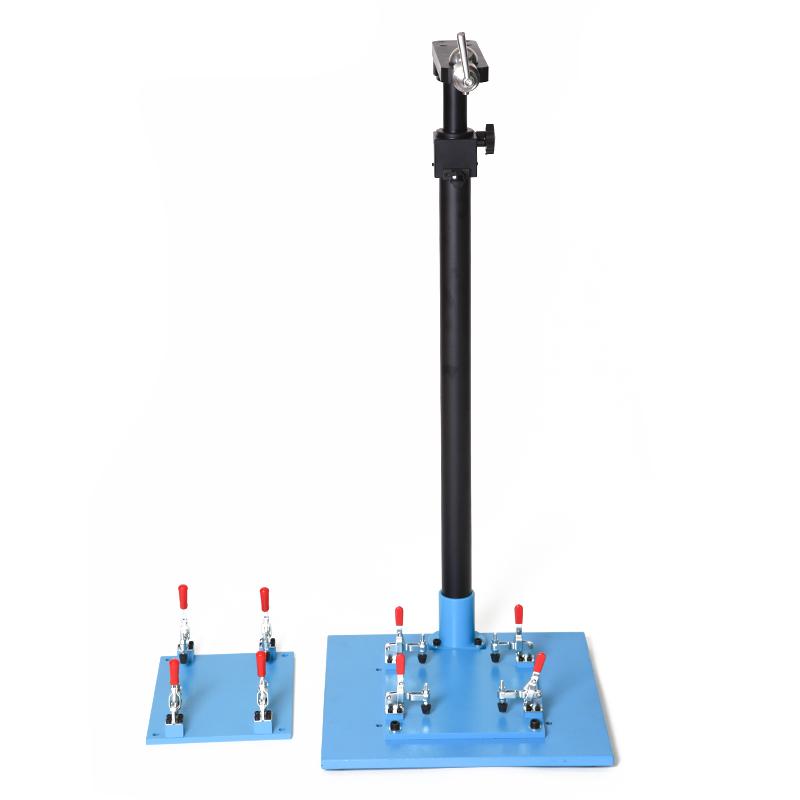

MODERNER MCQ-I Wood Impact Tester for measuring impact performance of wood-based panels, veneer wood-based panels, etc

MCQ-I

Wood Impact Device

Wood Impactor Overview

 The MCQ-I wood impactor is used to determine the impact resistance such as wood-based panels, veneered wood-based panels, and impregnated paper laminated wooden flooring . Applicable to GB/T18102-2000, GB/T17657-1999 and other standards.

Structure and Principle

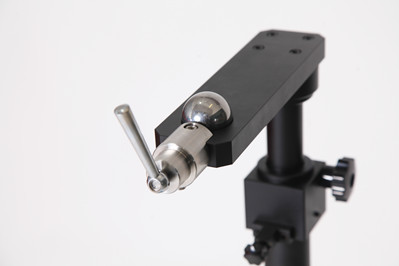

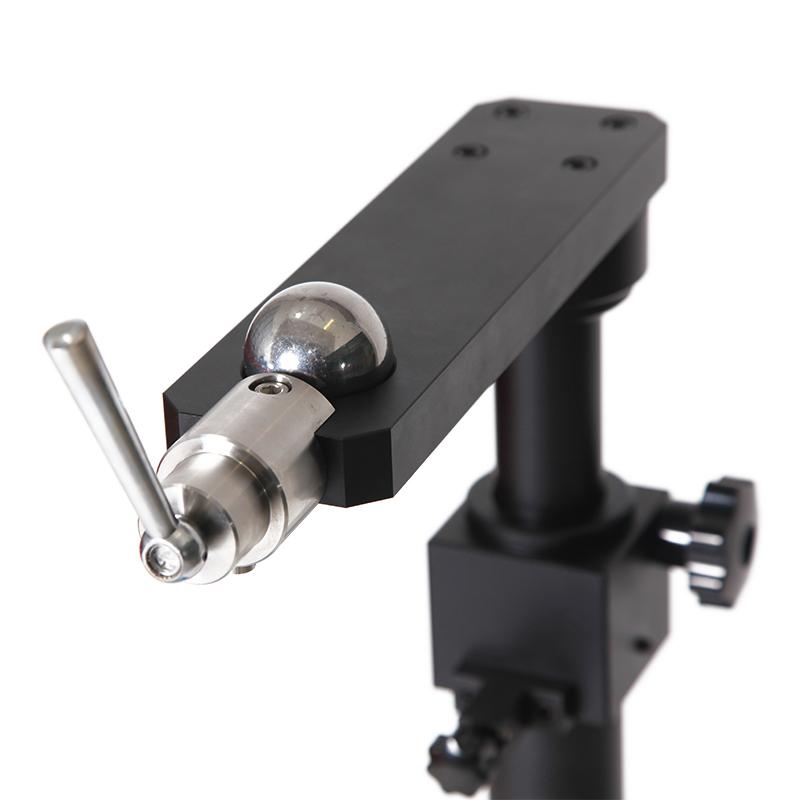

The steel ball bracket can be raised and lowered. According to the national standards, the bracket height is 1.75 meters and 1 meter. Gently turn the bracket handle, and the steel ball can fall freely.

Wood impactor operation steps

1. Adjust the height of the steel ball bracket to 1 meter or 1.75 meters as required.

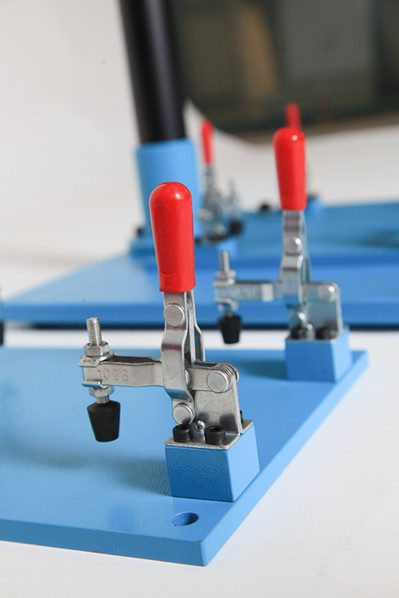

2. Clamp the sample to be tested on the sample plywood.

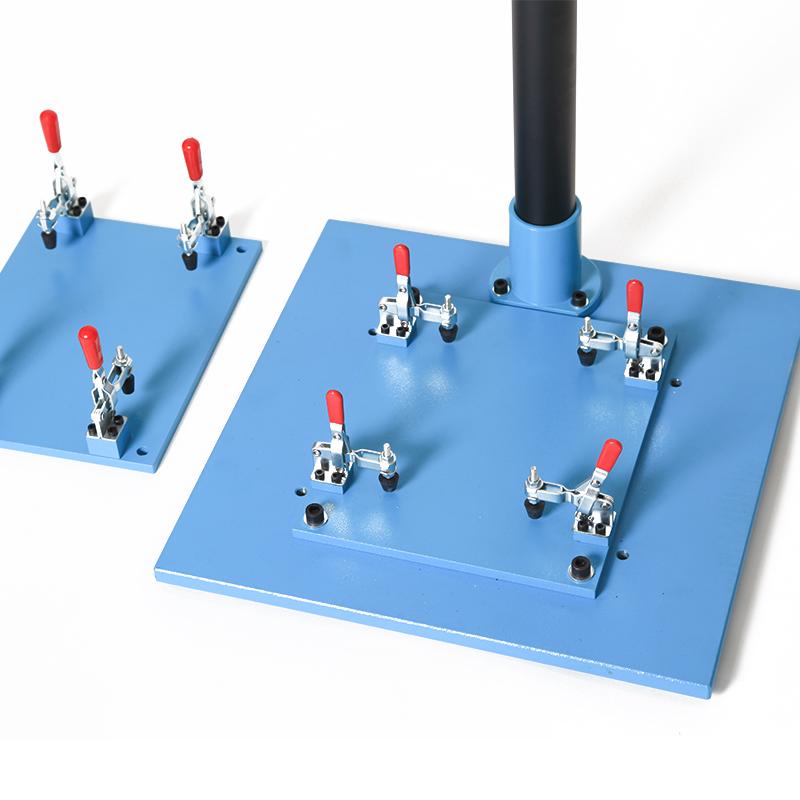

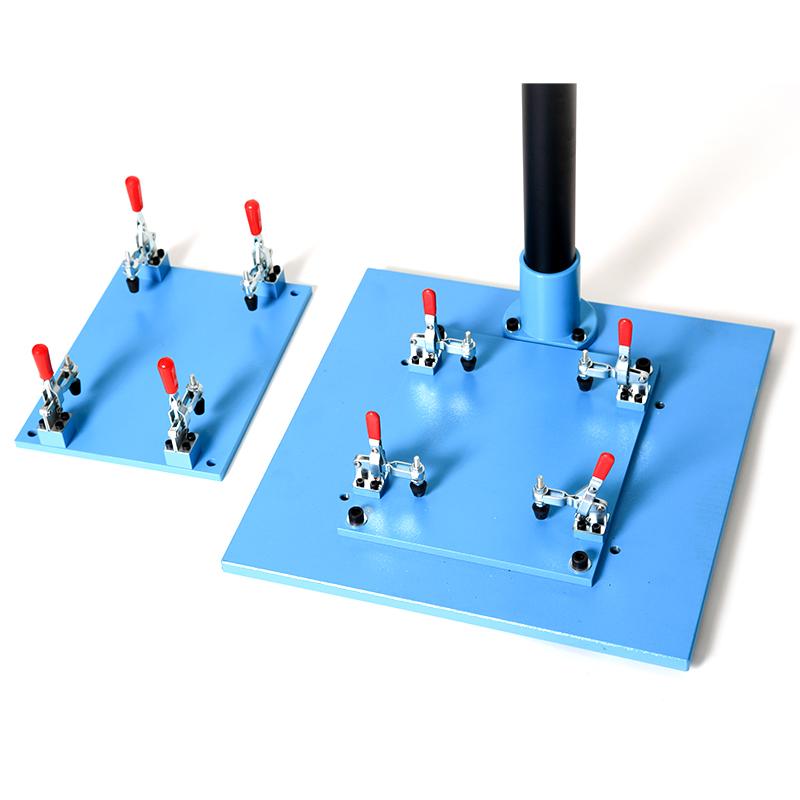

3. Place the clamping base plate of the sample on the large base plate of the impactor.

4. Turn the handle of the steel ball holder and hold the steel ball with your hands when it bounces off the sample plate after falling.

5. Measure the sample indentation as required.

Wood impactor technical parameters

1. Steel ball diameter: 42.8mm±0.2mm

2. Steel ball mass: 324g±5.0g

3. Overall dimensions: 450mm x 450mm x 1800mm

Precautions and maintenance

The steel balls should be placed on the bracket before testing.

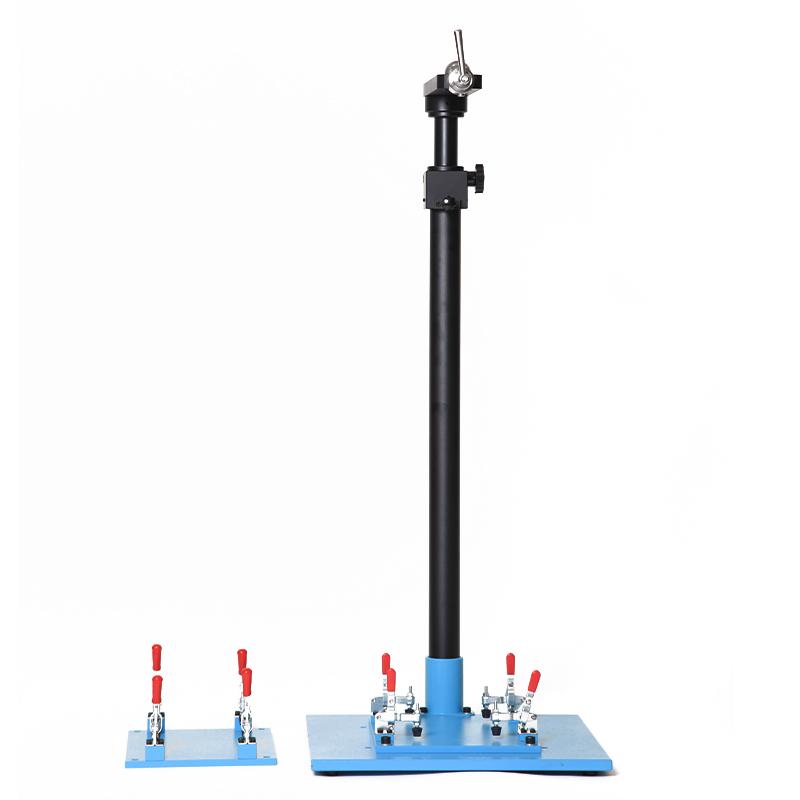

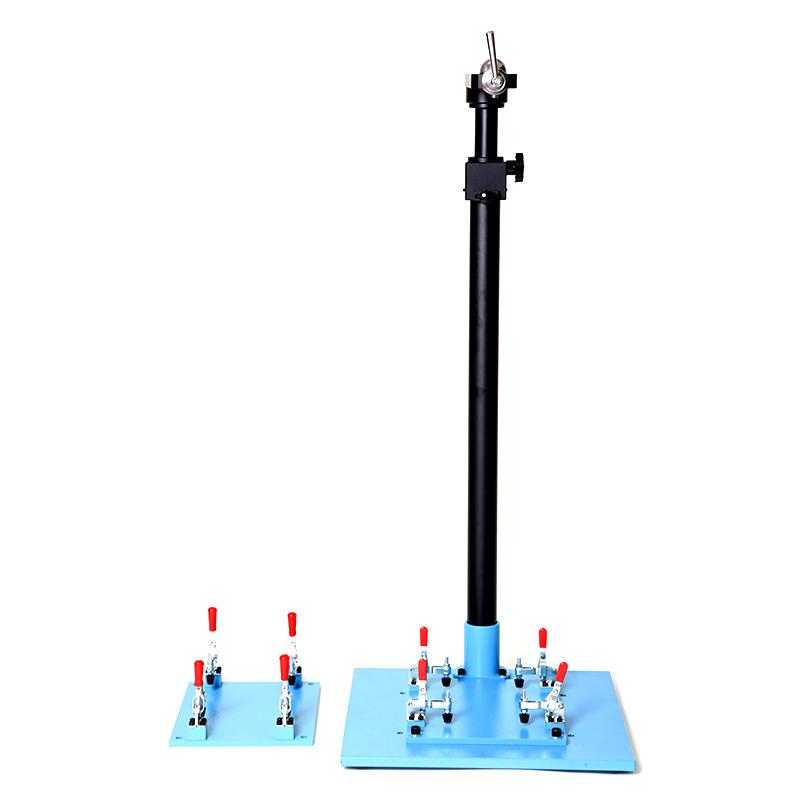

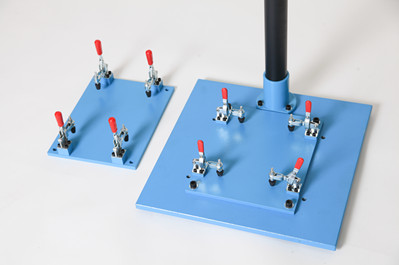

Product actual pictures

Packing list：Host x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
