TENGFEI TF-806 (250g) wear resistance Tester, load 250g

SE
The TENGFEI TF-806 (250g) wear resistance Tester has a load of 250g and an inner diameter of 3mm. The TF-806 (250g) wear resistance Tester is suitable for cloth, paper, Coating, plywood, leather, floor tiles, Glass, natural plastics, etc.
Certificate
Contact
Details SPEC CAT

TengFei TF-806（250g） Wear resistance testing machineSPEC

TengFei TF-806（250g） Wear resistance testing machineDetails

TengFei TF-806（250g） Wear resistance testing machinePacking list

SKU
NB007339
Rotation speed
60rpm
Power
1∮AC 220V，10A
Machine Weight
28Kg (excluding vacuum cleaner)
Machine size
45*35*42cm
Load
250
Center spacing between abrasion wheel and test plate
37~38mm
Abrasion wheel center spacing
63.5mm
Abrasion wheel
Φ2＂(Max.45mm)(W)1/2＂
Specimen size
Inner diameter (D) 3mm
TF-806（250g）
Wear resistance testing machine

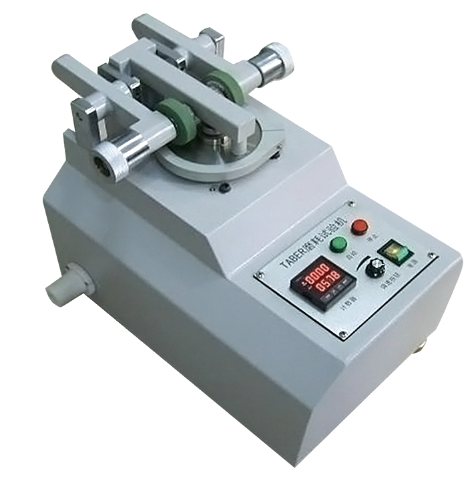

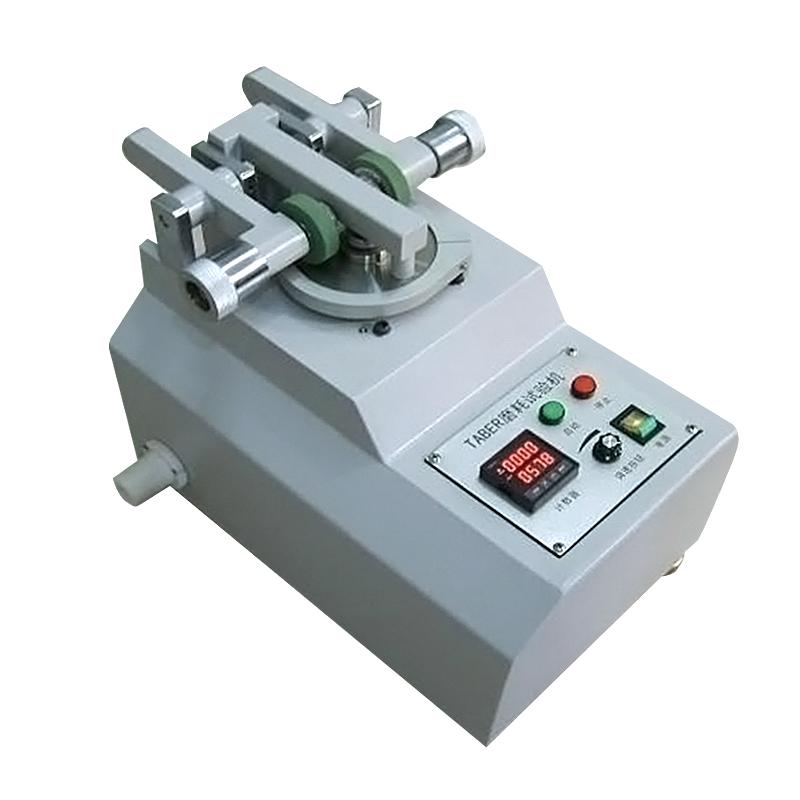

TENGFEI TF-806 (250g) wear resistance Tester, load 250g Picture

Introduction

Tenghui TF-806 (250g) wear resistance testing machine is suitable for cloth, paper, paint, plywood, leather, floor tiles, glass, natural plastics, etc.

The test method is that the rotating sample is pushed against a pair of wear wheels and a specified load is applied. When the sample rotates, the wear wheel is driven to wear the sample. The wear loss weight is the weight difference of the sample before and after the test.

plan

Standards compliant

DIN53754, 53799, 53109, 52347, TAPPI T476, ASTM D3884, ISO 54701 and other international standards.

Standard configuration

One vacuum cleaner and one pair of wear wheels


FAQ
QWhat is the speed of Tenghui TF-806 Wear testing machine?
A Hello, the speed is 60r/min.
QDoes this wear tester meet the ISO7784-3 standard?
A This wear-resistant testing machine is suitable for ISO7784-3. Please consult customer service for detailed application definition.
