TENGFEI TF-806 (500g) wear resistance Tester, load 500g

SE
TENGFEI TF-806 (500g) wear resistance testing machine is equipped with a load of 500g, using LED counters, TF-806 (500g) meets a variety of international standards, such as DIN53754, suitable for testing paper, leather and other materials abrasion resistance.
Certificate
Contact
Details SPEC CAT

TengFei TF-806（500g） Wear resistance testing machineSPEC

TengFei TF-806（500g） Wear resistance testing machineDetails

TengFei TF-806（500g） Wear resistance testing machinePacking list

SKU
NB007341
Rotation speed
60rpm
Counting method
LED 0~9999999
Power
1∮AC 220V，10A
Machine Weight
28Kg (excluding vacuum cleaner)
Machine size
45*35*42cm
Load
500
Center spacing between abrasion wheel and test plate
37~38mm
Abrasion wheel center spacing
63.5mm
Abrasion wheel
Φ2＂(Max.45mm)(W)1/2＂
Specimen size
Inner diameter (D) 3mm
TF-806（500g）
Wear resistance testing machine

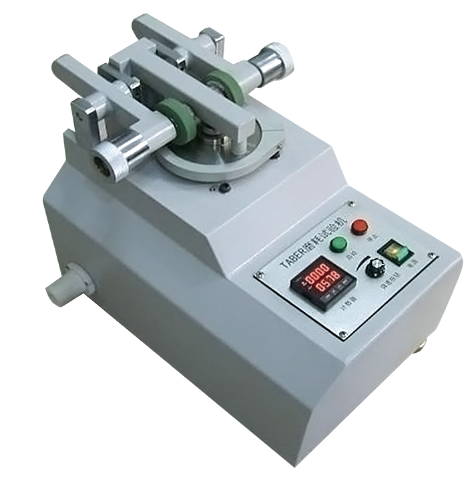

TENGFEI TF-806 (500g) wear resistance Tester, load 500g Picture

Introduction

Tenghui TF-806 (500g) wear resistance testing machine is suitable for cloth, paper, paint, plywood, leather, floor tiles, glass, natural plastics, etc.

The test method is that the rotating sample is pushed against a pair of wear wheels and a specified load is applied. When the sample rotates, the wear wheel is driven to wear the sample. The wear loss weight is the weight difference of the sample before and after the test.

plan

Standards compliant

DIN53754, 53799, 53109, 52347, TAPPI T476, ASTM D3884, ISO 54701 and other international standards.

Standard configuration

One vacuum cleaner and one pair of wear wheels


FAQ
QHow big is this Wear testing machine?
A Hello, the inner diameter is 3mm.
QDo you have the wear testing machine required by the ISO7784-3 standard?
A This TF-806 wear resistance tester will do.
