TENGFEI TF-806 (1000g) wear resistance testing machine, load 1000g

SE
The load of TENGFEI TF-806 (1000g) abrasion Tester is 1000g, the abrasion Tester is suitable for the inner diameter of the test piece is 3mm, TF-806 (1000g) abrasion Tester is suitable for cloth, paper, Coating, plywood, leather, floor tiles, Glass, natural plastics and other materials to test abrasion resistance.
Certificate
Contact
Details SPEC CAT

TengFei TF-806（1000g） Wear resistance testing machineSPEC

TengFei TF-806（1000g） Wear resistance testing machineDetails

TengFei TF-806（1000g） Wear resistance testing machinePacking list

SKU
NB007342
Rotation speed
60rpm
Counting method
LED 0~9999999
Load
1000
Abrasion wheel
Φ2＂(Max.45mm)(W)1/2＂
Abrasion wheel center spacing
63.5mm
Center spacing between abrasion wheel and test plate
37~38mm
Distance between the test piece and the suction port
3mm
Machine size
45*35*42cm
Weight
28Kg (excluding vacuum cleaner)
Power
1∮AC 220V，10A
TF-806（1000g）
Wear resistance testing machine

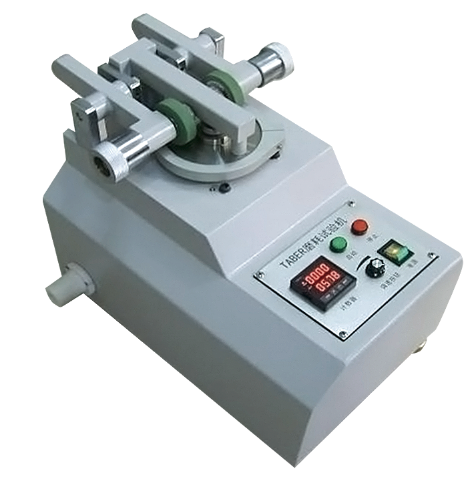

TENGFEI TF-806 (1000g) wear resistance testing machine, load 1000g Picture

Introduction

Tenghui TF-806 (1000g) abrasion resistance testing machine is suitable for cloth, paper, paint, plywood, leather, floor tiles, glass, natural plastic, etc.

The test method is that the rotating sample is pushed against a pair of wear wheels and a specified load is applied. When the sample rotates, the wear wheel is driven to wear the sample. The wear loss weight is the weight difference of the sample before and after the test.

plan

Standards compliant

DIN53754, 53799, 53109, 52347, TAPPI T476, ASTM D3884, ISO 54701 and other international standards.

Standard configuration

One vacuum cleaner and one pair of wear wheels


FAQ
QThis Tenghui Wear testing machine is equipped with a vacuum cleaner, right?
A Hello, yes.
QI want to do a test on the ISO7784-3 standard. Is this wear resistance tester okay?
A Sure
