TENGFEI TF-603 Electromagnetic vibration table vertical vibration direction, load up to 50kg

SE
The TENGFEI TF-603 vertical Electromagnetic vibration table has a maximum load of 50kg. It is an Electromagnetic vibration table with a vibration direction only in the vertical direction. TF-603 can be used to detect fake welding, virtual welding of electronic products, and the fastness of spare parts.
Model：
Certificate
Contact
Details SPEC CAT

TengFei TF-603 Electromagnetic vibration tableSPEC

TengFei TF-603 Electromagnetic vibration tableDetails

TengFei TF-603 Electromagnetic vibration tablePacking list

SKU
NB007347
Platform size
500*500mm
Test direction
vibration direction
Maximum test Weight
50KG
Frequency adjustment range
1~200HZ
Frequency adjustment range
1~200HZ
Sweep range
1~ 200HZ (arbitrarily set the upper limit Frequency, lower limit Frequency, Timer, the machine will sweep back and forth within the set frequency range: for example, set the upper limit Frequency 60HZ, lower limit Frequency 10HZ, set the time for 1min, the machine will sweep back and forth between 10-60HZ and 60-10HZ);
Amplitude
0~5mm
time control
In seconds (up to 99H99M)
Power
1.5KW
Power
220V±10%
Maximum current
5A
TF-603
Electromagnetic vibration table
TENGFEI TF-603 Electromagnetic vibration table vertical vibration direction, load up to 50kg Picture

Introduction

Tenghui TF-603 vertical electromagnetic vibration table is widely used in national defense, aviation, aerospace, communications, electronics, automobiles and motorcycles, home appliances and other industries. This type of equipment is suitable for detecting early faults, especially for detecting false and false soldering of electronic products, as well as the tightness of spare parts, the vibration resistance of LCDs, simulating actual Operating Conditions assessments and structural strength tests.

TF-603 vertical electromagnetic vibration table has a wide range of applications, wide application range, and effective and reliable test results.

Product Features

1. Using frequency converter + independently developed measurement and control system control to make the equipment work more stable and reliable;

2. The test table is made of aluminum plate, precision processed and ultra-quiet;

3. The electric control box adopts a vertical box with beautiful structure, good stability and easy operation;

4. Frequency sweep and fixed frequency, frequency modulation operation mode, time control, adapt to the testing requirements of different industries;

5. Strong anti-magnetic and anti-interference ability;

6. It has safe and reliable protection function;

7. Functions: FM, sweep, programmable, amplitude modulation, time control and many other functions.

plan

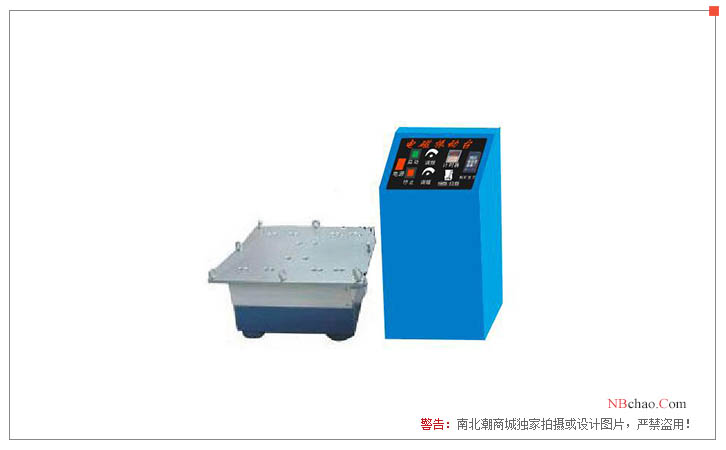

Tenghui TF-603 vertical electromagnetic vibration table display
