Online ph acidity meter AOLILONG PHG-2 industrial acidity meter

SE
PH Measurement range -4.00~18.00pH, PH Measurement accuracy +/- 0.01pH, resolution 0.01pH/1mV, Temperature Measurement range 0~99 ℃ (pH), Stability (zero drift) ≤ 0.02pH/24h; ≤ 3mV/24h
$239.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

AOLILONG PHG-2 Industrial online pH meterSPEC

AOLILONG PHG-2 Industrial online pH meterDetails

AOLILONG PHG-2 Industrial online pH meterPacking list

SKU
NB000735
PH range
-4.00~18.00pH
PH measurement Accuracy
±0.01pH
Resolution
0.01pH/1mV
Temperature Measurement Range
0~99℃（pH）
Stability (zero drift)
≤0.02pH/24h;≤3mV/24h
Dimensions
96*96mm
PH calibration approval range
Zero +/- 1.45 pH; slope +/- 30%
PH standard solution
4.01/6.86/9.18；4.00/7.00/10.01
ORP standard solution
Any standard solution
control range
0-14.00 pH、-1999+1250 mV
Output signal
4~ 20mA isolation protection output
Control output mode
ON/OFF relay output contact
The relay bears the load
Maximum AC 230V 5A; Maximum AC 115V 10A
Relay hysteresis
Can be adjusted freely
Current output load
The maximum allowable load is 500W.
Voltage insulation to ground
The minimum load is 500VDC.
Signal Input Impedance
≥1*1012W
Operating Voltage
230VAC±15%、50/60Hz
opening size
1/4DIN
mV measurement Accuracy
±0.1%F.S
mV range
1999~1500mV
PHG-2
Industrial online pH meter
PH Measurement range -4.00~18.00pH, PH Measurement accuracy +/- 0.01pH, resolution 0.01pH/1mV, Temperature Measurement range 0~99 ℃ (pH), Stability (zero drift) ≤ 0.02pH/24h; ≤ 3mV/24h

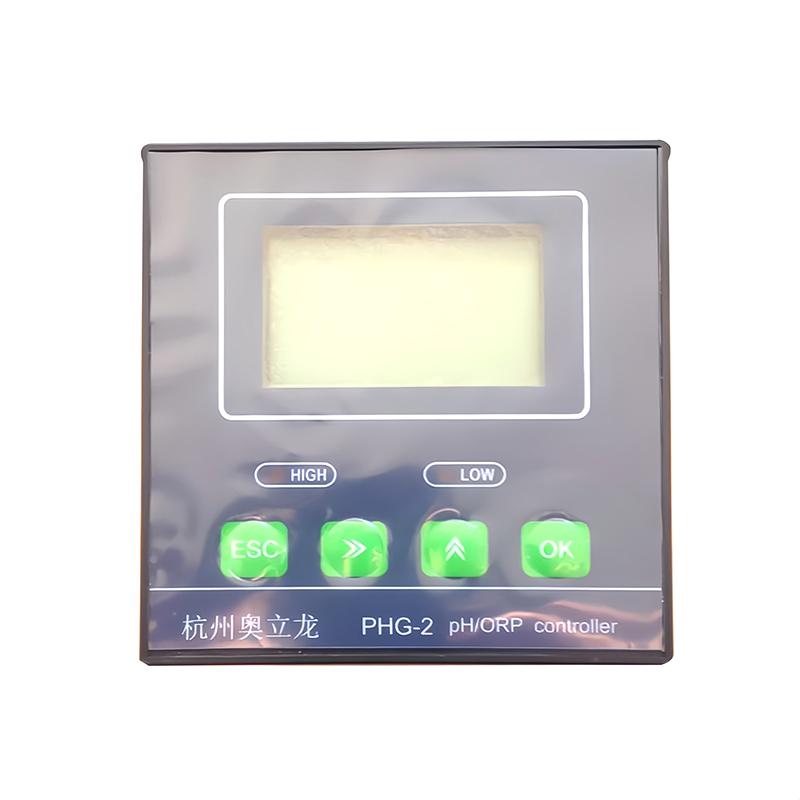

Online ph acidity meter AOLILONG PHG-2 industrial acidity meter Picture

Introduction to PHG-2 Industrial Acidity Meter

The PHG-2 online pH acidity meter is a dedicated acidity meter for the industrial field. It has built-in imported high-quality chips and components, which ensures that the PHG -2 industrial acidity meter has good stability and reliable measurement data during long-term testing. Its resolution is 0.01pH. The PHG-2 industrial acidity meter has dual functions of PH/ORP and can be freely converted to meet the needs of different users. Its automatic correction and temperature compensation functions greatly reduce operating procedures.

PHG-2 online pH acidity meter is suitable for acidity detection in industrial sewage pools. It is Orilon's main industrial acidity meter product.

Features and advantages

1. PHG-2 industrial acidity meter has built-in imported chips and components to ensure long-term stable and reliable operation of the instrument;

2. The photoelectric coupler isolates and protects the 4~20mA signal output, and the input signal and the output signal are independent of each other;

3. EEPROM type memory, no backup battery required, data will not be lost after power outage;

4. High-performance operational amplifier, ORP positive and negative values ​​are symmetrical, small temperature drift, stable and accurate;

5. Key sound prompt;

6. PHG-2 online pH meter has dual functions of pH/ORP, and the two functions can be easily converted to each other;

7. It has alarm display and control signal output functions;

8. With automatic correction and temperature compensation functions;

9. PHG-2 online pH meter has antimony electrode mode;

10. Suitable for indoor and panel installation.

PHG-2 industrial acidity meter display diagram

FAQ
QWhat industrial scenarios is this pH meter suitable for?
A PHG-2 is particularly suitable for wastewater monitoring in chemical, Eletroplating or printing and dyeing plants, because its isolation signal output and relay control can resist interference, and it can also automatically adjust the water quality in conjunction with dosing equipment.
QWhich one do you need to measure PH and ORP values at the same time?
A Select PHG-2 on the line, it can switch the PH/ORP dual mode with one key, the operational amplifier has high accuracy, and the positive and negative values are symmetrical when measuring the Oxidation-reduction potential, and the data is more accurate.
QWhat pH meters can be used for industrial wastewater treatment?
A PHG-2 industrial on-line pH meter is designed for industrial wastewater with automatic temperature compensation and antimony electrode mode, which can stably monitor the acid and alkalinity changes of sewage tanks.
QDo you need to calibrate the ph meter before each use?
A Twice a week.
QIs there an industrial online pH meter with GB/T11165 standard?
A This AOLILONG industrial online pH meter is fine!
