TENGFEI TF-103F (100kgf) Material Tensile Tester Capacity 100kgf

SE
TENGFEI TF-103F (100kgf) material Tensile Tester has a capacity of 100kgf, which is suitable for testing the physical properties of materials such as tensile\ shredding\ disbonding\ compressive\ fracture\ elongation. The maximum stroke of TF-103F is 800mm.
Certificate
Contact
Details SPEC CAT
Similar products

TengFei TF-103F（100kgf） Tensile TesterSPEC

TengFei TF-103F（100kgf） Tensile TesterDetails

TengFei TF-103F（100kgf） Tensile TesterPacking list

SKU
NB007359
Capacity selection
100kgf
Force unit
kgf、N、lbf
Load analysis
1/25,000
Load Accuracy
±1%
Maximum travel
800mm
Speed input method
Adjustable
Test speed range
5~ 500mm/min adjustable, fixed speed: 50, 100, 250, 300, 500mm/min
Displacement resolution
0.01
Frequency of data sampling
100HZ
monitor
LCD large screen display, can display test value, MAX Maximum, elongation, stretch length;
guard
With pull-off shutdown, overload protection function;
monitor
LCD Chinese display and high-precision load cell;
Print function
Printable Test Value, MAX Maximum, Average
motor
Frequency conversion speed regulation motor
Transmission mode
screw drive
Fixture configuration
Deliver a pair according to customer product requirements
displacement unit
mm/cm/in
TF-103F（100kgf）
Tensile Tester
TENGFEI TF-103F (100kgf) Material Tensile Tester Capacity 100kgf Picture

Introduction

Tenghui TF-103F (100kgf) material Tensile Testing Machine tests the physical properties of materials such as tensile, cracking, peeling, compression, fracture, and elongation. It adopts an economical measurement and control system and a high-definition blue LCD. Full Chinese display. A micro printer can be connected to print measurement results.

Applications

TF-103F (100kgf) material Tensile Testing Machine is widely used in various types of hardware, metal, rubber and plastics, shoe industry, leather, service textiles, wires and cables, terminals, plastic films and other materials.

plan

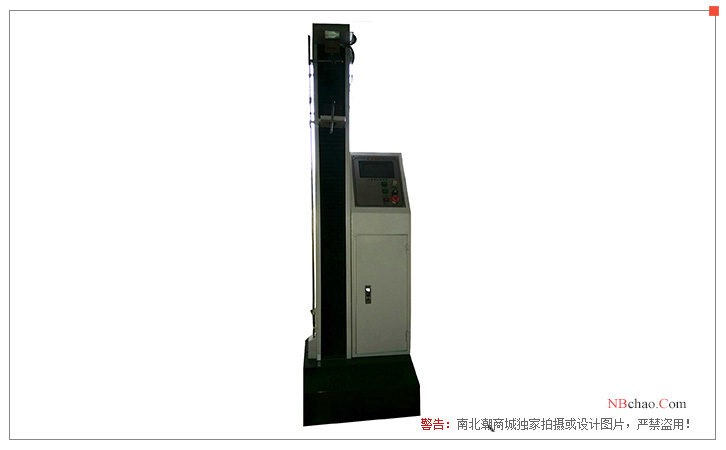

Tenghui TF-103F (100kgf) material Tensile Testing Machine display diagram

FAQ
QTensile machine can be applied to GB/T4074.10?
A OK
