TENGFEI TF-103F (200kgf) Tensile Tester capacity 200kgf

SE
TF-103F (200kgf) material Tensile Tester is TENGFEI production capacity of 200kgf material Tensile Tester, TF-103F (200kgf) load analysis is 1/25000, suitable for Hardware, rubber, leather and other industries.
Certificate
Contact
Details SPEC CAT

TengFei TF-103F（200kgf） Tensile TesterSPEC

TengFei TF-103F（200kgf） Tensile TesterDetails

TengFei TF-103F（200kgf） Tensile TesterPacking list

SKU
NB007360
Capacity selection
200kgf
Force unit
kgf、N、lbf
Load analysis
1/25,000
Load Accuracy
±1%
Maximum travel
800mm
Speed input method
Adjustable
Test speed range
5~ 500mm/min adjustable, fixed speed: 50, 100, 250, 300, 500mm/min
Displacement resolution
0.01
Frequency of data sampling
100HZ
monitor
LCD large screen display, can display test value, MAX Maximum, elongation, stretch length;
guard
With pull-off shutdown, overload protection function;
monitor
LCD Chinese display and high-precision load cell;
Print function
Printable Test Value, MAX Maximum, Average
motor
Frequency conversion speed regulation motor
Transmission mode
screw drive
Fixture configuration
Deliver a pair according to customer product requirements
displacement unit
mm/cm/in
TF-103F（200kgf）
Tensile Tester
TENGFEI TF-103F (200kgf) Tensile Tester capacity 200kgf Picture

Introduction

Tenghui TF-103F (200kgf) material Tensile Testing Machine tests various physical properties such as material tensile, cracking, peeling, compression resistance, fracture, and elongation. It adopts an economical measurement and control system and a high-definition blue LCD display. Full Chinese display. A micro printer can be connected to print measurement results.

Applications

TF-103F (200kgf) material Tensile Testing Machine is widely used in various types of hardware, metal, rubber and plastics, shoe industry, leather, service textiles, wires and cables, terminals, plastic films and other materials.

plan

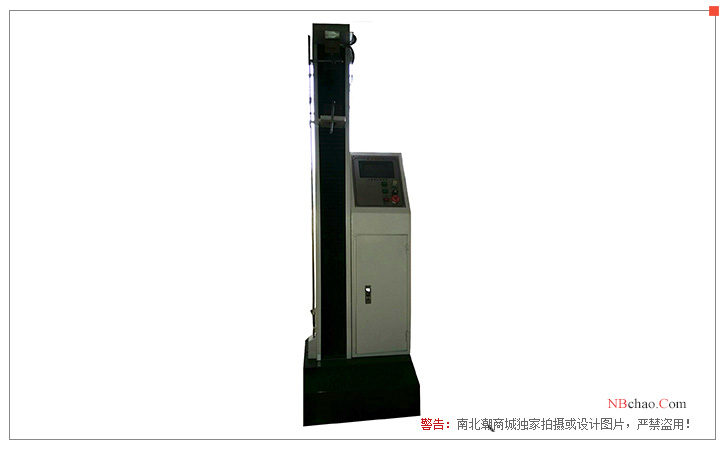

TF-103F (200kgf) material Tensile Testing Machine display diagram

FAQ
QTENGFEI TF-103F (200kgf) material Tensile machine can meet the GB/T4074.10 standard?
A Applicable, you can consult the customer service of the mall for details about the GB/T4074.10 standard.
