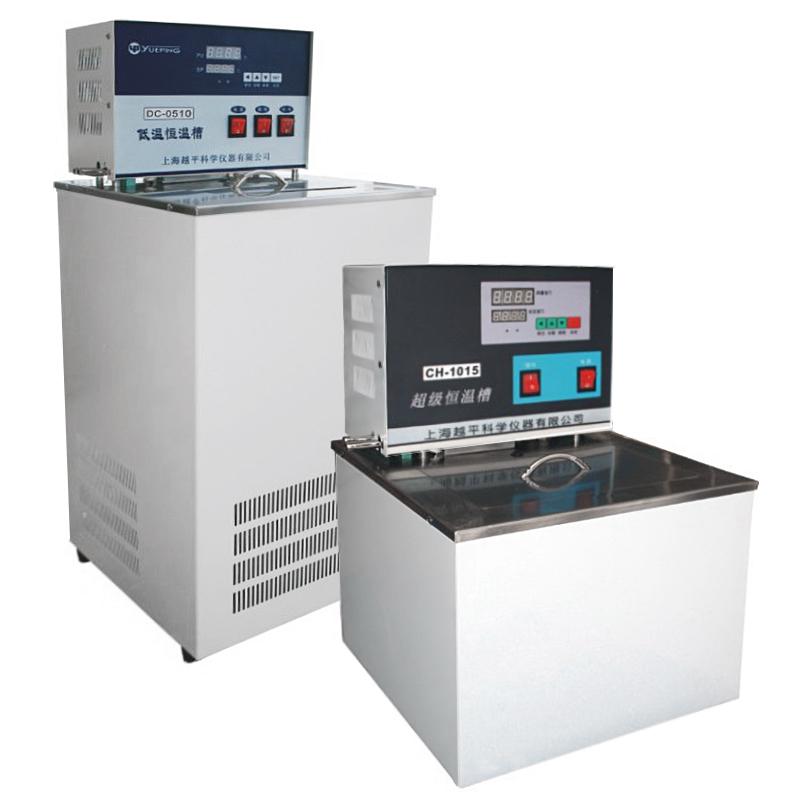

YUEPING CH-1015 Thermostatic Bath Temperature range: room temperature + 8~ 100 ℃ accuracy up to 0.1 degrees

CH-1015

Thermostatic Bath

Temperature range RT + 8~ 100 ℃, Temperature Fluctuation +/- 0.05 ℃, Temperature resolution 0.01 ℃, Working tank volume 15L, Tank opening dimensions 235 * 160 * 200mm, Working tank depth 200mm, Temperature control mode Microcomputer temperature control, Circulation mode Internal/external circulation, Total Power 1800W

Introduction

Yueping CH-1015 super constant temperature Water Bath is widely used in bioengineering, medicine, food, chemical industry, metallurgy, petroleum and other fields. To provide users with a high-precision, controlled, and uniform temperature constant temperature place, it is a satisfactory super constant temperature Water Tank for research institutes, colleges and universities, factory laboratories, quality inspection departments, etc. Single-chip microprocessor control, self-tuning PID adjustment, imported platinum resistance (Pt100) temperature measurement, high temperature control accuracy and small fluctuation; the super constant temperature Water Bath is stable and reliable, and the operation is convenient and safe.

Specifications

Features

1. Yueping CH-1015 super constant temperature Water Bath has a professional internal circulation/external circulation pump system. The internal circulation ensures uniform and constant temperature. Lead to establish the second constant temperature field;

2. LED dual windows respectively digitally display the temperature measurement value and temperature setting value, the digital display resolution is 0.01°C, and the touch buttons are easy to operate.

3. Measured value deviation correction function, the temperature accuracy can reach 0.1 degrees

4. It has an over-temperature protection function to prevent the instrument from being out of control; the upper limit over-temperature alarm can be set by yourself, and if it exceeds the range, it will alarm immediately;

5. The liner and table top are made of high-quality stainless steel, which is corrosion-resistant and easy to clean. The instrument works stably and reliably, and the operation is very convenient.

Optional

♦Optional RS232 or RS485 communication interface to realize data transmission for remote control.

♦Procedural temperature control system can be selected, Features are:

 Large-screen LCD display, software program control, editable time/temperature curve.

 Multi-stage programmable temperature and time programs can control the process of heating, constant temperature and cooling, and the heating speed and cooling speed can be automatically controlled according to user requirements.

 Up to 30 temperature/time periods can be programmed and stored, and each program can be set to run from 0 to 9999 minutes.

 A variety of parameter setting methods: convenient and fast input keys, shift keys and increase and decrease keys, set temperature/time period and other advanced control parameters or directly adjust the stored temperature/time setting program. Application field

1) Analytical instruments: spectrometer, mass spectrometer, viscometer, polarimeter, fermentation device, rotary evaporator, etc.

2) Vacuum acquisition and medical treatment: supporting use of molecular pumps, diffusion pumps, cooling blankets, X-ray machines, nuclear magnetic resonance accelerators, etc.

3) Industrial equipment and others: supporting use of laser equipment, vacuum coating equipment, biopharmaceuticals, mold machine tools, vacuum furnaces, welding machine reactors, etc.

Packing list：1 host, 1 power cord, 1 rubber tube, 1 cover plate, 1 manual, 1 certificate/warranty card

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
