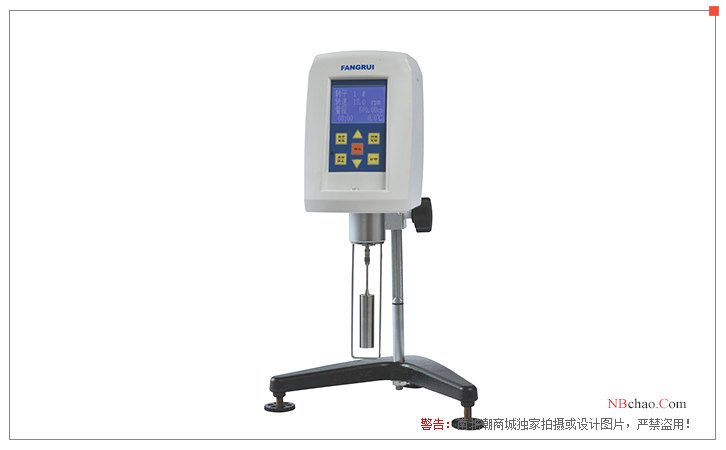

FANGRUI NDJ-8S Digital Viscometer 1mPa.S~ 2 million mPa.s High Viscosity
SE
NDJ-8S
-
HuiNuo NDJ-8S + 0 #Laboratory Rotational Viscometer Viscosity Detector 10~2 million CP$ 467.00SE -
HuiNuo NDJ-8S Digital display swirl/spin Viscometer Experimental Viscosity meter 2 million CP$ 556.00SE -
HUINUO NDJ-8S digital Rotational Viscometer Viscosimeter with L0 rotor$ 665.00SE -
HUINUO NDJ-8S Digital Rotational Viscometer with a small number of sample adapters$ 910.00SE -
HUINUO NDJ-8S Digital Rotational Viscometer with RTD temperature sensor$ 574.00SE
FangRui NDJ-8S Digital ViscometerSPEC
FangRui NDJ-8S Digital ViscometerDetails
FangRui NDJ-8S Digital ViscometerPacking list
- SKU
- NB007541
- Display
- Backlit liquid crystal display
- Measuring range
- 1~2000000mPa·s
- Rotor Specifications
- 1#、2#、3#、4#
- Rotor speed
- 0.3/0.6/1.5/3/6/12/30/60rpm
- Reproducibility
- ±0.5%F.S
- Measurement Accuracy
- ±1%
- Power
- 110~230V 50Hz/60Hz
- Data Interface
- One R232C communication interface, one temperature probe interface, and one power jack.
- Dimensions
- 300*300*450mm
- Weight
- 5kg
- Display information
- Automatic display of the selected rotor and rotational speed combination for measurement of the maximum Viscosity value
- Automatic scan function
- Viscosity of the test sample can automatically prompt the best combination of Rotor velocities
product description
FANGRUI NDJ-8S digital viscometer adopts the latest international microcomputer drive technology, imported stepping motor, LCD backlight display, program setting, automatic control, with stable speed, good accuracy, easy operation, automatic scanning, and error alarm and other practical functions; the screen directly displays information such as viscosity, speed, rotor number, percentage torque, the maximum viscosity that can be measured in the selected range, and the temperature of the liquid to be measured. The instrument uses standard silicone oil to measure and calibrate the full scale and linearity of each gear through the PC interface to ensure that the instrument has high sensitivity, high precision and high repeatability. The measured data is accurate and reliable, with excellent repeatability.
Features
1. The digital viscometer is designed and manufactured according to JJG-2005 standard
2. Large LCD liquid crystal display, with blue backlight function, intuitive and clear
Display information: rotor number, speed, range, viscosity, temperature, opening angle%
3. The ▲/▼ function keys are used to change the speed and select the rotor number
4. "Rotor selection" function key, prompting the rotor number, the cursor flashes
5. "Speed speed setting" function key, prompting the speed, the cursor flashes
6. "Start, Stop" function key to execute or terminate the current measurement program
7. "Auto scan" function key, for unknown samples to help users choose the appropriate rotor speed measurement
"OK" function key to confirm the currently selected information
Applications
NDJ-8S digital viscometer is widely used in oil, paint, coating, slurry, textile, food, medicine, adhesive, cosmetics and other fluid and semi-fluid production industries and scientific research units. With the advantages of accurate, fast, intuitive and simple measurement, the instrument has been selected by customers in various industries.
Pictures
optional
Ultra-low viscosity adapter (0# rotor)
temperature probe
Glass jacket cup
Constant temperature circulating bath
Standard silicone oil
software
