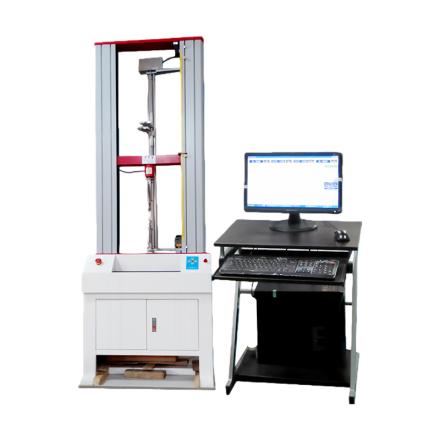

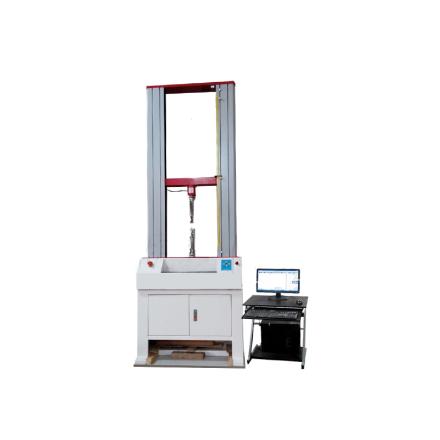

Specifications
| Load analysis | 1/250000 |
| Force Precision | <0.5% |
| Measurement range | 0.5~100%F.S |
| Sensor sensitivity | 1~40mV/V |
| Capacity selection | 200KG |
| Measurement and control software | QCTech test software under Windows 2000/XP platform |
| Precision indication | Better than +/- 0.5% |
| Test speed range | 0.01~500mm/min |
| effective travel | Maximum 800mm (including fixture) |
| Test space | Front and rear < unk >, left and right 420mm |
| Force unit | Measurement units including kgf, lbf, N, KN, KPa, Mpa, users can also customize the required units |
| Control mode | Full computer servo control (with a small operation box to facilitate fine-tuning of position and installation of samples) |
| shutdown mode | Upper and lower limit safety settings, emergency stop button, program power and elongation settings, test piece damage sensing |
| A set of QCTech measurement and Control system | It can display strength, elongation and test graphics at the same time (resolution 1024 × 768), and there are various test modes such as tensile, compression, bending, flexural, and disbonding to choose from |
| Dimensions | 76*44*190cm |
| Machine Weight | About 250kg |
| Power system | Imported general servo motor, large torque and low noise |
| Power supply Voltage | AC220V, 50/60Hz, 5A or specified |
Packing list
host X1, power cord X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
