LUKE LK500 high-precision Ultrasonic Thickness Gauge Thickness range 0.63~ 500mm

LUKE LK500 high-precision Ultrasonic Thickness Gauge is a small digitalization Thickness Gauge, the measurement thickness range is 0.63~ 500mm, LK500 backlit LCD display, display accuracy 0.01mm.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

LUKE LK500 Ultrasonic Thickness GaugeSPEC

LUKE LK500 Ultrasonic Thickness GaugeDetails

LUKE LK500 Ultrasonic Thickness GaugePacking list

SKU
NB007628
Measurement range
0.63~500mm
Probe Frequency
5MHz
Probe diameter
Φ6.35mm
Display resolution
0.01mm
unit system
mm/inch
Calibration method
Dialog Probe, Automatic calibration
Speed of sound
1250~10000m/s
Standards
DB 37/T1846-2011、JJF 1126-2004
Display
LCD display with backlight
Operating language
Chinese
Interface
USB
Protection level
6-Key waterproof and oil-proof keyboard
Environmental temperature
-20~50℃
Power Supply
3V (2 AA size alkaline batteries) continuous use time up to 200 hours, when the battery Power Supply is insufficient, the display will flash alarm until automatic shutdown
Host size
63.5*116*31.5mm
Weight
300g
scanning method
16 points per second measurement, can capture the thinnest point
error of indication
H ＋ +/- （ 0.5% 0.05) mm, H is the actual thickness of the measured object
Measurement mode
Dual Crystal Probe, Pulsed Echo
LK500
Ultrasonic Thickness Gauge

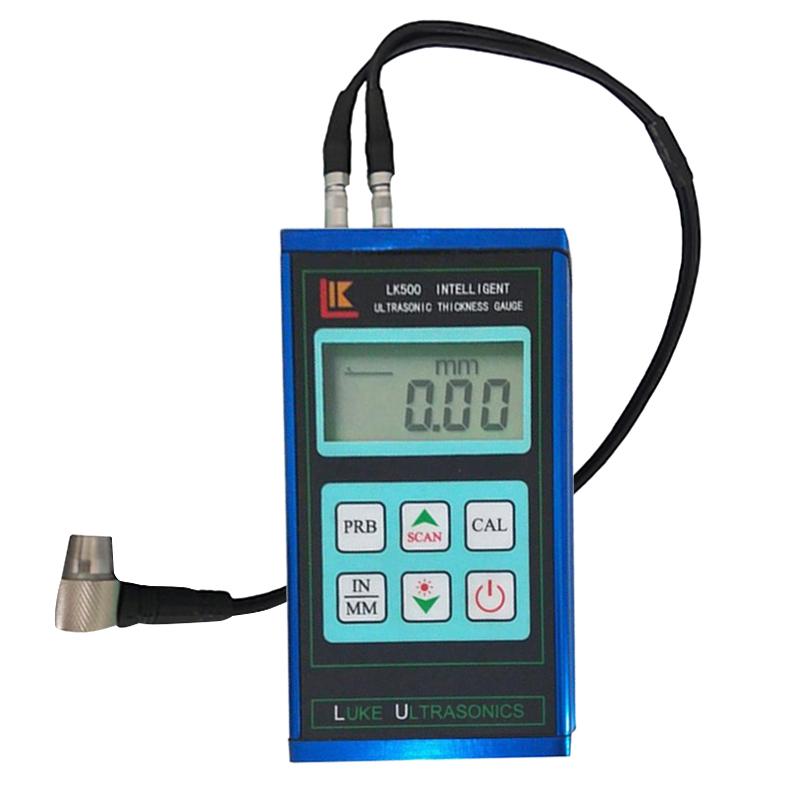

LUKE LK500 high-precision Ultrasonic Thickness Gauge Thickness range 0.63~ 500mm Picture

Introduction

LK500 ultrasonic Thickness Gauge is a small digital Thickness Gauge launched by our company in strict accordance with DB 37/T1846-2011 Thickness Gauge standard and JJF 1126-2004 "Ultrasonic Thickness Gauge Calibration Specification", which is assembled and produced by original imported components, which has the advantages of small size, low power consumption, strong penetration, drop resistance, vibration resistance, stable indication value, high detection accuracy (display accuracy ± 0.001 inch or ±0.01mm), etc., and is a satisfactory testing tool for non-destructive testing workers.

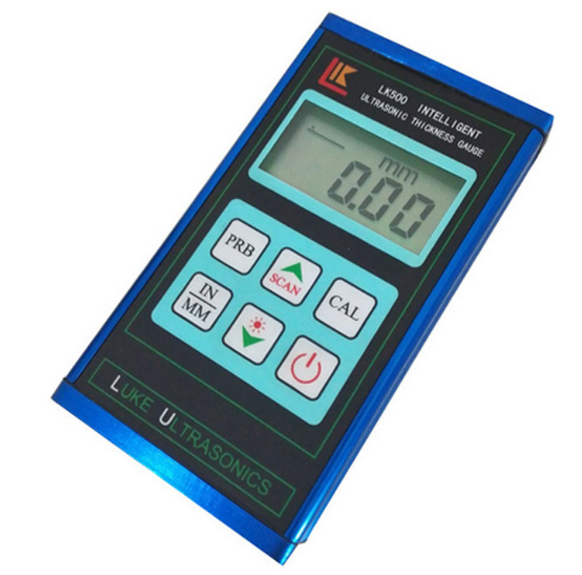

Luko Inspection LK500 high-precision ultrasonic Thickness Gauge

Commonly used probe selection

Model

frequency

Probe element diameter

Measuring range

illustrate

PT6.35-1

5.0MHz

Φ6.35mm

1.0mm~230.0mm(Steel)

Standard probes

PT4.76-1

7.5MHz

Φ4.76mm

0.63mm~50.0mm(Steel)

Small diameter probes

PT12.7-1

5MHz

Φ12.7mm

1.0 mm~500.0mm(Steel)

Extra-thick probe

PT12.7-3

5MHz

Φ12.7mm

3.0 mm~200.0mm(Steel)

high-temperature probe,

Up to 350°C

PT12.7-4

2.0MHz

Φ12.7mm

3.0mm~80.0mm(Cast Iron)

Cast iron probe

Note: High-temperature couplant is required when testing high-temperature surfaces.


FAQ
QWhat is the probe diameter of the LK500 high accuracy Ultrasonic Thickness Gauge?
A Hello, the diameter is 6.35mm.
QWhat is the minimum thickness of this LK500 Ultrasonic Thickness Gauge?
A The LK500 Ultrasonic Thickness Gauge has the thinnest thickness measurement of 0.63mm.
QDoes the LUKE Ultrasonic Thickness Gauge meet the GB/T11344 standard?
A The LK500 Ultrasonic Thickness Gauge can refer to
