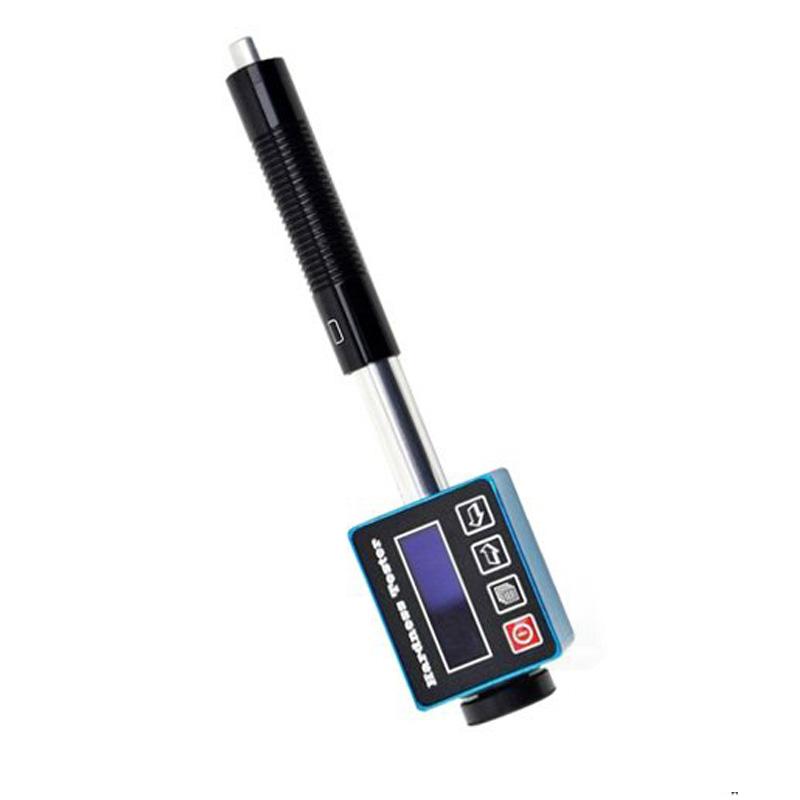

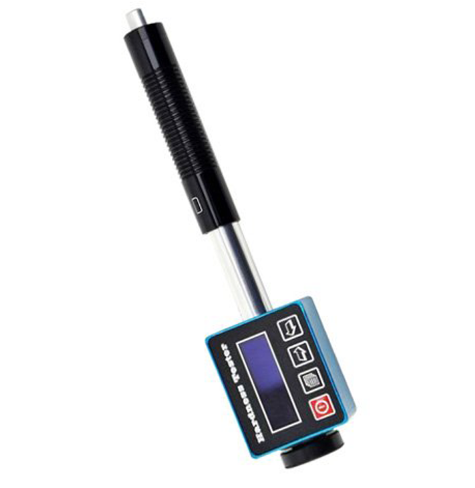

LUKE LK2000 Leeb Hardness Tester Measurement range 170~960HLD
LUKE LK2000 Leeb Hardness Tester Measurement range is 170~960HLD, 360 ° direction measurement, LK2000 Leeb Hardness Tester with indication software Adjustment, built-in high-performance lithium battery and charging control circuit.
Model：
LK-2000
LUKE LK-2000 Leeb Hardness TesterSPEC
LUKE LK-2000 Leeb Hardness TesterDetails
LUKE LK-2000 Leeb Hardness TesterPacking list
- SKU
- NB007652
- Measurement range
- 170~960HLD
- Measurement direction
- 360 ° (vertical down, diagonal down, horizontal, diagonal up, vertical up)
- Hardness system
- HL/HB/HBB/HBC/HBA/HV/HS
- Impact device
- D type/DL type/DC type/D + 15 type/C type
- Display
- OLED 128 × 36 Graphic Dot Matrix LCD
- Data storage
- 48~ 350 groups (Impact times 32~ 1)
- Upper and lower limit setting range
- Measurement range
- Power Supply
- 4.2V
- Charging time
- 1~ 2 hours
- Power Supply
- 5V/500mA
- Working time
- About 40 hours
- Communication interface
- USB
- Measurement material
- Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy, copper zinc alloy (brass), copper tin alloy (bronze), pure copper, forged steel
- Dimensions
- 145.5*32*26mm
- Weight
- About 160g
- Environmental temperature
- -10℃~50℃
- Allowable Relative Humidity
- ≤90％
LK-2000
Leeb Hardness Tester
Features
| display | Full Chinese display, menu-based operation, simple and convenient operation. OLED LCD screen, easy to use in any environment. |
|---|---|
| Data Communications | Mini USB port. |
| Data storage | It can store 48~350 groups (32~1 impact times) of single measurement value, average value, measurement date, impact direction, number of times, material, hardness and other information. |
| Alarm output | The upper and lower limits of hardness values can be set in advance, and automatic alarms will be given when the range is exceeded, which is convenient for users to test in batches. |
| calibration | It has the function of calibration of the indicator software. |
| battery | Built-in high-performance lithium battery and charging control circuit, with ultra-long working and standby time. The LCD displays the remaining battery power in real time. |
| Software | Equipped with host computer software, it is more powerful and meets the higher requirements of quality assurance activities and management. |
Standard configuration
| name | quantity |
|---|---|
| Instrument host | 1 unit |
| Small support rings | 1 pc |
| Nylon Brush(I) | 1 pc |
| High-value Leeb blocks | 1 piece |
| charger | 1 pc |
| Communication cables | 1 article |
| Data processing software (computer application) | 1 set |
FAQ
QDo you have the Leeb hardness tester required by the JB/T9378 standard?
A
This LK-2000 pen Leeb hardness tester will do.
