fluko FA30 High Shear Dispersion MulserSPEC
fluko FA30 High Shear Dispersion MulserDetails
fluko FA30 High Shear Dispersion MulserPacking list
- SKU
- NB007668
- Power
- 1050W
- Power Supply
- 220V，50/60Hz
- Processing Capacity
- 150~10000ml
- Max. Processing Viscosity
- 8000CP
- Speed range
- 3500~25000rpm
- Rotation speed display
- scale
- Rotation speed control
- stepless speed regulation
- Contact material
- SS316L
- Bushing material
- PTFE
- Work head specification
- 30G
- Environmental temperature
- 5~40℃
- Allowable Relative Humidity
- ≤80%
- Motor protection level
- IP20
- Work frame, base
- Standard
- Dimension
- 215*310*730mm
- Weight
- ~9.8kg
- Encasement
- carton
FA30

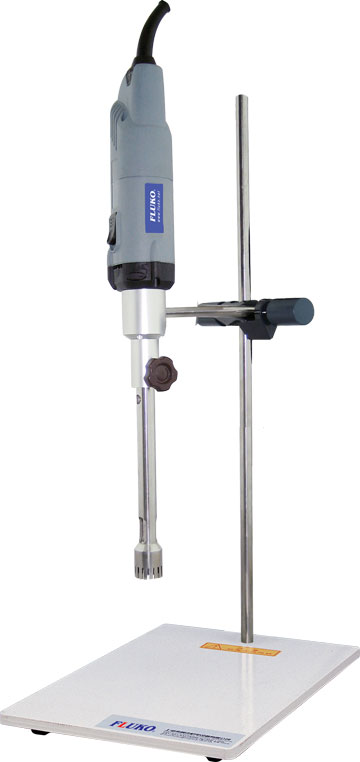

High Shear Dispersion Mulser
Introduction to the device
Equipped with a high-power, high-speed motor, the speed can reach up to 30,000rpm, the linear speed is up to 37m/s, and the maximum processing capacity is 10L.
Native features
Strong torque design, different working heads can be selected, and compatible with FA25 working heads, the whole machine module structure, easy to operate.
Applicable process
The high linear speed can enhance the processing of materials, so that the dispersion, homogenization, emulsification, and mixing speed are faster and the effect is better.
Diagram of the device
Device parameters
| power | 1050W |
| power supply | 220V，50/60Hz |
| Throughput (H2O) | 150-10000ml |
| Max. Processing Viscosity | 8000CP |
| Speed range | 10000-30000rpm |
| Rotational speed display | scale |
| Rotational speed control | Stepless |
| Contact material material | SS316L |
| Bushing material | PTFE |
| Standard head configuration | 30G |
| Allowable ambient temperature | 5-40℃ |
| Relative Humidity is allowed | 80% |
| Motor protection level | IP20 |
| Work frames, bases | Standard |
| Dimensions | 210×290×675 |
| weight | ~7.5kg |
| wrap |
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
