fluko F30Z Pipeline High Shear Dispersion MulserSPEC
fluko F30Z Pipeline High Shear Dispersion MulserDetails
fluko F30Z Pipeline High Shear Dispersion MulserPacking list
- SKU
- NB007674

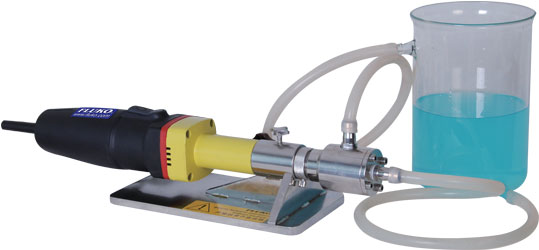

F30Z
Pipeline High Shear Dispersion Mulser

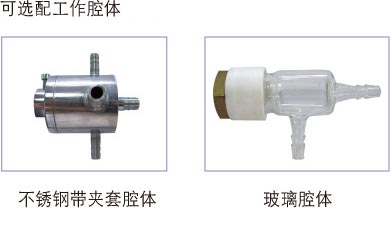

F30Z Pipeline High Shear Dispersing EmulsifierIt adopts a high-speed motor and can be equipped with a stainless steel jacketed working chamber or a glass working chamber. The unique stator and rotor structure produces super shear force, rapidly reduces the size of the droplets, and processes the material more finely and uniformly. It can be simulated in the laboratory for on-line Operating Conditions for cyclic or on-line continuous processing, with the characteristics of effective homogenization and no dispersion dead ends. Laboratory continuous flow processing, which can recycle materials to complete online dispersion, emulsification, homogenization and mixing.
Device parameters
| power | 1050W |
| power supply | 220V，50/60Hz |
| Flow Range (H2O) | 1-30L/min |
| Max. Processing Viscosity | 1000CP |
| Speed range | 10000-30000rpm |
| temperature | 120℃ |
| Rotational speed display | scale |
| Rotational speed control | Stepless |
| Contact material material | SS316L、FKM |
| Standard working chamber | Stainless steel jacketless working chamber |
| Standard work head | 25DG |
| Mechanical seal material | SiC, FKM, ceramic |
| Outer diameter of inlet and outlet | 14 (hose connection) |
| The type of operation | Online processing |
| Base Material | SS304 |
| Dimensions | 665×120×135 |
| weight | ~7kg |
