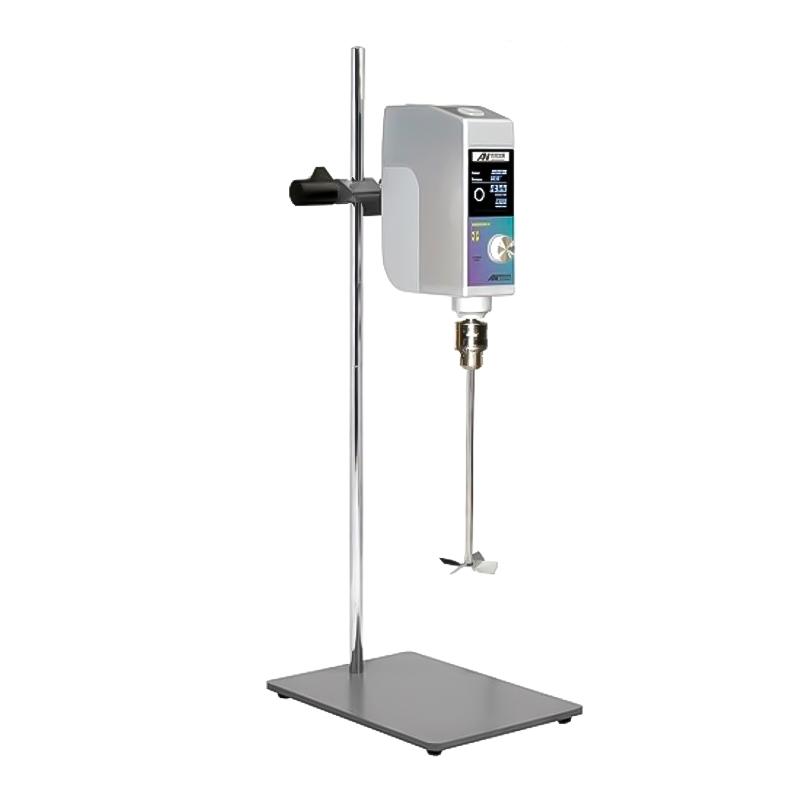

ANGNI AM400W-H Laboratory Electric Stirrer Four Blades Spiral Impeller Mixing Capacity 50L
SE
AM400W-H
-
CHIJIU H2025G Overhead Stirrer LCD display Stir power 250W$ 420.00SE -
CHIJIU H2015G Overhead Stirrer Stir power 150W with timing function$ 358.00SE -
CHIJIU D2015W Overhead Stirrer Stir 150W high viscosity liquid Stir$ 333.00SE -
Qiwei JB-300D laboratory Overhead Stirrer (digital display constant speed) 300W$ 318.00SE
AN AM400W-H Constant Speed StirrerSPEC
AN AM400W-H Constant Speed StirrerDetails
AN AM400W-H Constant Speed StirrerPacking list
- SKU
- NB007679
- Rated Voltage
- AC 100 ~ 240 V
- Rated Frequency
- 50/60Hz
- Input Power
- 615W
- output power
- 418W
- drive type
- Brushless DC Motor
- Max Torque
- 100N.cm
- Max Torque
- 300N.cm
- Operating Mode
- S1 (continuous)
- Operation control mode
- Combined control knob
- Speed range
- 30~2000rpm
- Speed regulation mode
- Promise
- Timer
- 1~6000min
- Rotation speed display
- LCD
- Overload protection
- Yes
- Rotation speed dynamic detection function
- Yes
- Rotation speed dynamic detection function
- Yes
- Rotation speed memory function
- Yes
- Temperature monitoring function
- Yes
- Impeller fixing method
- Quick chuck
- Stirringrod penetration diameter
- 10 mm
- Rotary collet clamping range
- 2~13mm
- Impeller type
- Four Blade Spiral Impeller
- Processing Capacity
- 60L
- maximum viscosity
- 100000mPa.s
- Ambient Temperature
- ≤40℃
- Allowable Relative Humidity
- ≤80%
- Protection class
- IP40
- Machine Dimensions
- 250*350*835mm
- Machine Weight
- 15.4kg
- Impeller material
- 3Cr13 stainless steel
- Impeller material
- SS 316L stainless steel
Introduction
Anny AM400W-H laboratory electric mixer is driven by a high-power and high-torque DC brushless motor, which is suitable for mixing low to medium and high viscosity liquids in the laboratory. The machine has a reasonable and compact structure, ultra-low noise, and maintenance-free. The operating state control adopts international professional digital circuit technology, and the speed is controlled by a microprocessor. reliable. The built-in automatic overload protection device ensures the safety of long-term high-load continuous operation of the experiment; the combined operating state control knob makes the experimental operation easier; the stirring speed can be adjusted steplessly to meet the correction of the stirring speed during the experiment; the TFT color screen displays digital settings And the actual output stirring speed and the process change trend of torque increase and decrease, to ensure the intuitive collection of experimental data; running Timer Control to ensure that the timeliness of the experiment is effective and controllable. Stable stirring speed, capable of stirring high-viscosity media and slurry.

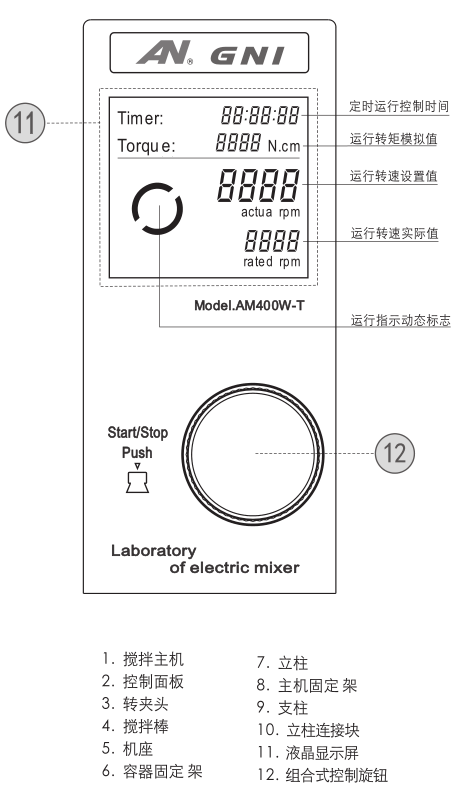

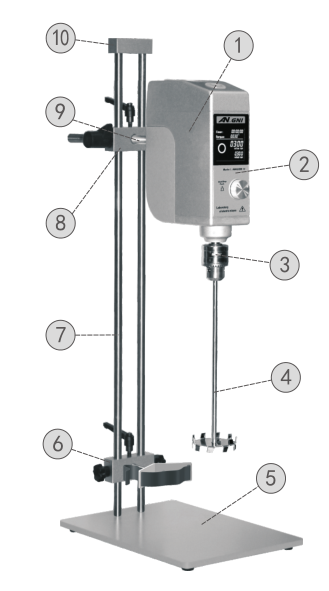

Product Structure Function Diagram
Pictures
