ANGNI AM500L-P High Power Electric Stirrer Spiral Impeller Stirring Capacity 100L
Long-lasting mechanical accuracy, stable running state, large capacity, high viscosity medium mixing, wide application range, convenient speed regulation, and convenient disassembly and operation of stirringrod.
Model：
AM500L-P
AN AM500L-P High Power Electric StirrerSPEC
AN AM500L-P High Power Electric StirrerDetails
AN AM500L-P High Power Electric StirrerPacking list
- SKU
- NB007687
- Rated Voltage
- AC220V
- Rated Frequency
- 50/60Hz
- Input Power
- 810W
- output power
- 500W
- Max Torque
- 191.2N.cm
- Operating Mode
- S1 (continuous)
- Control mode
- Speed control box
- Speed range
- 100~2500rpm
- Speed regulation mode
- stepless speed regulation
- Impeller fixing method
- Collet
- Max Torque
- 191N.cm
- Rotary collet clamping range
- Φ5~16mm
- Impeller type
- Spiral Impeller
- Processing Capacity
- 100L
- maximum viscosity
- 100000mPa·s
- Environmental temperature
- ≤40℃
- Allowable Relative Humidity
- ≤80%
- Dimensions
- 660*450*1200mm
- Machine Weight
- 30.0kg
AM500L-P
High Power Electric Stirrer
Long-lasting mechanical accuracy, stable running state, large capacity, high viscosity medium mixing, wide application range, convenient speed regulation, and convenient disassembly and operation of stirringrod.
Introduction
Ani AM500L-P high-power electric mixer is a laboratory electric mixer driven by a series micro motor, which has the characteristics of compact structure, simple and fast operation.AM500L-P high-power electric mixer is suitable for mixing and mixing low-to-medium and high-viscosity liquids in laboratories or pilot plants.
The main engine of AM500L-P high-power electric mixer adopts high-density die-cast aluminum alloy as the body, which is stable in operation, and the output terminal is equipped with a force increasing and variable speed mechanism to double the output torque. It has the characteristics of high output power, high torque, and convenient speed regulation.

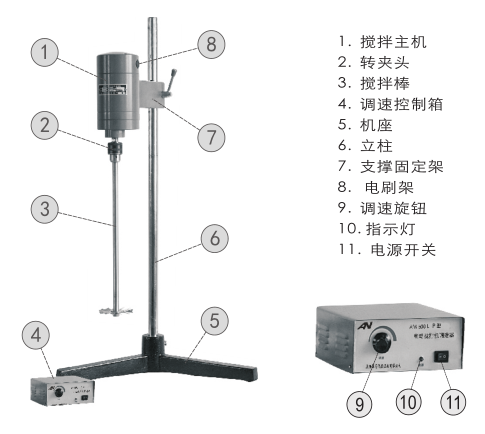

Product structure diagram

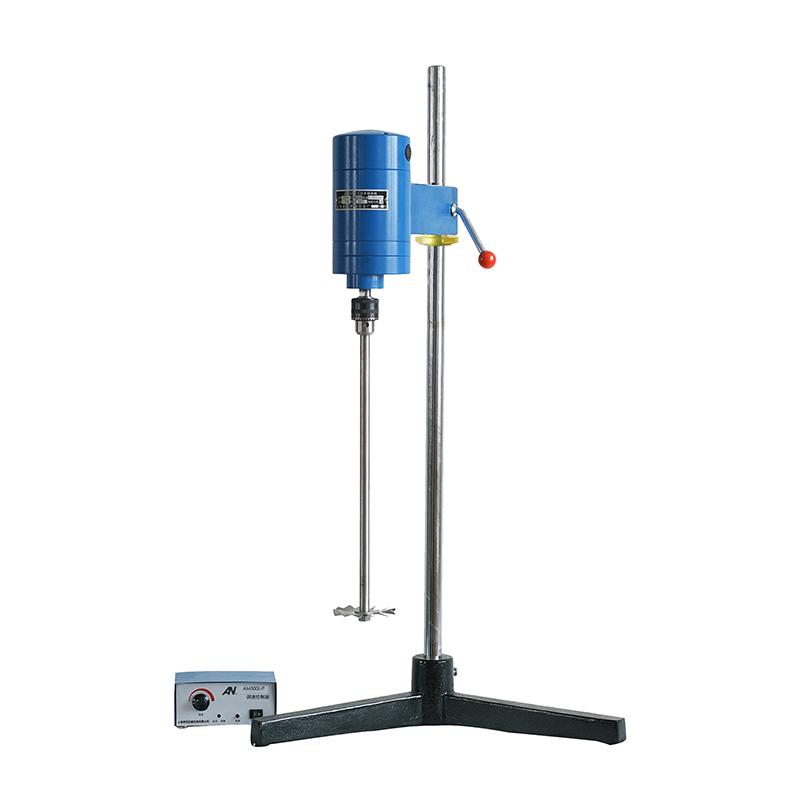

Product display diagram
FAQ
QDo you have the high-power electric Stirrer involved in GB/T11543?
A
The AM500L-P High Power Electric Stirrer will do
