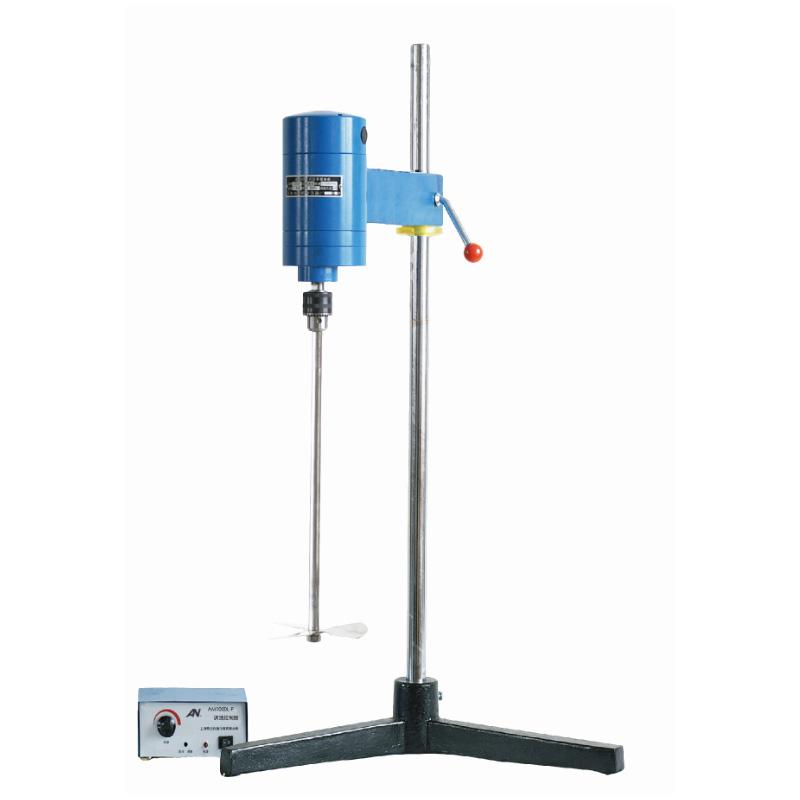

ANGNI AM1000L-P High Power Electric Stirrer 150L

AM1000L-P

High Power Electric Stirrer

Long-lasting mechanical accuracy, stable running state, large capacity, high viscosity medium mixing, wide application range, convenient speed regulation, and convenient disassembly and operation of stirringrod.

Introduction

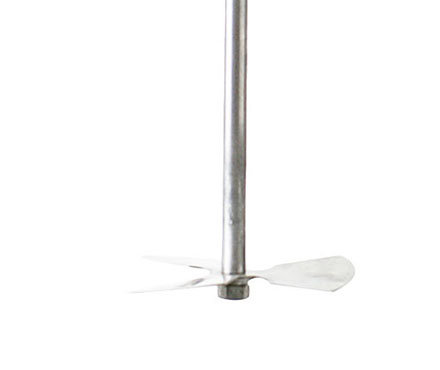

Oni AM1000L-P High Power Electric Mixer is a vertical laboratory mixer, which is controlled by an independent speed control box, and the speed range is 100~2500rpm. The stirring paddle of the AM1000L-P high-power electric mixer is a dissolving spiral stirring paddle, which is suitable for medium and high speed mixers, so that the mixing medium can produce radial flow from top to bottom, and the strong turbulence and high shear force formed can crush the particles in the liquid.

Features

1. It is driven by a compact series excitation micro motor, which is suitable for mixing and stirring of low-to-medium and high-viscosity liquids in laboratories or pilot plants.

2. The design structure is exquisite, which is composed of a drive motor, a torque increase mechanism and a speed control controller.

3. The mixing host is made of high-density die-casting aluminum alloy as the body, and the running state is stable.

4. The output terminal is equipped with a force increase and speed changing mechanism to multiply the output torque. It has high output power, high torque and convenient speed regulation.

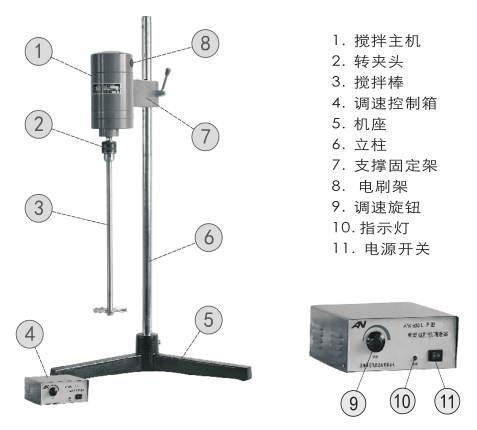

Product structure diagram

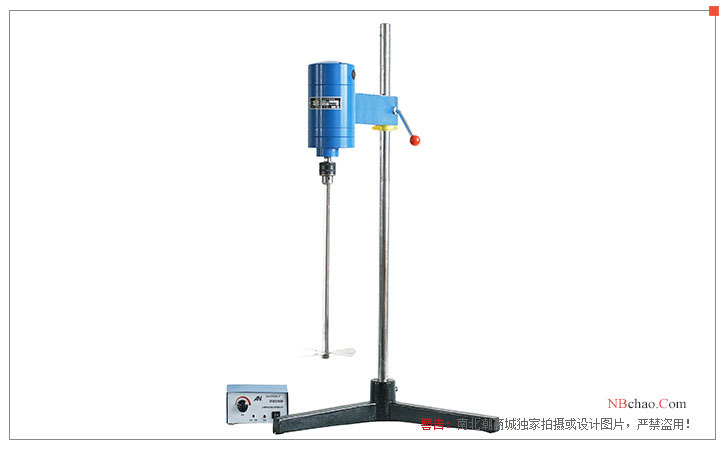

Product display diagram

Packing list：Stirrer x1, warranty card x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
