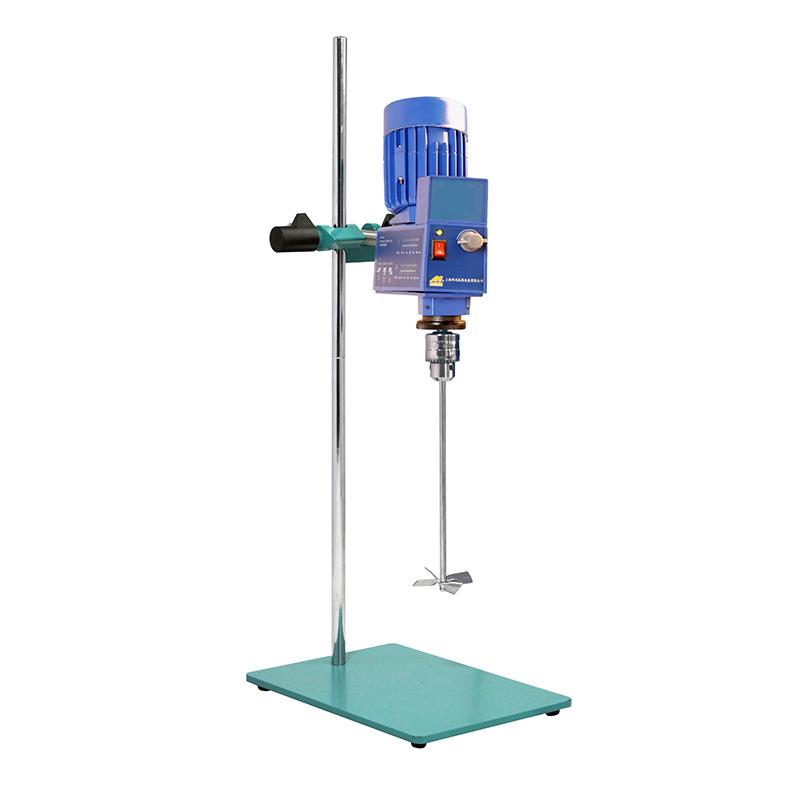

ANGNI AM120Z-P Cantilever Stirrer 50~20000ml
AM120Z-P
AN AM120Z-P Cantilever StirrerSPEC
AN AM120Z-P Cantilever StirrerDetails
AN AM120Z-P Cantilever StirrerPacking list
- SKU
- NB007690
- Rated Voltage
- AC220V
- Rated Frequency
- 50/60Hz
- Input Power
- 180W
- output power
- 120W
- Max Torque
- 52.0N.cm
- Operating Mode
- S1 (continuous)
- Control mode
- Control knob
- Speed range
- 60~500rpm/240~2000rpm
- Speed regulation mode
- Stepless, high and low second gear
- Impeller fixing method
- Stirringrod fixing method
- Max Torque
- 50N.cm
- Rotary collet clamping range
- Φ2~10mm
- Stirringrod penetration diameter
- 8mm
- Impeller type
- Four Blade Spiral Impeller
- Processing Capacity
- 50~20000ml
- maximum viscosity
- 100000mPa·s
- Environmental temperature
- ≤40℃
- Allowable Relative Humidity
- ≤80%
- Dimensions
- 215*310*720mm
- Machine Weight
- 10.0kg
Introduction

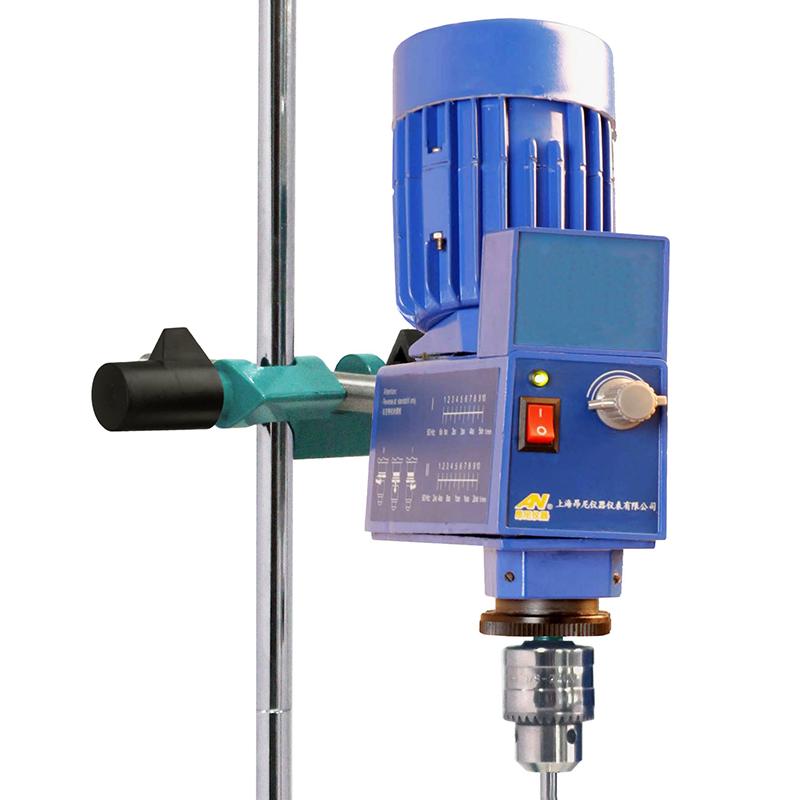

The AM120Z-P cantilever mixer is driven by a compact micro motor and is suitable for mixing low to medium and high viscosity liquids in the laboratory. The design structure of the machine is exquisite, and it is composed of a drive motor, a friction transmission mechanism and a speed control controller. The speed and torque of the output end are basically constant, and the speed of the high-low gears increases the torque exponentially, and the speed controller adopts IC speed detection full constant power speed regulation technology, which can immediately and effectively compensate for the speed changes caused by load changes and power supply Voltage fluctuations, and the screen displays the intuitive digital stirring speed to provide guarantee for data collection.
Product structure diagram

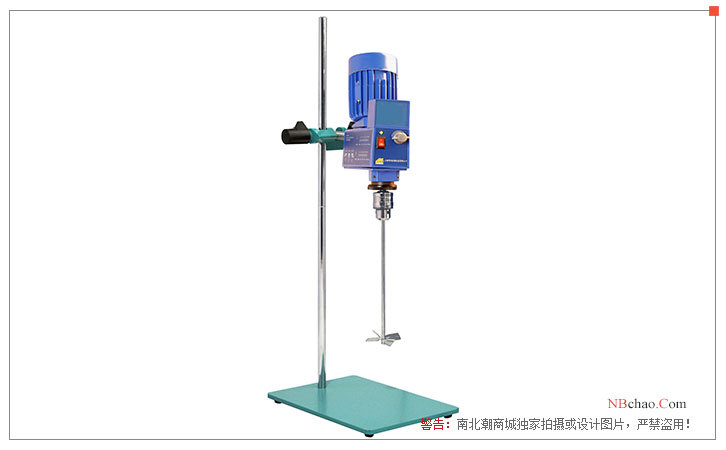

Product display diagram
